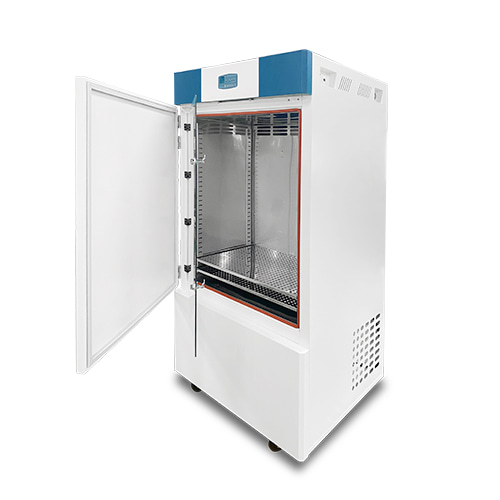

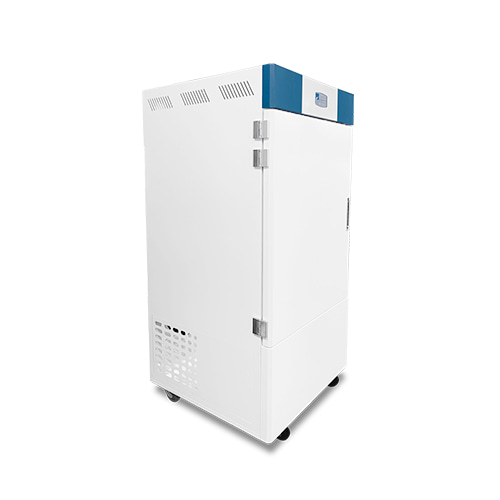

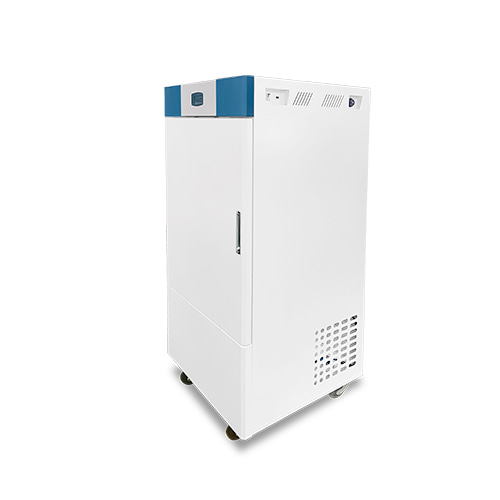

Refrigerated Incubator 480 Liter

-5℃ ~ 60℃

480(Liter)

- For incubation temperature 15ºC ~ 30ºC

- Durable structure against continuous operation

- Stainless Steel Internal Chamber with shelves
- Excellent temperature uniformity and accuracy

- Inner Glass Door installation

- Safety assurance with C.E conformity

We recommend adding our add that product

PRODUCT Option

  • Specification

  • Inquiry

  • This version of incubator comes with a high-powered refrigeration compressor. Its cooling temperature ranges from -5ºC to 60ºC. It is designed to conduct separated tests in high or low temperature. It is also capable of minimizing adjustment period from low to high or vice versa.

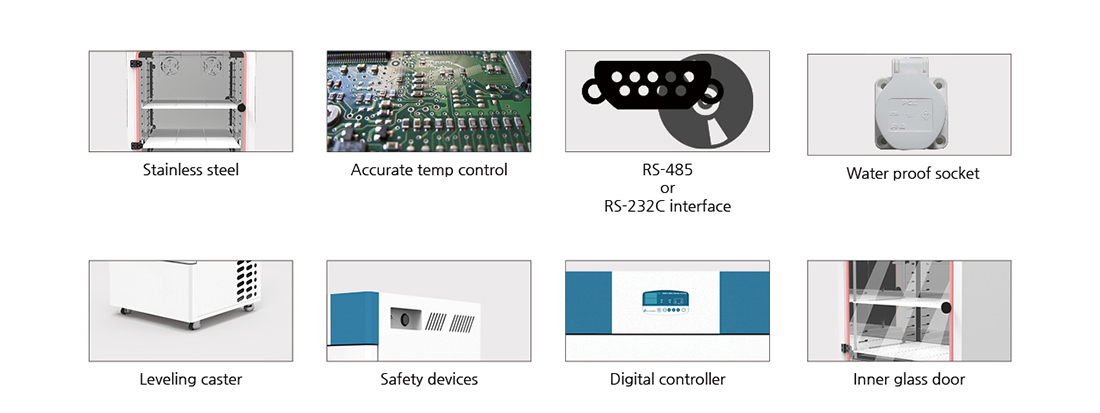

    - Stainless steel inner chamber

    - Accurate temp control

    - RS-485 or RS-232C interface

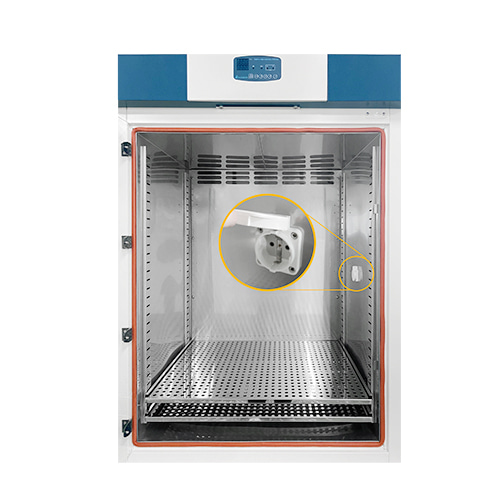

    - Water proof socket

    - Leveling caster

    - Safety devices

    - Digital controller

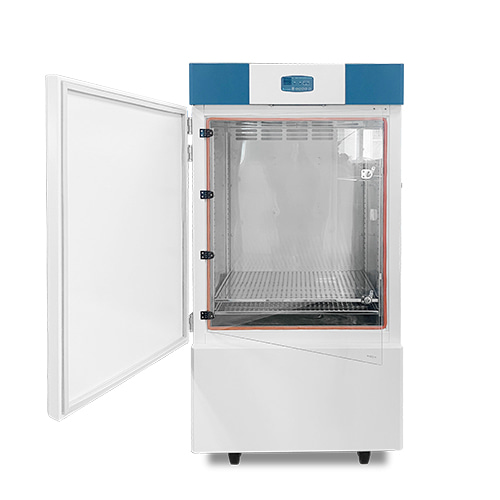

    - Inner glass door

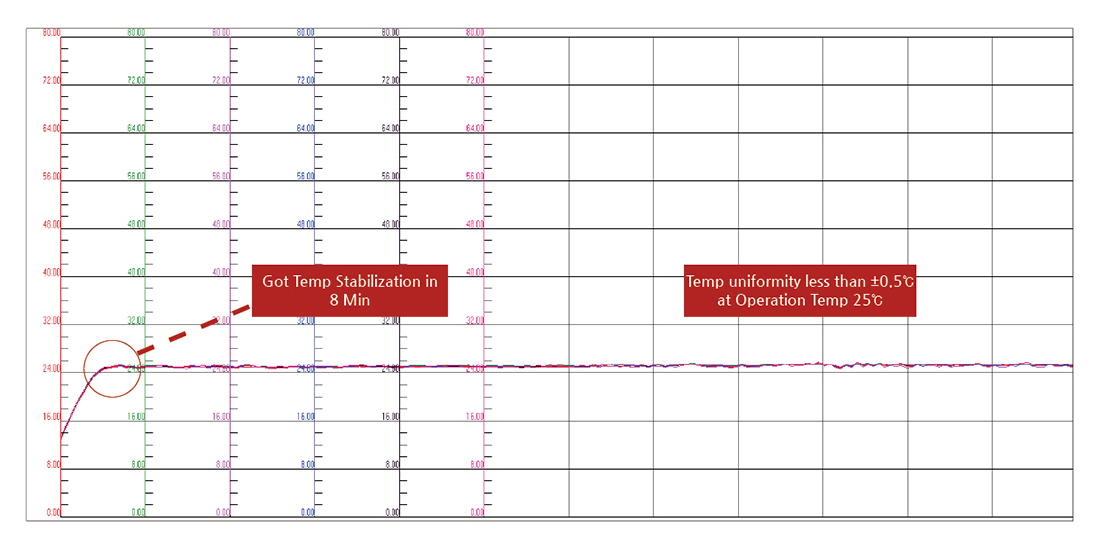

    Uniformity Sheet

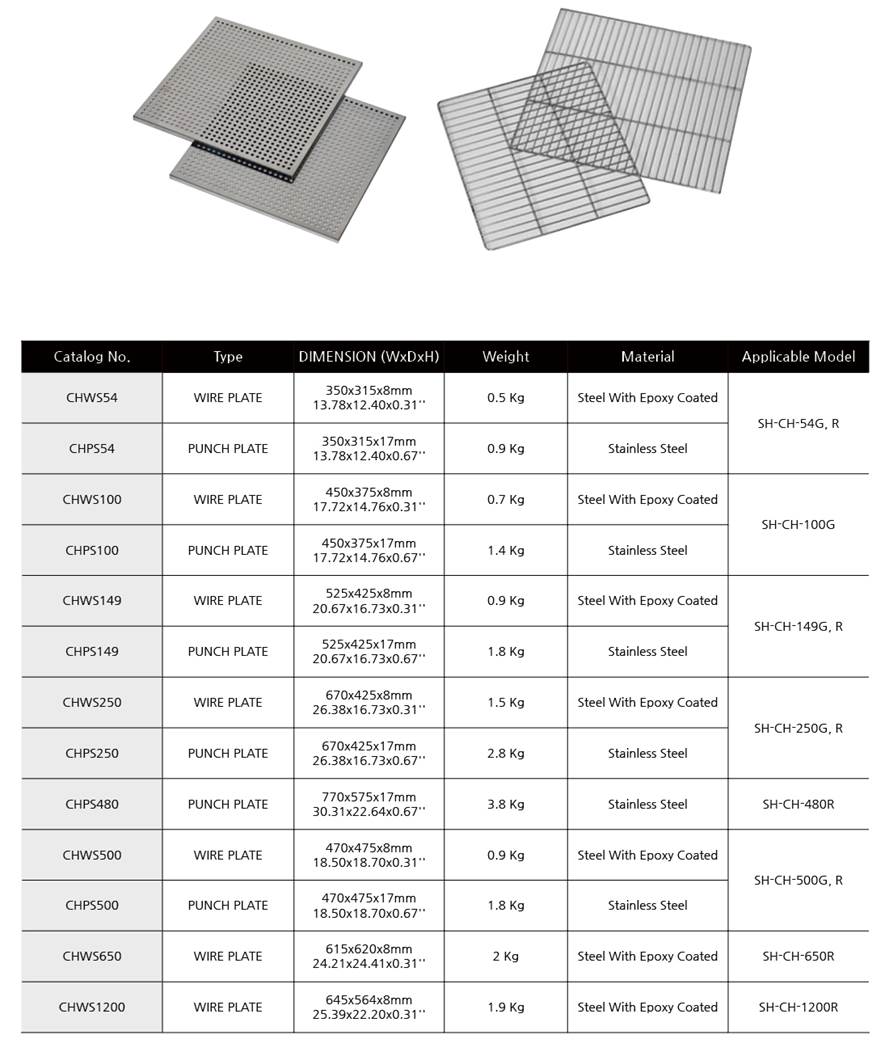

    Shelves Details

  •

    ModelSH-CH-480R
    Air Circulation type Forced
    Temp Range -5℃ to 60(23℉ to 140℉)

    Time Range

    00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Display
    Temp controlMicroprocessor PID controller
    Temp Accuracy & Stability±0.1

    Temp Uniformity

    ±0.5 at operation temp.25ºC

    Capacity 480L
    Dimension Internal
    (W×D×H)
    800×600×1000mm
    31.50x23.62x39.37''
    Dimension External
    (W×D×H)
    975x960x1935mm
    39.39x37.80x76.18''
    Weight195 kg
    Material InternalStainless Steel
    Material ExternalSteel Plate With Powder Heating Coated
    Shelves2 Supplied (31 Maximum)

    Water Proof Socket

    4A / 1EA
    Heater1800W
    Electrical Requirements
    230V,50/60Hz, 1Φ
    8.3 A
    Cat. No. 50Hz (60Hz)CH480R230-50
    (CH480R230-60)
