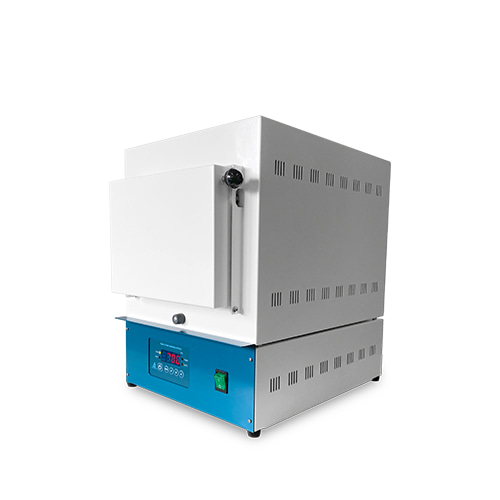

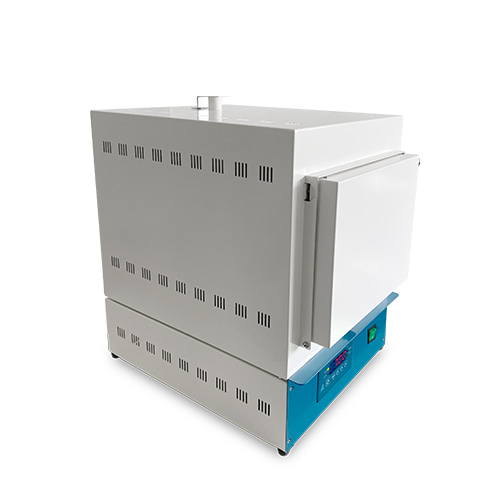

7MGE – 1050°C – SH Muffle Furnace

Max Temp 1050℃ Muffle furnace

SH-FU-7MGE(7L chamber)

  • Economic muffle furnace with flap door- General  material testing such as annealing, sintering, combustion, melting, densification and ash collection
  • Recommended ideal running temperature is below 850°C
  • Heating from 3 sides
  • Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
  • Reasonably priced for your budget saving

  • Specification

  • Documents

  • Inquiry

  • SH Scientific economic muffle furnace MGE goes up to max 1050°C and the ideal operating temperature is 850°C.
    If your testing is carried out under this temperature in any case, do not overpay for standard design. This economic muffle furnace is designed for your budget-saving.

    SH Scientific muffle furnace takes less than 40min to reach 800°C and we provide a variety of sizes, temperature programmable control models and various temperature range.

    SH Scientific muffle furnaces are ideal for wide range of thermal application for material treatment and experiment including ashing, calcination, reduction, oxidation, dissociation, sintering, pyrolysis, reaction, hardening and tempering, melting, thermocouple calibration, annealing, stress relieving and etc.

  • Model SH-FU-7MGE
    Max temperature 1050℃
    Continuous running temperature 850℃
    Chamber volume 7liters
    Controller Digital PID controller
    Sensor K type
    Heater 2.0kW
    Heating element KANTHAL A-1 with ceramic fiber
    Insulation
    Ceramic
    Power supply
    110V, 50/60Hz, 1p, 18A
    220V, 50/60Hz, 1p, 9A
    Net weight 28kg
    Chamber size 170x290x150mm
    External size 340x460x450mm
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
