Lab & pilot sclale Rotary Kiln 1200°C_Dia 120mm_3 zone

SH-FU-120RKG900

Continuous thermal processing - ideal for Biomass, Ceramics, Cement, advanced materials, battery materials and pyrolysis applications

  • 1200°C Rotary Kiln three heating zones
  • 1200°C Rotary Kiln three heating zones

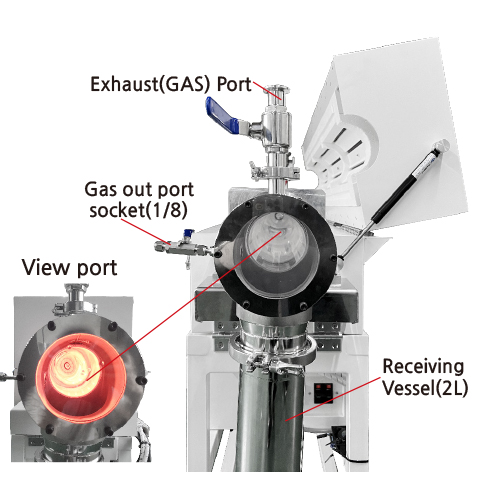

  • View port for thermal process
  • Heating Jackets of Tube ends

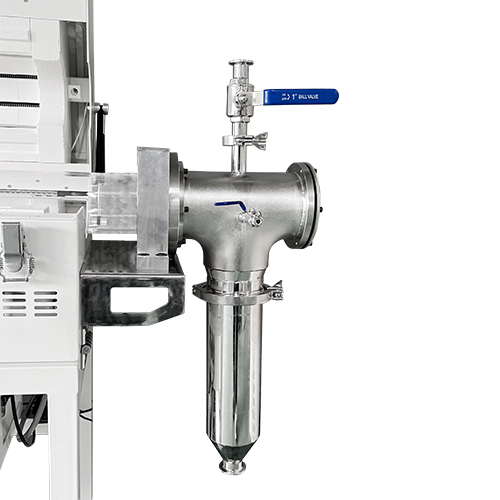

  • Receiving vessel
  • Receiving vessel with cooling system

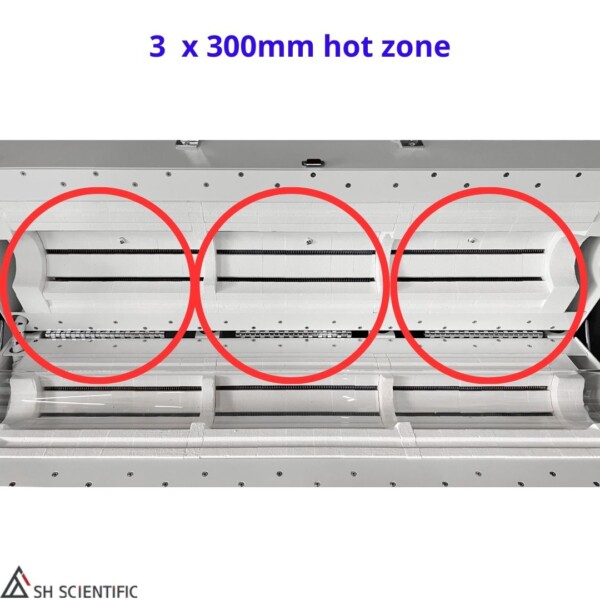

  • Three Heating Zone
  • Rotary Kiln with hinged door. Lab & pilot scale
  • 120mm (4.7″) tube diameter
  • 3 x 300mm (12″) hot zone, total 900mm (36″) hot zone
  • Monitoring view port (quartz window)
  • 1/4" inert gas in/out port & KF25 outgassing port
  • Easy to assemble, easy to replace tube and perfect vacuum sealing
  • Optional hammer vibrator for high viscosity organic material such as food waste and animal excretions
  • Optional heating jackets preventing tar condensation
  • Double housing and low surface temperature (29~30°C at 800°C)
  • Max temperature 1200°C. Recommended ideal running temperature is 1000°C or below.
  • Great durability thanks to Kanthal-A heating element
  • Suitable for gas exchange experiment
  • Light weight and prompt heat up thanks to ceramic insulation
  • Convenient design for sample loading
  • Built in programmable controller. 2 patterns and 15 segment/pattern. Total 30 segments
  • Built in over temp protector
  • SSR operation and built in programmable controller provides low noise operation and precise temp control (+/-1°C)




We recommend adding our add that product

PRODUCT Option

  • Specification

  • Documents

  • Inquiry

  • SH Scientific’s rotary kilns are the pinnacle of continuous pyrolysis technology.

    These laboratory-scale rotary kilns suit a wide range of applications. Every device is engineered in South Korea by our in-house team, offering world-class efficiency and extensive customization at competitive prices.
    High Performance for Wide-Ranging Uses
    Right now, customers use our Rotary Kiln in scenarios as varied as:

    • Food waste, biochar, and biomass processing
    • Battery waste recycling
    • High-purity battery material processing
    • High-capacity silicone carbon production
    • Hydrogen fuel battery production
    • General oxidation, reduction, and biomass carbonization

    Innovative Design for Uniform Processing
    Feed powder-type materials continuously with controlled speed for uniform heat treatment under various atmospheres (oxidation and reduction). Our design supports both batch and continuous processes, with the dwelling time adjustable through the incline angle, tube rotation speed, and material flow/agitation properties.

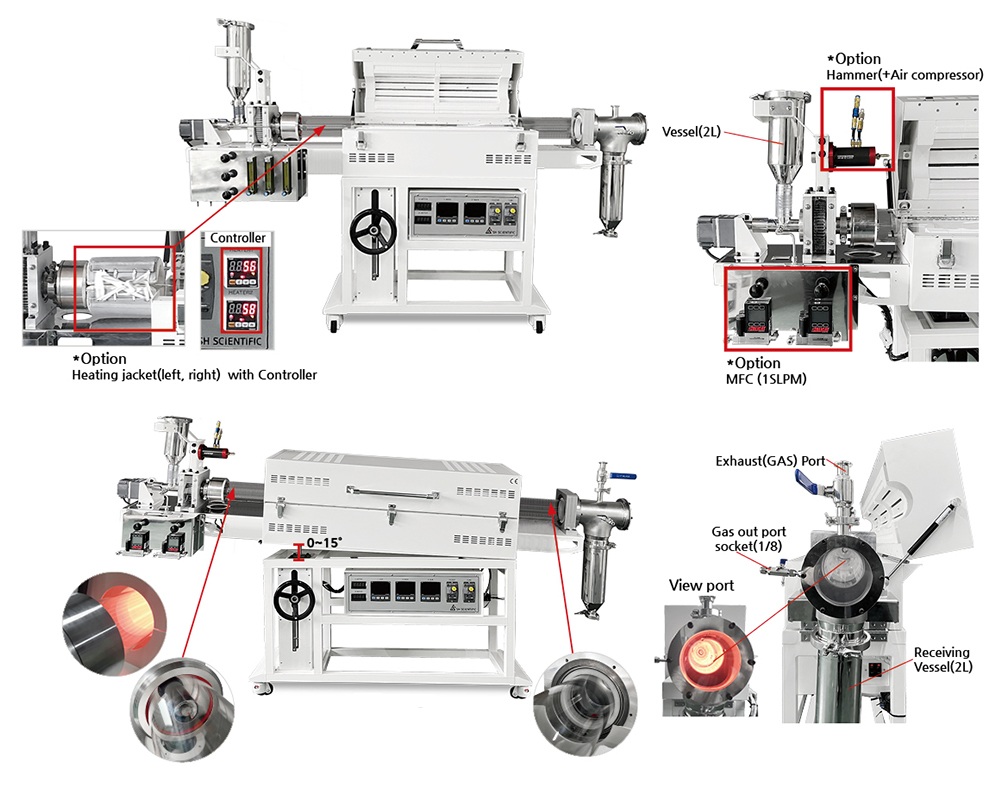

    • Feeding and receiving system: Samples flow smoothly from the feeding tank at the upper end into the receiving vessel at the lower end.
    • Prevention of tar condensation: Heating jackets at both ends maintain temperature, preventing tar buildup.
    • Anti-clogging features: A hammer/vibration mechanism in the feeder keeps viscous materials flowing steadily.

    Standard Models

    • 2 heating zones: Max 1200°C with 100 mm tube (SH-FU-100RKG600) or 120 mm tube (SH-FU-120RKG600).
    • 3 heating zones: Max 1200°C with 100 mm (SH-FU-100RKG900) or 120 mm tube (SH-FU-100RKG900).

    Tubes from 200 mm to as large as 800 mm in diameter are available for use as an industrial-scale rotary kiln.
    Every single furnace—regardless of its specs or customization—undergoes rigorous testing. We verify its rotation, heating, and even vacuum retention with inert gas injection.
    SH Scientific is your partner for advanced rotary tube furnaces that deliver years of reliable results. Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.

  • Model SH-FU-120RKG900
    Max Temp 1200℃ (2192℉)
    Temp Controller Programmable Controller(SP590)
    Sensor K type
    Hot Zone 900mm (36in)
    300mm(12in) x 3 Zone
    Applicable Tube Diameter & length Quartz tube 120 Φ x 2000 mm
    Dimension (W x D x H) 2525 x 530 x 1545mm
    99.4 x 20.8 x 60.8″
    Heater Capa 7.5kW
    Heating Jacking (option) Max 400℃
    Feeding Vessel 2L(Stainless Steel)
    Receiving Vessel 2L(Stainless Steel)
    Tube Rotation Speed 0.7 ~ 14 RPM
    Feeder speed 0.5 ~ 10 RPM
    Tube Angle 0 ~ 15˚
    Heater Element Kanthal A-1
    Insulation Ceramic Board & Wool
    Gas port ¼” tube lock valve
    Gas Exhaust port KF25 with ball valve
    Electrical Requirements 220V, 50/60Hz, 1p, 34A
