SH-FU-27MG

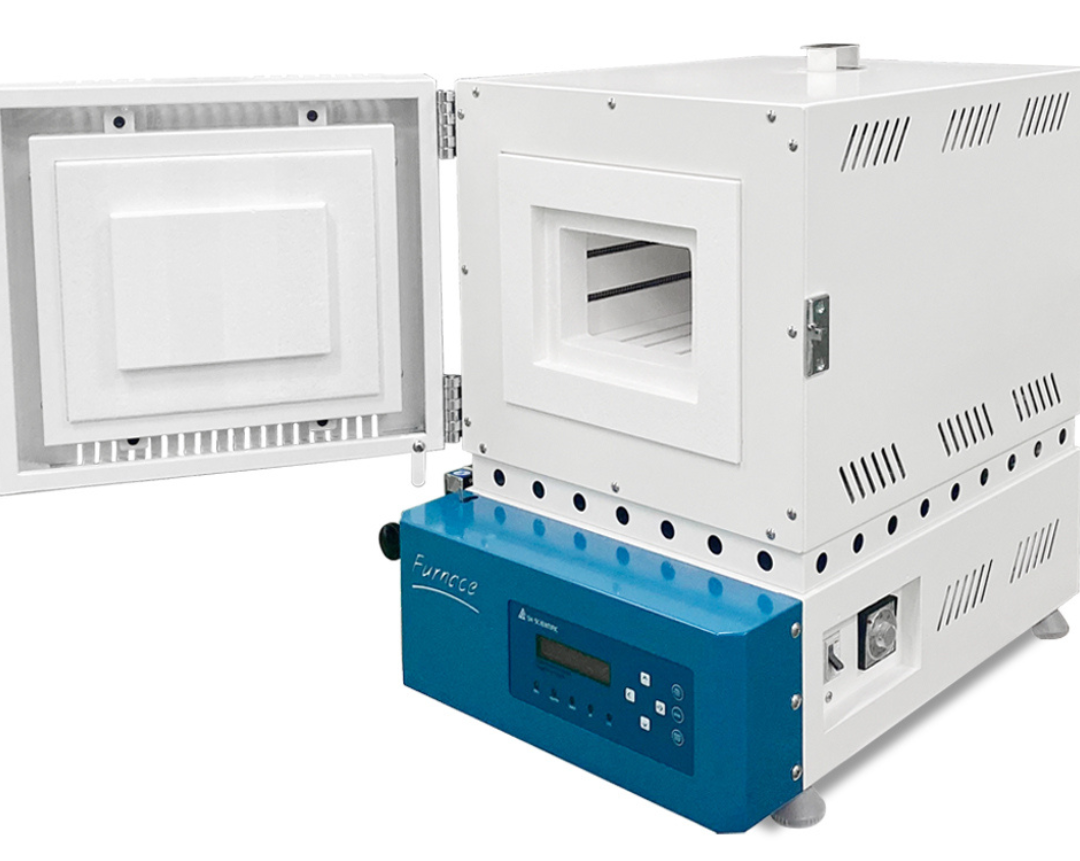

Max Temp 1200℃ meffle furnace

SH-FU-14MG (program controller)

  • High temperature muffle furnace with swing door
  • Recommended ideal running temperature is below 1000°C
  • 45 steps FC-1000 programmable controller
  • Heating from 4 sides and excellent temperature uniformity (+/-2.5%)
  • Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
  • Double housing and low surface temperature (29~30°C at 800°C)
  • SSR operation and PID control provides low noise operation and precise temp control (+/-1°C)
  • Inert gas atmosphere available with optional ball type flow meter


We recommend adding our add that product

PRODUCT Option

  • Specification

  • Documents

  • Inquiry

  • If you conduct thermal treatments at standard temperatures, then don’t overpay for a standard design!

    SH Scientific’s MG line of standard muffle furnaces are capable of up to max 1200°C, with an ideal operating temperature of below 1000°C. This line is made with cost-conscious facilities, but in need for slightly higher maximum temperature limit of 1200°C, delivering rock-solid performance without costly frills or superfluous certifications.

    • Rapid heating:Our MG furnaces reach 800°C in less than 40 minutes.

    • Multiple sizes available:Our MG furnaces reach 800°C in less than 40 minutes.

    SH Scientific muffle furnaces are used for a wide range of thermal treatments and experiments, including:

    • Ashing
    • Calcination
    • Reduction
    • Oxidation
    • Dissociation
    • Sintering
    • Pyrolysis
    • Reaction
    • Hardening and tempering
    • Melting
    • Thermocouple calibration
    • Annealing
    • Stress relieving

    …among many more.
    Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.

  • Model SH-FU-17MG
    Max temperature 1200℃
    Continuous running temperature 1000℃
    Chamber volume 27liters
    Controller Digital PID 45steps programmable controller
    Sensor K type
    Heater 4.9kW
    Heating element Kanthal A-1
    Insulation Ceramic
    Power supply 220V, 50/60Hz, 1p, 21A
    220V, 50/60Hz, 3p, 13A
    380V, 50/60Hz 3p, 8A
    Net weight 105kg
    Chamber size 300x300x300mm
    External size 580x590x840mm
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
