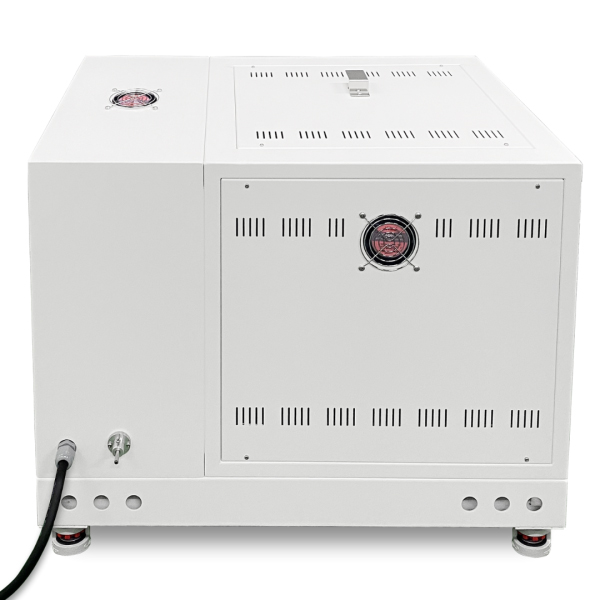

SH-FU-4MH

Max Temp 1500℃ muffle furnace

SH-FU-4MH (4.5L Chamber)

  • High temperature furnace with SiC Rod heating with swing door
  • Great for testing metallic sample
  • Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
  • Recommended ideal running temperature is below 1350°C *24hours continuous running
  • Heating from 2 sides and vertical SiC rod preventing warping. Easy replacement
  • Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
  • Double housing and low surface temperature
  • SCR operation and programmable control provides low noise operation and precise temp control (+/-1°C)
  • Inert gas atmosphere available with optional ball type flow meter

We recommend adding our add that product

PRODUCT Option

  • Specification

  • Documents

  • Inquiry

  • If you conduct thermal treatments needing to reach up to 1500°C, then our MH line muffle furnace will be the right fit!

    SH Scientific’s MH line of advanced muffle furnaces are capable of up to max 1500°C, with an ideal operating temperature of below 1350°C (for 24 hours continuous running). This line comes with built-in 45 steps programmable controller, delivering rock-solid performance and durability.

    • Rapid heating:Our MH furnaces reach 800°C in less than 40 minutes.

    • Multiple sizes available: Choose among several standard capacity options

    SH Scientific muffle furnaces are used for a wide range of thermal treatments and experiments, including:

    • Ashing
    • Calcination
    • Reduction
    • Oxidation
    • Dissociation
    • Sintering
    • Pyrolysis
    • Reaction
    • Hardening and tempering
    • Melting
    • Thermocouple calibration
    • Annealing
    • Stress relieving

    …among many more.
    Do you need to create an inert gas atmosphere inside chamber with N2 or Argon? We offer ball type gas flow meter as option. Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.

  • Model SH-FU-4MH
    Max temperature 1500℃
    Continuous running temperature 1350℃
    Chamber volume 4.5liters
    Controller Programmable controller
    Sensor R type
    Heater 3.3kW
    Heating element SIC
    Insulation Ceramic
    Power supply 220V, 50/60Hz, 1p, 15A
    Net weight 92kg
    Chamber size 150x200x150mm
    External size 820x560x740mm
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
