50STG – WG – 1200°C – SH Tube Furnace w/ Gas Supply System

Max Temp 1200°C tube furnace Gas supply package

SH-FU-50STG-WG-Basic

Also available in 80mm tube size100mm tube size and 120mm tube size.

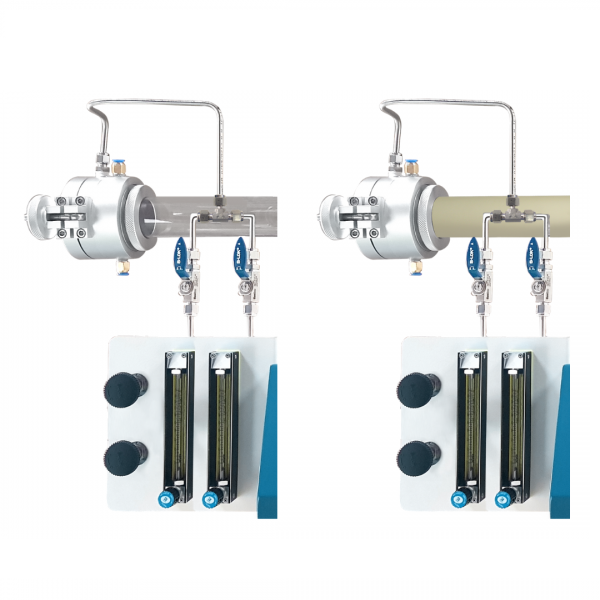

  • General temperature tube furnace with inert gas flow management system including 1 quartz tube, 1 ball type gas flow meter, 2 aluminum sealing masks, and stainless steel 316 valves, pipes and fittings.
  • Easy assembly. Plug and play style.
  • 50mm (2″) diameter, 300mm (12″) hot zone
  • Max temperature 1200°C. Recommended ideal running temperature is 1000°C or below.
  • Great system for non-oxidation atmosphere experiment and treatment
  • Fast cool down with inert gas flow
  • Can be bundled with vacuum pump and chiller as turn-key vacuum tube furnace system (Go to turn-key vacuum tube system category)
  • Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
  • Double housing and low surface temperature (29~30°C at 800°C)
  • 50/80/100/120mm tube available. 300/600mm hot zone available
  • Great durability thanks to Kanthal heating element
  • Light weight and prompt heat up thanks to ceramic insulation
  • Convenient design for sample loading
  • Built in over temp protector
  • SSR operation and built in programmable controller provides low noise operation and precise temp control (+/-1°C)
  • Specification

  • Documents

  • Inquiry

  • Built in South Korea, our tube furnaces offer unparalleled efficiency and versatility. Every model delivers industry-standard performance and endless customization, all at surprisingly accessible prices.

    • Standalone tube furnace (STG/LTG series): Ideal for basic applications requiring precise heating.
    • Tube furnace with gas flow management (WG series): Enhances control over atmospheric conditions, perfect for sensitive experiments.
    • Turn-key vacuum tube furnace system (PK-G series): A comprehensive solution including a gas flow management system, vacuum pump, and chiller for advanced research needs.

    Technical Excellence

    SH Scientific’s tube furnaces are increasingly used in cutting-edge fields, including secondary and graphene battery research, polymer composites, and 3D printing material treatment.

    Whatever configuration you choose, you and your team can expect:

    • Wide temperature range: STG/LTG series operates at up to 1200° C with optimal performance at 1000° C. Other series are capable of up to 1800° C.
    • Programmable heating zones: Built-in 45-step controller for complex cyclic treatments, with heating zones of 1 x 300 mm (STG), 1 x 600 mm (LTG), or 3 x 200 mm (LTG-3).
    • Extensive tube size options: Standard diameters are 50/80/100/120 mm. Significantly larger diameters are available upon request.
    • Rapid heating & cooling: Minimize wait times with efficient thermal management.
    • Economical sample treatment: A cost-effective choice for processing small samples, especially with volatile materials or special atmospheric requirements.
    • Advanced features: Digital programmable controllers, single or three hot zones, double-shell construction for stability, and customizable tube diameters.

    Customization & Accessories

    We specialize in gas flow management systems. Our turn-key vacuum tube furnace system (with recirculating chillers and low-noise vacuum pumps) is a popular upgrade for more seamless set-up and use.
    Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.

  •

    ModelSH-FU-50STG-WG
    Max temperature1200°C
    Continuous running temperature1000°C
    Tube diameter50mm
    ControllerProgrammable controller
    SensorK type
    Heater2kW
    Hot zone300mm
    Heating elementKanthal with ceramic molding
    InsulationCeramic
    External size500x360x520mm *Furnace only
    Weight27kg *Furnace only
    Power supply220V, 50/60Hz, 1p, 9A
