SH-FU-10MGVQ

Quarts Chamber Vacuum Muffle Furnace

SH-FU-10MGVQ

  • 9.3L (8.2 x 8.3 x 8.2″) Quartz chamber vacuum muffle furnace.
  • Non-contaminating CLEANROOM condition.
  • Maximize SAMPLE PURITY and HEATING ELEMENT LONGEVITY.
  • Complete atmospheric control for non-oxidation environment.
  • An optional mass flow controller for precise, responsive and stable gas management across 98 inert gas presets, supported by a back pressure regulator to maintain positive pressure inside the chamber
  • An available vacuum pump with flow speed of 596L/min (21cfm)
  • Creating your multiple atmospheric environment (burning in air, purging air and pulling vacuum, flowing inert gas and sintering)
  • No limitation on materials sizes compared to the ones with tube furnace
  • Support hardening, annealing, tempering, brazing and sintering with or without vacuum
  • Vacuum heat treating and vacuum brazing
  • Recommended ideal running temperature is below 1000°C

  • Specification

  • Documents

  • Inquiry

  • CLEANROOM INSIDE YOUR VACUUM MUFFLE FURNACE!

    New MGVQ Series!

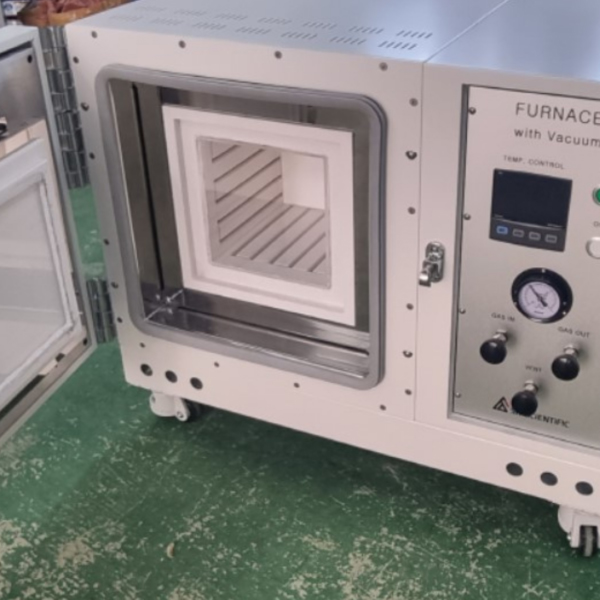

    Our MGVQ line of QUARTZ CHAMBER vacuum muffle furnaces provide a cleanroom right inside your furnace’s chamber.

    This series brings comprehensive programmability and complete gas flow control-ideal for calcination, sintering, and annealing.

    What’s more, the high-performance quartz interior delivers three distinct advantages:

    1. 1. ENSURE NON-CONTAMINATING cleanroom conditions for delicate samples
    2. 2. EXTENDS THE LIFE of the heating elements
    3. 3. ENHANCES TEMPERATURE CONTROL for even more precise thermal treatment

    WHAT IS A VACUUM MUFFLE FURNACE?

    A muffle furnace contains a rectangular central chamber surrounded by electrical heating elements, which are generally connected to a programmable, digital controller. This space-efficient chamber design offers terrific capacity per dollar.

    But standard muffle furnaces have a limitation: perfect inert gas saturation is elusive. Oxygen levels can remain stubbornly high near the corners, due to the non-crossing streamlines phenomenon.

    We have solved this problem by fitting a vacuum pump to our proven, benchtop muffle furnace design. This ensures complete atmospheric control without space constraints of a tube furnace.

    Most muffle furnaces also have a ceramic interior, which incurs a small risk of contamination or, rarely, dust combustion. We offer a quartz interior for absolute sample purity: unlike ceramic, it is inherently free of any powdery surface or residue. In addition, quartz increases heating element lifespan in the presence of inert gases.

    Tube furnaces for battery research remain popular as well. They don’t rival the space-efficiency of a muffle furnace, but they often make sense for extreme temperature and/or very small treatment.

    We equip battery, semi-conductor, and other ceramic/metal material research labs with:

    • A quartz chamber to maximize sample purity and heating element longevity

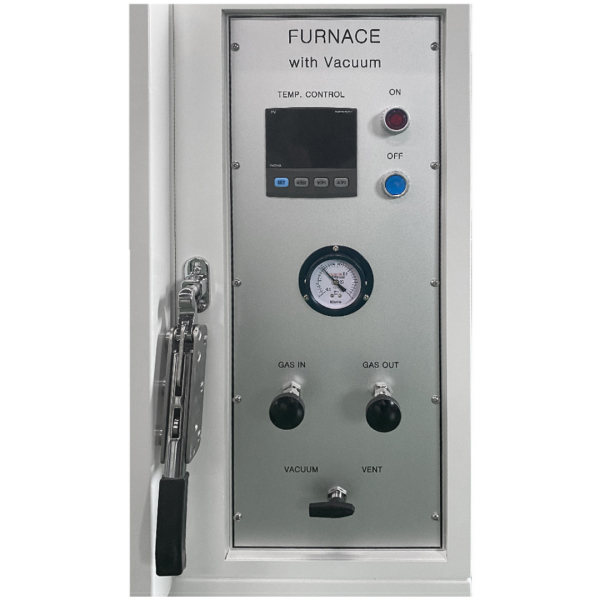

    • A programmable digital controller
    • An optional mass flow controller for precise, responsive and stable gas management across 98 inert gas presets, supported by a back pressure regulator to maintain positive pressure inside the chamber
    • An available vacuum pump with flow speed of 596L/min (21cfm)
  • Model SH-FU-1.5MGVQ SH-FU-10MGVQ SH-FU-31MGVQ
    Max temperature 1200℃ 1200℃ 1200℃
    Continuous running temperature 1000℃ 1000℃ 1000℃
    Chamber volume 1.3 liters 9.3 liters 29.8 liters
    Controller SP590 programmable controller SP590 programmable controller SP590 programmable controller
    Heater 0.8kW 3.3kW 6.0kW
    Sensor K type K type K type
    Heating element KANTHAL A-1 (ceramic heating) KANTHAL A-1 (ceramic heating) KANTHAL A-1 (ceramic heating)
    Insulation Ceramic board & wool (ceramic fiber) Ceramic board & wool (ceramic fiber) Ceramic board & wool (ceramic fiber)
    Chamber size 109×112×109mm 209×212×209mm 309×312×309mm
    External size 530×490×730mm 630×590×830mm 730×690×930mm
    Option Digital vacuum meter
    Mass flow controller
    Back pressure regulator
    Digital vacuum meter
    Mass flow controller
    Back pressure regulator
    Digital vacuum meter
    Mass flow controller
    Back pressure regulator
    Power supply 220V, 50/60Hz, 1p, 6A 220V, 50/60Hz, 1p, 14A 220V, 50/60Hz, 1p, 26A
    220V, 50/60Hz, 3p, 15A
