MC. MCS MCSS, MCV

Gas Selectable 98

Flow Range 0 ~ 1/0 ~ 5 slpm

Gas mass flow meter

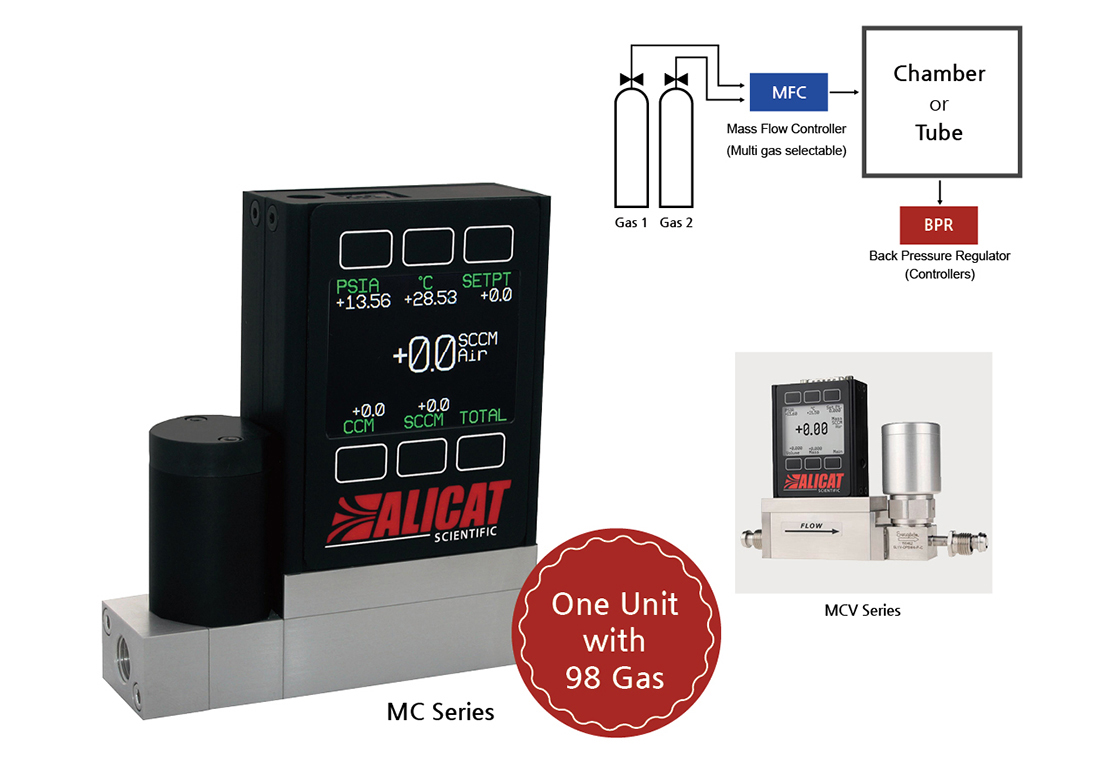

Mass Flow Controller (Multi gas selectable)

  • Accessible PID valve tuning for best speed and stability.
  • Custom valve orifice sizes: yields full-range stability.
  • Control mass flow, vol. flow or pressure with one device.
  • No warm-up: ready to control process flows in one second.

  • Specification

  • Inquiry



  •

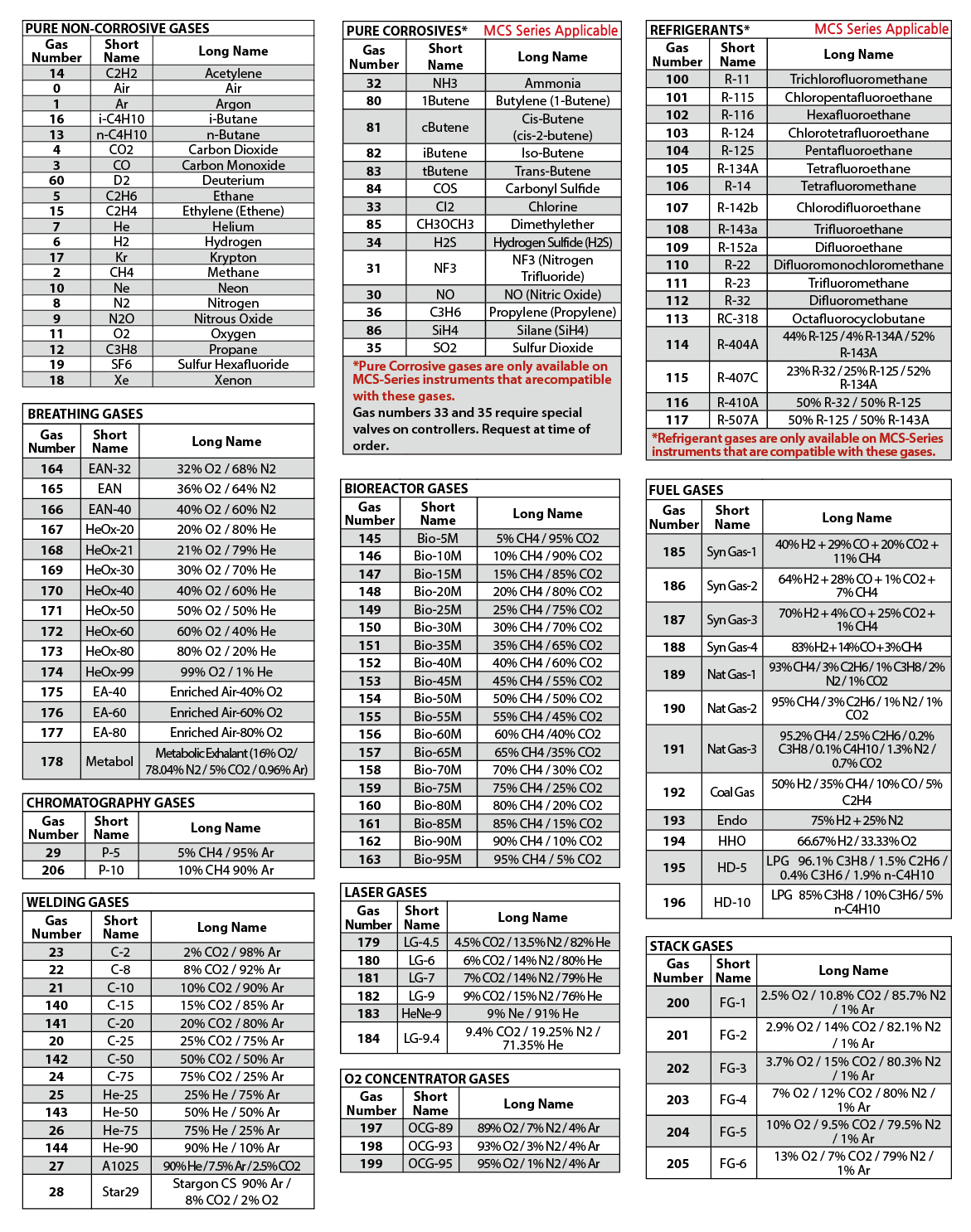

    Gas Select™ Preloaded Gases




  • Product Name Mass Flow Controller (Multi gas selectable)
    Model MC Series MCS Series MCSS Series MCV Series
    Type General For Toxi Gas For Toxi Gas (including Cl2, SO2, HCl) For Vacuum
    Flow Range 0 ~ 1 slpm / 0 ~ 5 slpm
    Mass Flow Accuracy at
    calibration conditions
    ±0.6% of reading or ±0.1% of full scale ±0.8% of reading or ±0.2% of full scale
    Operating Temperature Range -10 to +60°C
    Temperature Accuracy ±0.75°C
    Operating Pressure full scale 145 PSIG
    Pressure Accuracy Above 1 atm: ±0.5% of reading
    Typical Indication Response Time < 10 ms < 100 ms
    Typical Warm-Up Time <1 Second
    Monochrome LCD Simultaneously displays
    mass Flow, pressure and
    temperature
    Simultaneously displays mass Flow,
    Volumetric Flow, pressure and temperature
    Mechanical Dimensions
    (HxWxD)
    104.14x91.44x27.94mm / 4.1x3.6x1.1" 121.92x172.72x38.1mm /4.8x6.8x1.5"
    Gas Selectable 98 Gas 128 Gas (except Cl2, SO2, HCl) 131 Gas (including Cl2, SO2, HCl) 98 Gas
    Communication RS-232
