Product List

Bullseye

digital vacuum gauge

Range 0.001 ~ 800Torr

Portable digital vacuum gauge

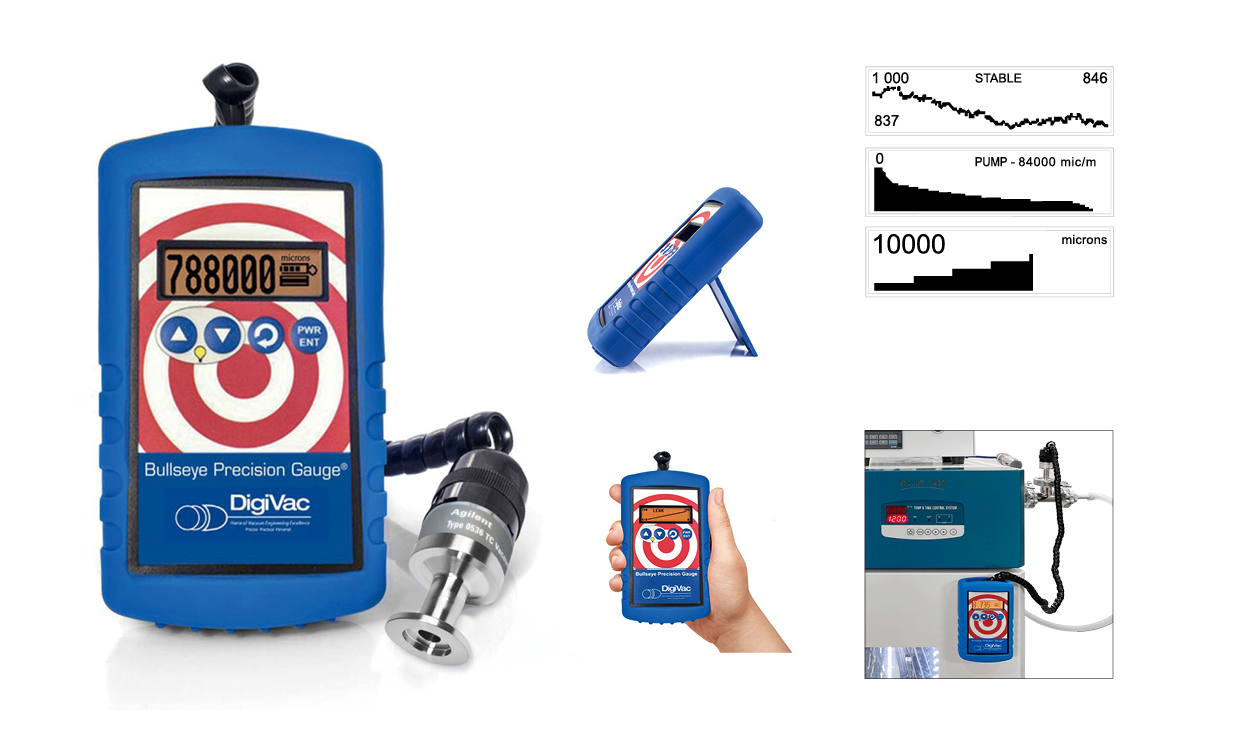

Digital Vacuum Meter(Bullseye)

  • Convenient to use as a portable device, and can operate continuously for 70 hours using AA batteries (4EA).
  • Power connection via micro USB port is possible.
  • It can be freely installed on the case surface using the rear magnetic plate and can also be placed on a stand.
  • Accurate vacuum readings with Agilent 536 sensor pre-calibrated to NIST standards.
  • Display vacuum measurement values as text or easy-to-recognize graphs (0.001 to 800 Torr).
  • 12 measurement units can be displayed (Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa).
  • Specification

  • Inquiry


  •

    • Standard Accessory

    1. - Bullseye Gauge & Agilent536 Vacuum Sensor 1SET
    2. - KF(NW)25 Clamp 1EA
    3. - KF(NW)25 Centr Ring & Viton Ring 1EA
    4. - USB C type charger 1EA

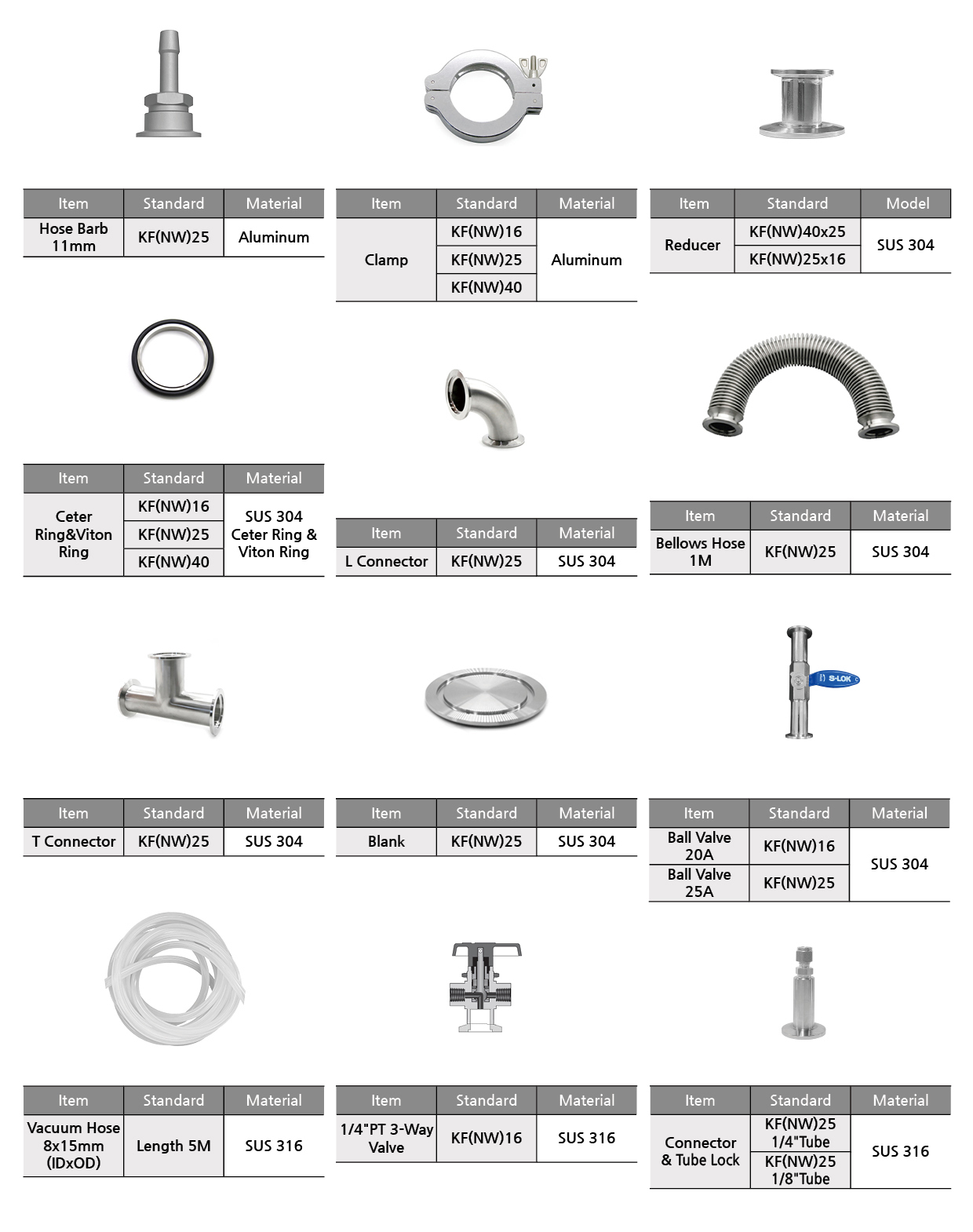

    • Option

    1. - KF(NW)25 Hose Barb 10mm
    2. - KF(NW)16, 25, 40 Clamp
    3. - KF(NW)16, 25, 40 Centr Ring & Viton Ring
    4. - KF(NW)25 T Connector
    5. - KF(NW)25 L Connector
    6. - KF(NW)25 Ball Valve
    7. - KF(NW)25 Blank
    8. - KF(NW)40*25 Reducer
    9. - KF(NW)25*16 Reducer
    10. - KF(NW)25&1/4"PT Needle Valve
    11. - KF(NW)16&1/4"PT 3-Way Valve
    12. - Silicon Vacuum Hose 8-15mm(L)5m
    13. - SUS Bellows Hose 1m

    Vacuum Accessories




  • Product Name Portable Digital Vacuum Gauge Digital Vacuum Meter (Bullseye)
    Model Bullseye
    Range 0.001 Torr - 800 Torr
    Power AA x 4 Batteries
    Sensor Agilent 536 Sensor
    Accuracy 1~99 mmTorr± 2 mmTorr or 20%
    100~2000 mmTorr ± 10%
    2~6 Torr± 25%
    Units Torr, millitor, microns, mbar, bar, kPa, Pa, mm, mm of Hg, inches of Hg, inches of water, PSIA
    Mount Portable Handheld
    Display LCD
    Certifications CE, RoHS2
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
