SH Clean Bench 1900V

Laminar Clean Bench(74")

W:1891mm

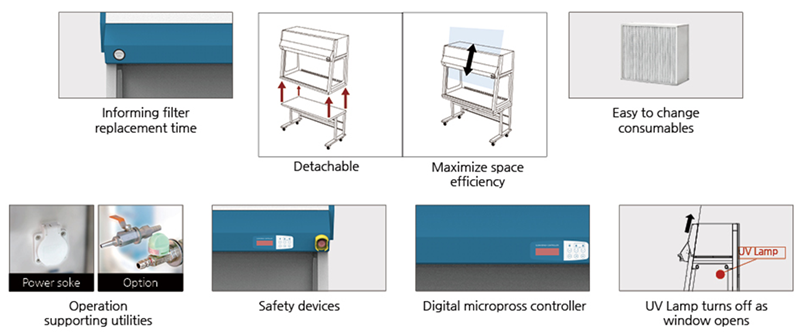

  • 1891mm wide
  • Excellent laminar flow distribution
  • Adjustable fan motor speed control (10 steps)
  • Detachable upper workstation and lower base stand
  • Alarm for filter replacement timing for convenient maintenance
  • Excellent mobility and space-efficiency design
  • Automatic UV lamp off function against door opening
  • Safety assurance with C.E conformity
  • Specification

  • Documents

  • Inquiry

  • Laminar flow clean bench (laminar flow cabinet or tissue culture hood) is a bench designed to prevent contamination of semiconductor wafers, biological samples or any particle sensitive materials. Air is drawn through a HEPA filter and blown in a very smooth, laminar flow toward the user. The clean bench was originally developed to supplement clean room technology and thesedays it is used across the industries including research, manufacturing, bioscience, pharmaceutical and food processing.

    SH Scientific clean bench V series has excellent laminar flow distribution and 10 steps speed controllable. Exclusively invented LCD controller for clean bench will enhance your intuitive operation with convenience.

    UV lamp will be off automatically when the glass door is open and the replacement of HEPA filter is so easy.

    Cabinet and bench are separable structure so the installation is convenient.



    Option
    -Air & Gas port

    Safety Device
    – Fan motor over load protection
    – Buzzer on and UV lamp cut off when set time arrived
    – Automatic UV lamp off function against door opening
    – Emergency stop button
    – Alarm when HEPA filter replacement is needed




  • Model SH-HD-1900V
    Type Laminar Vertical Down Flow
    Dimension Internal
    (WxDxH)
    1891x613x690mm
    74.86×24.13×27.17″
    Dimension External
    (WxDxH)
    1996x696x1820mm
    74.43×30.71×74.80″
    Weight 230 kg
    Control System Microprocessor LCD Digital Controller
    Main Filter HEPA Filter 0.3㎛ 99.97% efficient filter
    Material External Steel Plate with Powder Heating Coated
    Working Table Stainless Steel
    Illumination LED Lamp 20W, Length 1200mm
    Illumination UV Lamp 32W x 1EA

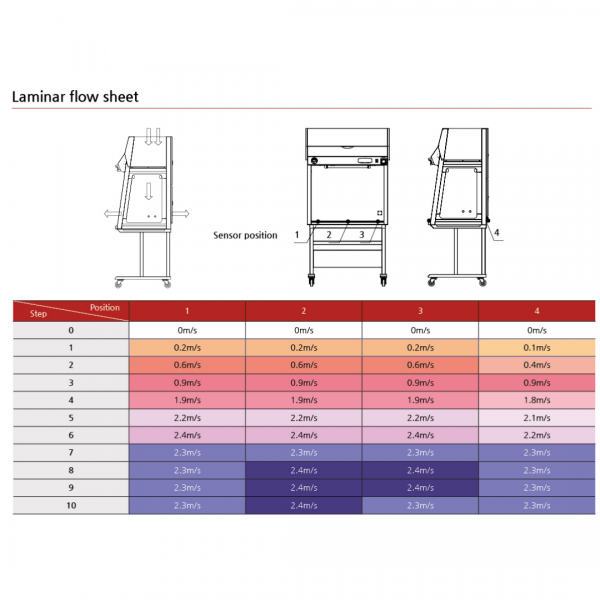

    Winding Velocity 0.2~2.3M/Sec, 10 step adjustable
    Purity Below to Class 100
    Door Type Tempered 5T Glass by Weight Balance
    Electrical Requirements 120V, 230V, 50/60Hz, 1Φ
    Cat. No. 120V, 50Hz HD1900V120-50
    Cat. No. 120V, 60Hz HD1900V120-60
    Cat. No. 230V, 50Hz HD1900V230-50
    Cat. No. 230V, 60Hz HD1900V230-60



  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
