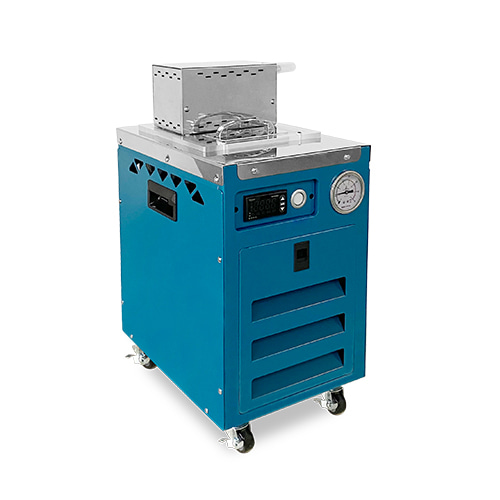

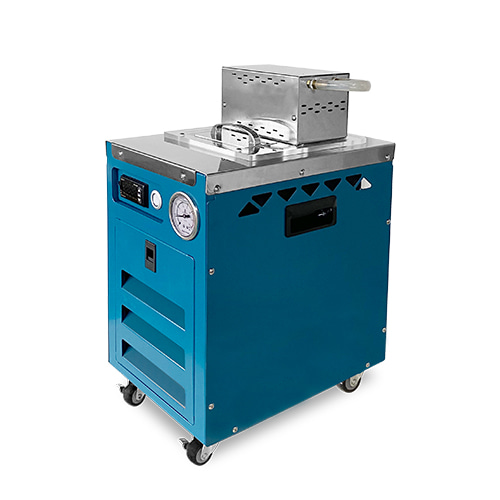

3 in 1 Compact Chiller SH-WB-5CDR(-15)

Compact Chiller 5L

SH-WB-5CDR(-15)

  • Specification

  • Inquiry

  • This product is a device that supplies coolant in connection with a condensor. With strong cooling & circulation power, perfect and fast condensation effect can be obtained. It is designed to maximize of durability and user friendly with compact structure for easy observation & cleaning the inner chamber. It can be used in three individual purposes such as Chiller, Cooling Bath and Cold Trap Bath.

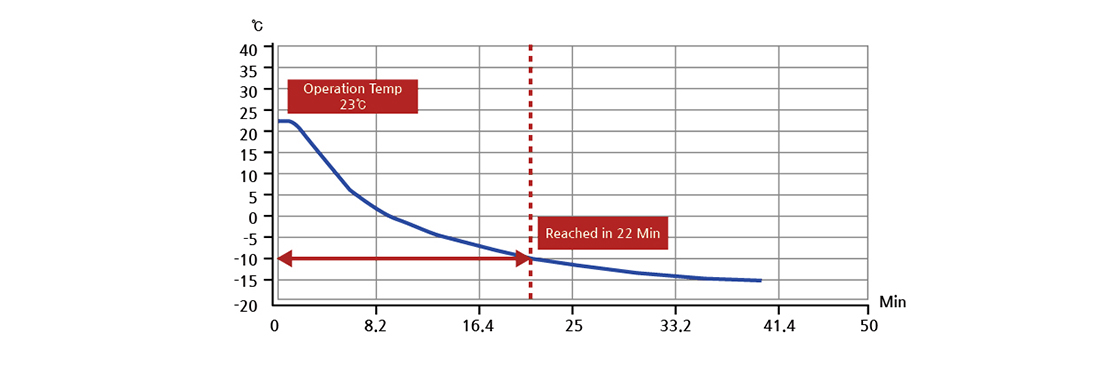

    Cool down time

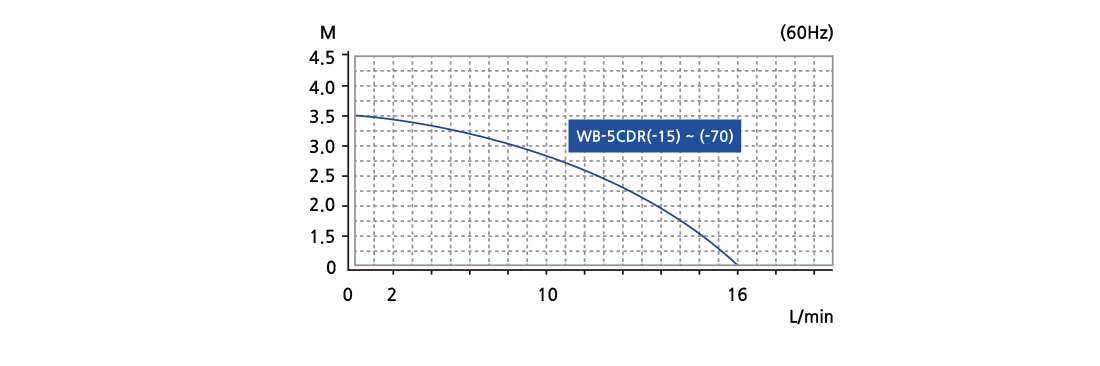

    Recirculating pump curve





    Chiller test in connection with Rotary Evaporator

    <Coolant : Ethanol 98%>

    1L Rotarty evaporator Chiller (SH-WB-5CDR)
    Bath temp. RPM Set temp. Holding temp. Chiller front air inlet temp. Chiller rear hot air exhaust temp.
    40℃ 70 -10℃ 0℃ 25℃ 35℃
    60℃ 70 -10℃ 6℃ 25℃ 37℃

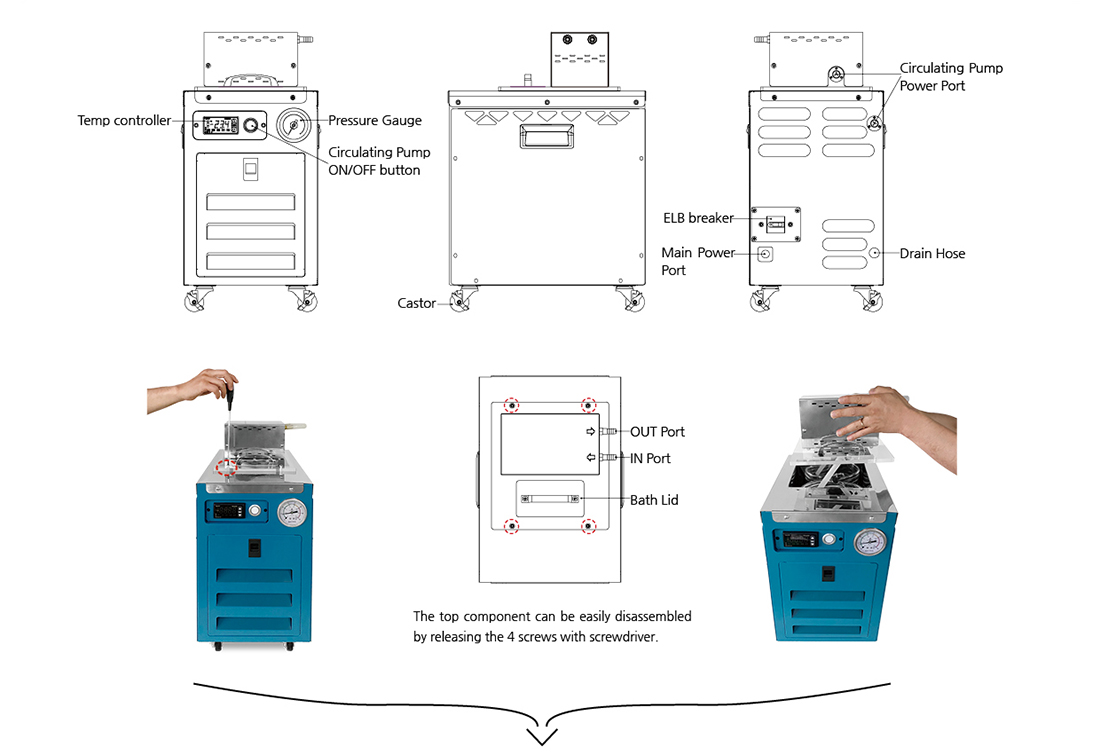

    Application

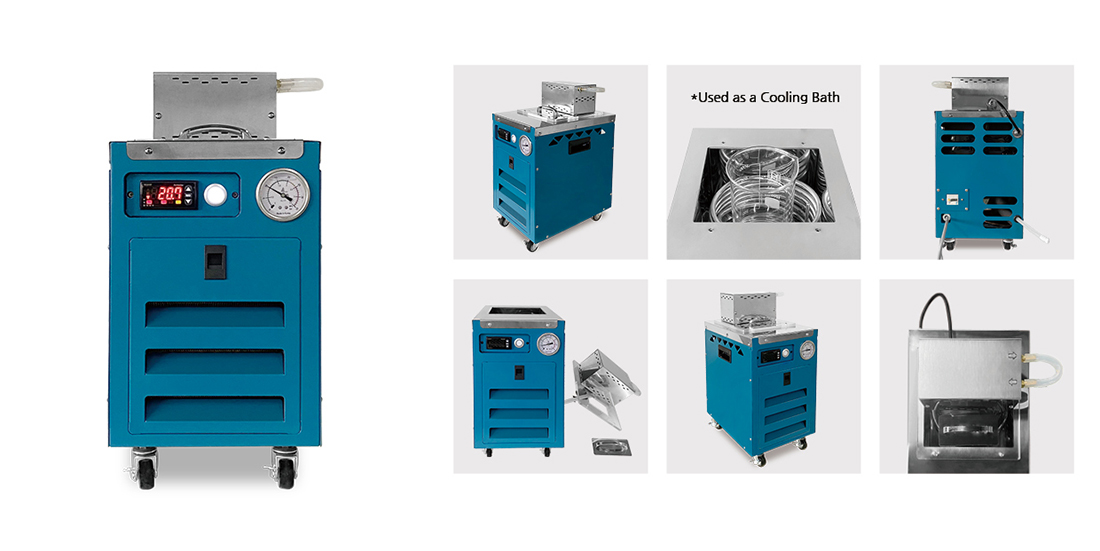

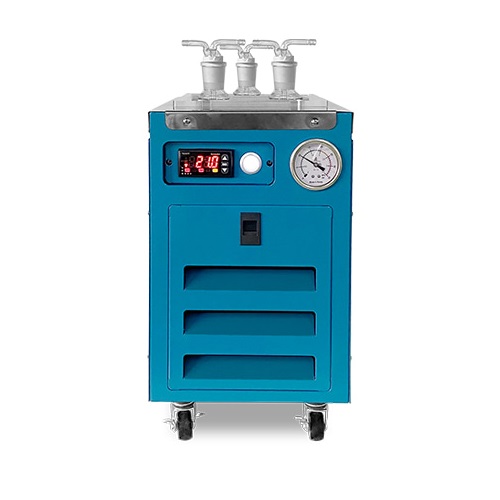

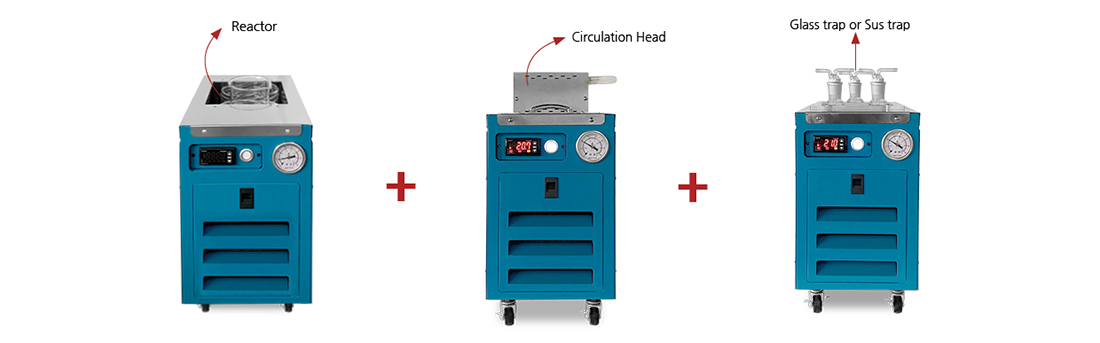

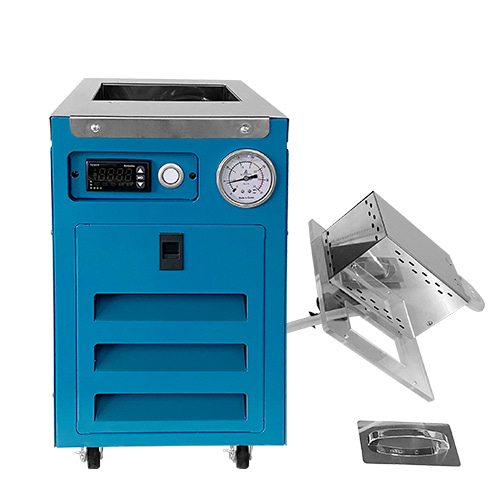

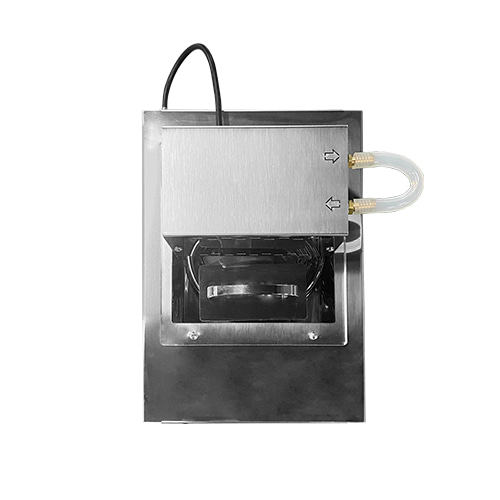

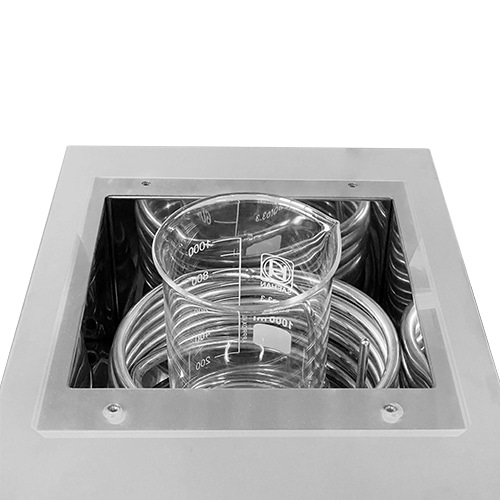

    Used as a Cooling Bath                     Used as a Chiller                     Used as a Cold Trap Bath

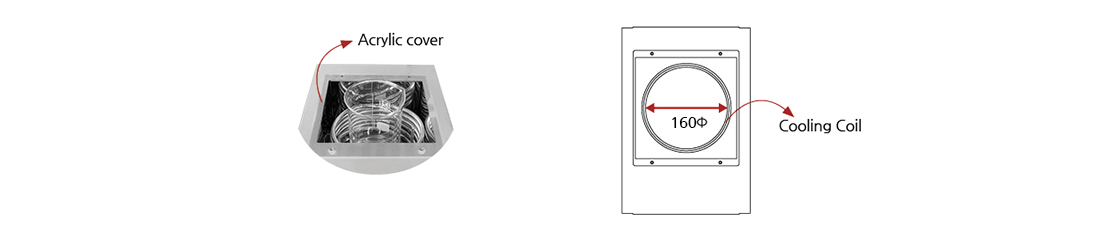

    * Acrylic cover, Glass trap,  SUS trap are optional components

    *Acrylic cover can be manufactured according to application                             *Reactor outer diameter size less than160Φ can be installed

  • Model SH-WB-5CDR(-15)
    Temp Controller Microprocessor Digital Controller
    Temp Range -15℃ to ambient (based on ambient 25℃ / No load condition)
    Cooling Capacity Holding temp. Cooling Power
    10℃ 980W
    0℃ 650W
    -10℃ 330W
    Recirculating Pump Max Flow 16 L/min. (tested with distilled water at 20℃)
    Max Head 3.5meter (tested with distilled water at 20℃)
    Max pressure
    5.1 psig (tested with distilled water at 20℃)
    Water Proof Level lpx4
    In/out port Dimension Internal 13.0 mm (O.D) / Stainless Steel pipe or 1/2" Pt Female connector (*option)
    Dimension Internal
    (W×D×H)
    200x200x130mm
    7.87x7.87x5.12"
    Dimension External
    (W×D×H)
    283x400x565mm
    11.14x15.75x22.24“
    Reservior Capa 5L
    Material Internal Stainless Steel
    Material External Steel Plate with Powder Heating Coated
    Electrical Power 230V, 60Hz, 1phase
    Net. Weight 26.5kg
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
