SH Ball Mill 300

Ball Mill(300mm roller | 300rpm)

SH-BALL300-1

  • Ball mill with 70mm (2.8″) diameter & 300mm (12″) long roller
  • Max 300rpm
  • Max 99:59 (HH:MM) time setting
  • 19.4″ L x 19.7″ D x 13.8″ H, 69lbs
  • Noise proof cabinet (option)
  • 110V
  • Specification

  • Inquiry

  • The ball mill, a type of grinder, is a cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw materials and paints.
    The ball mill is a key piece of equipment for grinding crushed materials, and it is widely used in production lines for powders such as cement, silicates, refractory material, fertilizer, glass ceramics, selective laser sintering and etc.
    Ball milling has several advantages over other systems: the cost of installation and grinding medium is low; the capacity and fineness can be easily adjusted by adjusting the diameter of the balls.
    SH Scientific ball mills have 300mm (12″) & 700mm (28″) long rollers with max 300rpm.
    You can double the process with 2tier models.

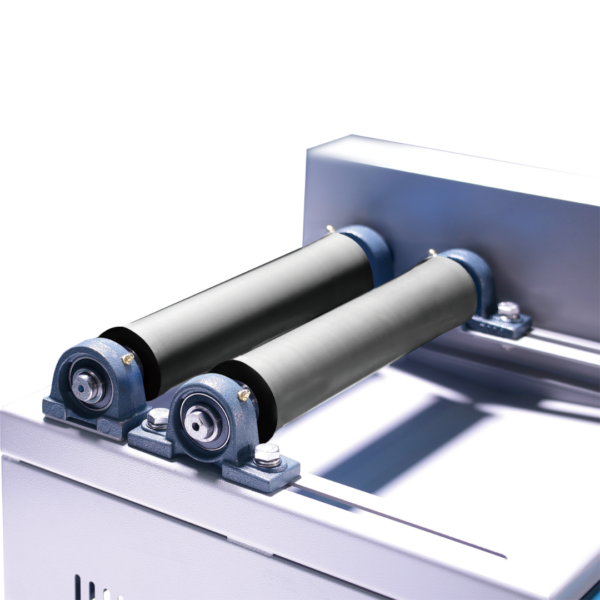

    The gab between rollers are adjustable from 30mm to 210mm.
    And ball mills in NOISE PROOF BOX are available for your pleasant work environment.
  • Model SH-BALL300-1
    Drive Motor DC Geared Motor 40W
    RPM Controller Stepless Voltage Controller
    RPM Range 0 to 300
    RPM Accuracy +/- 1
    Time Setting accuracy 00:00 to 99:59 (HH:MM)
    External Dimension 490 L x 500 D x 350mm H
    19.4 L x 19.7 D x 13.8″ H
    Roller Size 70mm (2.8″) diameter x 300mm (12″) long
    Weight 31kg
    Power 110V



  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
