SH Vacuum Oven Package for Toxic Gas VDO-PK-C3

Vacuum Oven Package

SH Vacuum Oven Package for Toxic Gas VDO-PK-C3

150℃ Vacuum Oven Package for Toxic Gas

  • Resistant structure to organic solvents by applying STS316 for inner chamber material & viton for sealing gasket
  • Two-stage fire prevention structure
    1. Block the fire source of inner chamber with Hot Air Jacket heating method

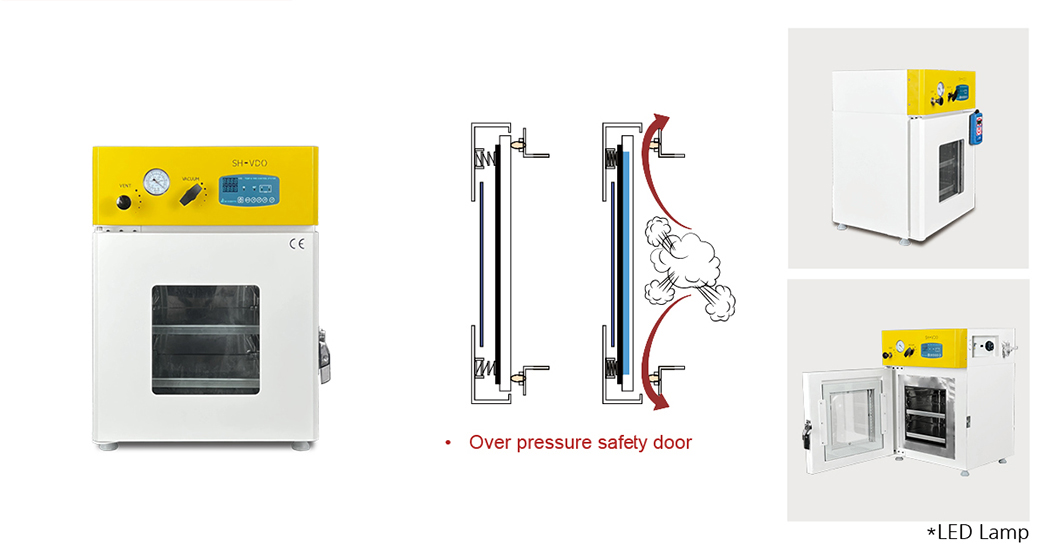

    2. Door relif function to prevent explosion & to release pressue when the pressure rises due to a fire of inner chamber
  • Seperated configuration of vacuum port and vacuum release port
  • Excellent temperature precision & distribution
  • Recommended ideal running temperature is below 150℃
  • Enable to install 4~6 pcs of shelves in maximum (2~4 pcs are included as standard)
  • Internal observation is possible through view windows with LED lamp
  • Consisting a Cold Trap Bath for trapping solvents, which help vacuum pump durability by preventing solvent directly flow into the vacuum pump
  • The vacuum pump is oil rotary type for chemicals, which used in required high vacuum and organic solvents atmospheres
    (Diaphragm type or Dry scroll type can be consisted as optional)
  • Specification

  • Inquiry


  •

    Model Pump Speed Model Temp Range
    SH-CV20 167L/min SH-WB-5GDR(-20) Ambient -40℃ ~ ambient
    (-40℉ ~ ambient) (Low limit -20℃)
    Ultimate Pressure 5x10-1 Pa (3.7 x 10-3 Torr) SH-WB-5GDR(-40) -40℃(-40℉) ~ -20℃(-4℉)
    SH-WB-5GDR(-80) -80℃(-112℉) ~ -60℃ (-76℉)










    150°C Vacuum Drying Oven for Toxic Gas
    SH-VDO-125NC




    Model SH-VDO-125NC
    Temp Range Ambient +5℃ to 180℃ (Ambient + 9℉ to 356℉)
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
    Vacuum Resistance 0 to 76 cmHg (0 to 0.1MPa)
    Heating Type Hot Air Jacketed
    Temp & Time Controller Microprocess PID Membrane Touch Digital controller
    LED Lamp DC 24V, 1.2W, LED bar, Waterproof, Cool White
    Heater Capacity 3000 W
    Dimension Internal (W×D×H) 500×500×500mm / 19.69x19.69x19.69''
    Dimension External (W×D×H) 795×770×1025mm / 31.30x30.31x40.35''
    Weight 200 Kg
    Capacity 125 L
    Material Internal SUS 316
    Material External Steel Plate With Powder Heating Coated
    Material Packing Viton Packing
    View Window Tempered Glass
    Shelves 4 Supplied (6 Maximum)(SUS 316)
    Electrical Requirements (120V, 50/60Hz, 1Φ) 25.0 A
    Cat. No. (120V) VDO125NC120
    Electrical Requirements (230V, 50/60Hz, 1Φ) 6 A
    Cat. No. (230V) VDO125NC230

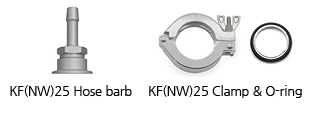

    • Standard Accessory




    • Option

    1. Programmable Controller
    2. RS-485 interface
    3. RS-232C interface
    4. Digital Vacuum Meter (Bullseye)

    • Safety Device

    1. High temp limit controller
    2. Automatic reset function incoming power cut
    3. Buzzer on when set Time arrived
    4. Electric leakage circuit breaker

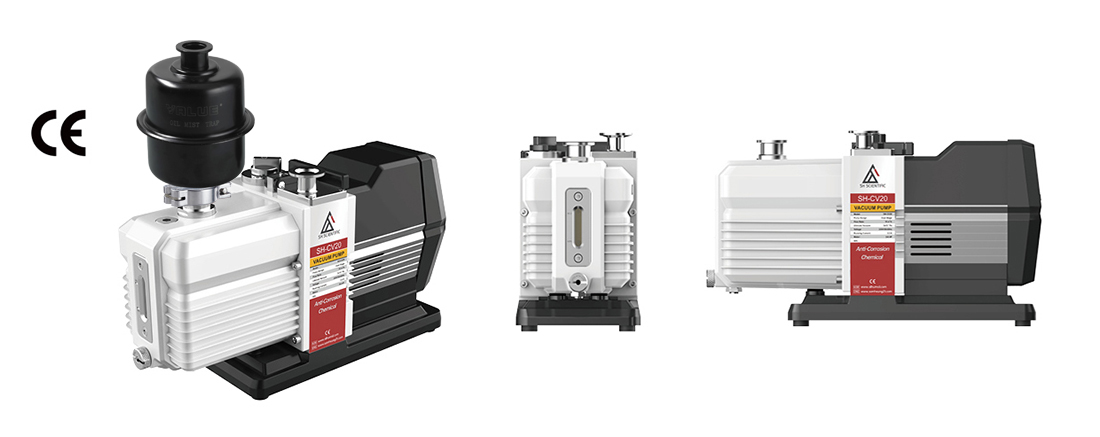

    Anti- Corrosion Chemical Vacuum Pump
    Corrosion-Resistant · No Oil Leakage

    • Corrosion-Resistant Design: Corrosion resistance treatments on the pump body; Stainless steel springs and Fluorine rubber sealing rings.
    • No Oil Leakage: Converting dynamic seals (oil seals) to static seals.
    • Brushless DC Technology: Low noise. Energy-saving.
    • Anti Suck Back Design: Protecting vacuum system from oil contamination during an unexpected shutdown.
    • Integrated Design: Less spare parts. Easy to repair and maintain.
    • Oil Drainage Ball valve: Ensuring easy oil drainage.




    Model SH-CV20
    Pumping Speed (50/60Hz) 167L/min
    Ultimate Total Pressure without gas ballast 5x10-1 Pa (3.7 x 10-3 Torr)
    Ultimate Total Pressure with gas ballast 3 Pa (2.2 x 10-2 Torr)
    Power Supply Single Phase
    Power Rating 3/4 HP
    Inlet and Exhaust Port KF25
    Oil Capacity 0.75 L
    Motor Speed (50/60Hz) 1850 rpm
    Ambient Temperature 5~40℃
    Noise ≤52dB
    Weight 15 kg

    • Option




    1. Oil Mist Trap with Filter
    2. VOT-4080




    1. Filter for Oil Mist Trap
    2. VOT-4080

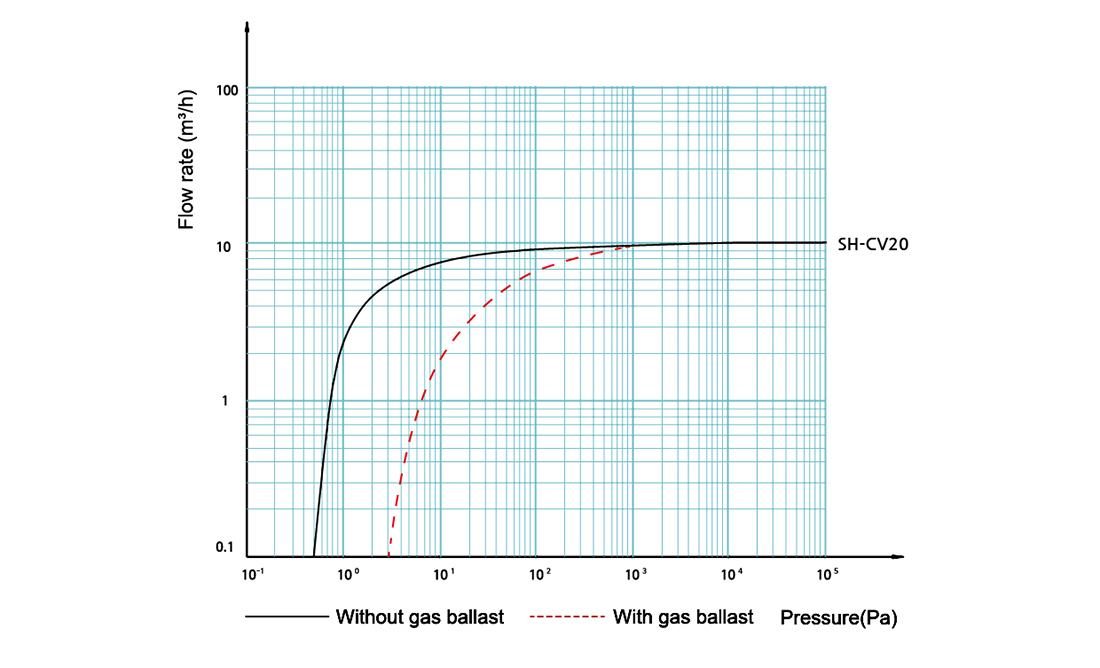

    Flow Rate Characteristic

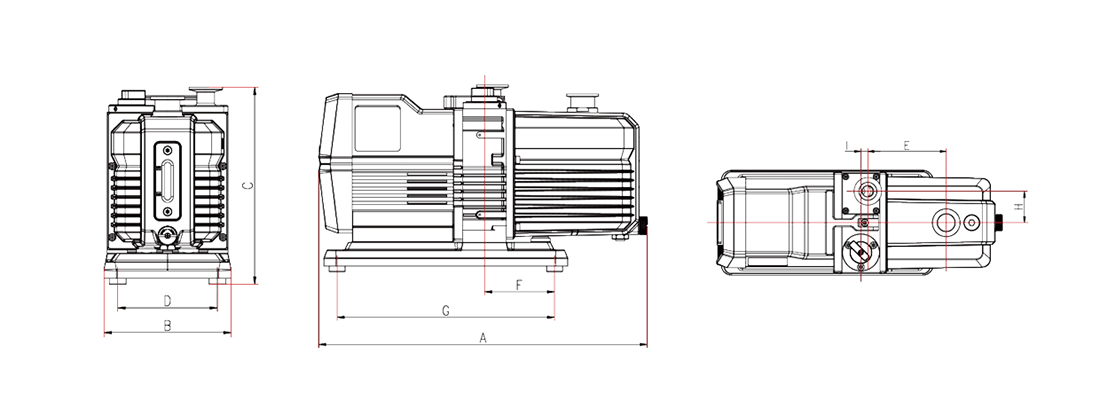

    Dimension




    Dimensions
    Model A B C D E F G H I
    SH-CV20 414 152 235 119 113.5 88 274 45.5 10

    SH-WB-5GDR(-20)

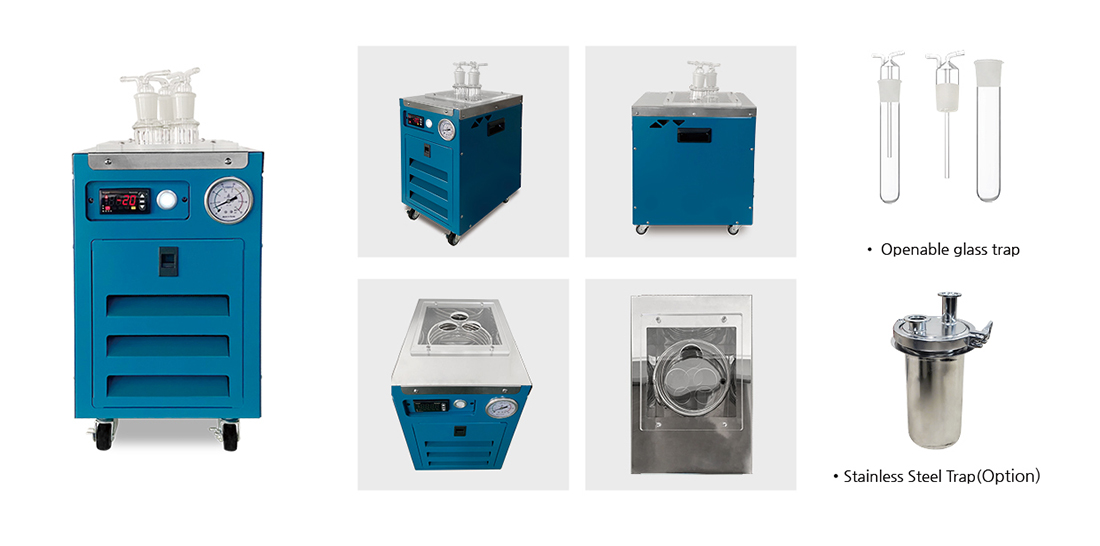

    Cold Trap Bath (Option)




    Model SH-WB-5GDR
    Order Number SH-WB-5GDR(-20)
    Temp Controller Microprocessor digital controller
    Temp Control Range Ambient -40℃ ~ ambient (-40℉ ~ ambient) (Low limit -20℃)
    Dimension Internal (W×D×H) 200x200x130mm / 7.87x7.87x5.12"
    Dimension External (W×D×H) 283x400x455mm / 11.14x15.75x17.91''
    Weight 26.5kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Trap Openable glass trap×3EA
    Noise (dB) 53
    Power 230V, 60Hz, 1Φ
    Cat. No. WB5GDR-20230-60

    • Safety Device

    1. -Automatic reset function incoming power cut
    2. -Electric leakage circuit breaker

    • Option

    1. -Stainless steel trap(Acryal cover included)
  • Package Model VDO-PK-C3
    Vacuum Dry Oven SH-VDO-125NC
    Cold Trap SH-WB-5GDR(-20)
    Vacuum Pump SH-CV20
    Oil Mist Trap VOT-4080
    Dimension (WxDxH) 1103x768x1738mm / 43.42x30.24x68.42"
