1200°C Rotary Tube Furnace(300mm Hot Zone) Φ250

Installation of Fuse-type tubes and barriers prevents non-oxidizing materials from leaving the heating zone, enabling constant heat treatment and carbonization of input materials

Rotary Kiln uses highly non-oxidizing CNTs, graphene, nanomaterials, etc., which are difficult to process

  • Suitable for use at ambient temperatures below 1000°C
  • Batch-type rotary tube electric furnace for laboratories and small-scale production
  • Tube diameter 120Φ, 300mm Heating Zone
  • Gas atmosphere and vacuum atmosphere can be maintained with the Sealing Mask
  • Smooth and stable rotation even at the lowest rotation speed (2 rpm/min)
  • Barrier-equipped to prevent non-acidic materials from leaving the heating zone
  • Ball Flow Meter-equipped to inject a certain amount of gas
  • Vacuum & pressure gauge-equipped to check the pressure change inside the thermal reaction tube

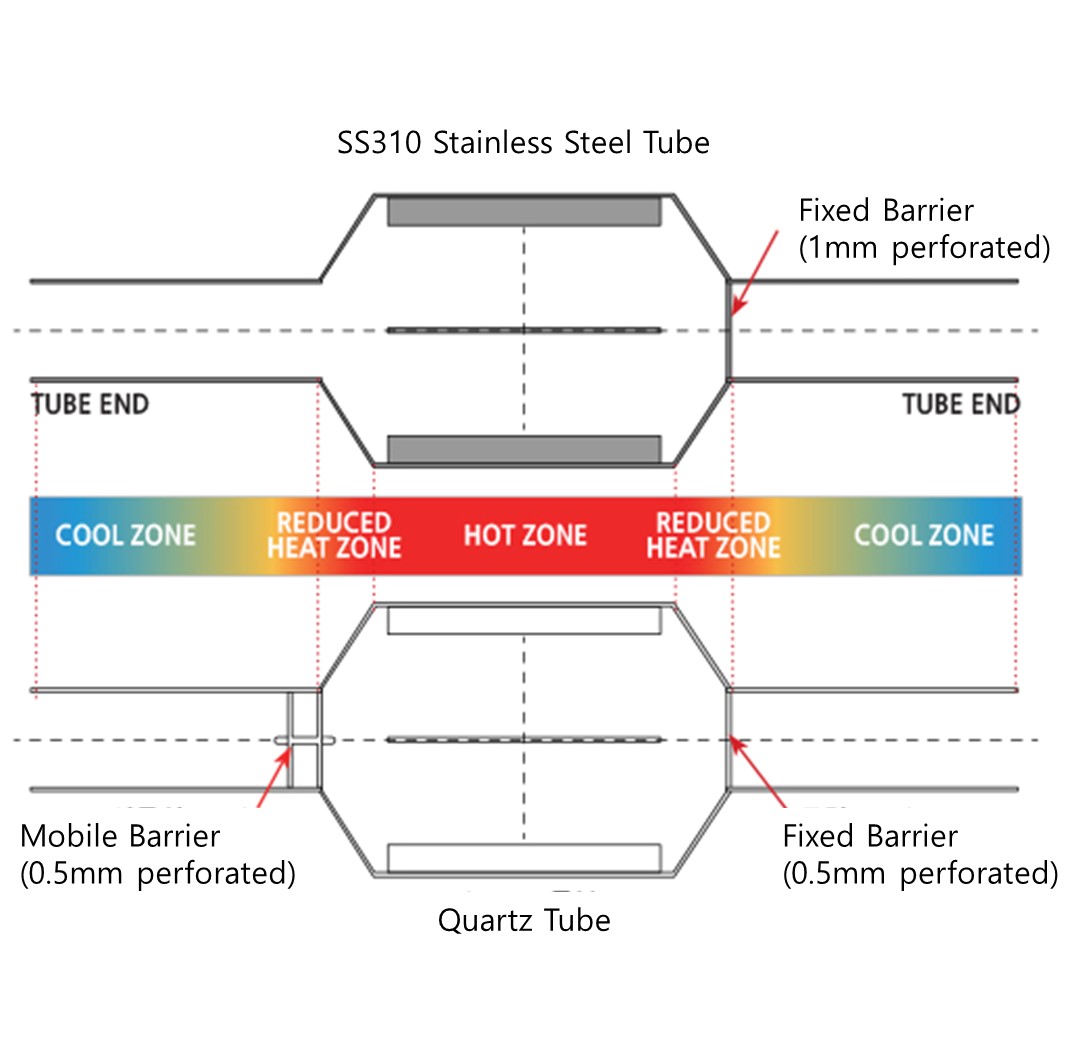

  • Fuse type SS310S Stainless Steel tube (Standard Tube) (Barrier 1mm perforation)
  • Specification

  • Inquiry


  •

      Areas of application
    • Biomass production and research field
    • Destructive testing laboratories who carry heat treatment of ceramic, alloy, titanium and etc for aerospace and metallic production industries.
    • Building companies who transforms metallic power such as nickel alloy into sintered materials by sintering.
    • Material technology providers who develop polymer composites and graphene materials.
    • Material innovation companies who do sintering in vacuum or in inert gases.
    • Subsea and surface injection system companies who need vacuum furnace for softening cycles, annealing and age hardening of Inconel 718 tubes.
    • Analytical research labs who perform various material testing with thermal treatment.
    • Medical implants manufacturers who anneal alloy powders.
    •  Material scientists in universities who do sintering materials such as polymer-derived ceramic parts.
    • Applied science engineers who process solid oxide fuel cells (SOFC).
    • Semiconductor manufacturers who anneal Gallium nitride (GaN) semiconductor wafer.
    • Engineering companies who do curing and sintering solutions in porous ceramic tubes.
    • Chemistry research departments who do the thermal treatments (stabilization in air and carbonization in argon) of carbon nanofiber precursors.
    • Graphene solution companies who produce graphene-based materials by CVD (Chemical Vapor Deposition) method. CVD furnace
    • Solid state battery manufacturer with polymer electrolyte, oxide electrolyte, sulfide electrolyte, phosphate electrolyte and etc.
  • 제품명 1200°C 배치식 회전튜브전기로 1200°C Rotary Tube Furnace
    Model SH-FU-250RTG300
    Max Temp
    1200℃ (2192℉)
    Temp Controller
    Programmable Controller (SP570)
    Tube Diameter & length(Fuse Type)
    total length(800mm)
    Heating Middle
    267.4 Φ x 4T x 220 mm (STS 310S)
    250 Φ x 5T x 220 mm (Quartz)
    Heating Reduce
    267.4 Φ x 4T > 60Φ x 2.8T x 40mm (STS 310S)
    250 Φ x 5T > 60Φ x 2.5T x 40mm (Quartz)
    Cooling End
    60 Φ x 2.8T x 250 mm (STS 310S)
    60 Φ x 2.5T x 250 mm (Quartz)
    Dimension External
    (W×D×H)
    1040 x 570 x 760 mm
    40.9 x 22.4 x 29.9"
    Heater Capa
    8.0 kW
    Tube Rotation Speed
    2 ~ 30 rpm
    Heater element
    Kanthal A-1
    Insulation
    Ceramic Board
    Gas Inlet Port
    1/4” tube Lock & valve
    Gas Exhaust Port
    1/4” tube Lock & valve & gauge
    Electronic Power
    220V, 50/60Hz, 1Φ
    37.0 A
    Electronic Power
    380V, 50/60Hz, 3Φ
    12.5 A
