Three Roll Mill

Equipment used in the process of evenly dispersing/pulverizing fine particles of a substance (㎛)

The main purpose is dispersion

 Three Roll Mill is a device used in the process of evenly dispersing fine particles within a material, and can also achieve an auxiliary crushing (㎛) effect.

  • High-precision design with precision up to 1㎛ (may vary depending on material)
  • Excellent durability and precision due to use of high-precision zirconia (ZrO₂) rollers
    (Concentricity < 2㎛, Straightness < 2㎛, Surface finish < 0.3㎛)
  • Easy-to-clean structure
  • Roller speed control function
  • Easy to adjust Holler gap using handle
  • Economical model with simple structure (SH-ROLL80)
  • Equipped with circulation port for roller surface temperature control (can be connected to chiller or high temp bath)
  • Easy to recover highly viscous materials by controlling the pressure of the discharge scraper knife
  • Specification

  • Inquiry

  •

    How it works


    조절 가능한 투입구 간격



      적용분야



    • 이차전지 분야
      전극(양극&음극) 슬러리의 균일화(미세분쇄) 및 분산 & 기판 코팅시 균일한 분산을 통한 품질향상에 사용됩니다.
    • 페인트 및 코팅
      잉크 제조시 색소를 미세하게 분산시키기 위해 널리 사용됩니다. 롤러 사이의 압력에 의해 색소 입자를 균일하게 분산시켜 잉크의 품질을 높입니다.
    • 페인트 및 코팅
      페인트 및 코팅 제조 공정에서 3롤 밀은 색상과 광택의 일관성을 유지하기 위해 사용됩니다. 고체 입자를 균일하게 분산시켜 페인트의 질감을 부드럽게 하고, 색상 균일성을 확보합니다.
    • 화장품 및 제약
      화장품 원료 및 반고체 약품(젤, 크림등)을 균일하게 혼합하여 제품의 질감을 향상시킵니다.
    • 고분자및 플라스틱
      고분자 혼합물이나 컴파운드의 균일한 분산을 위해 사용됩니다. 주로 색상, 첨가제 등을 혼합하는 데 사용되며, 제품의 물리적 특성을 향상시킵니다.

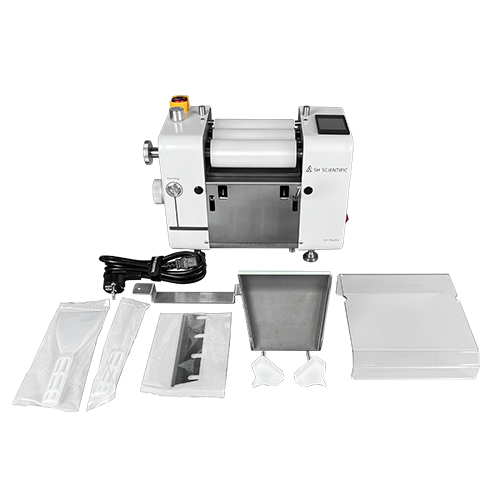

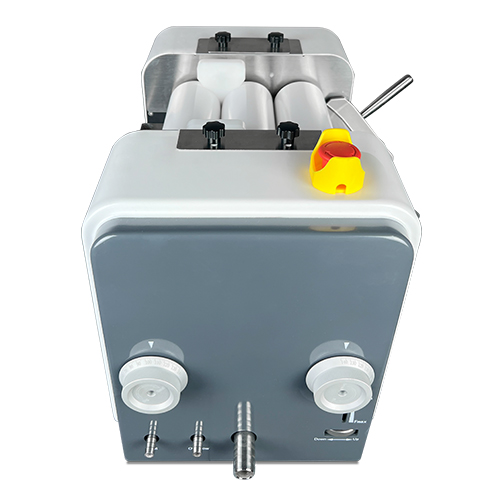

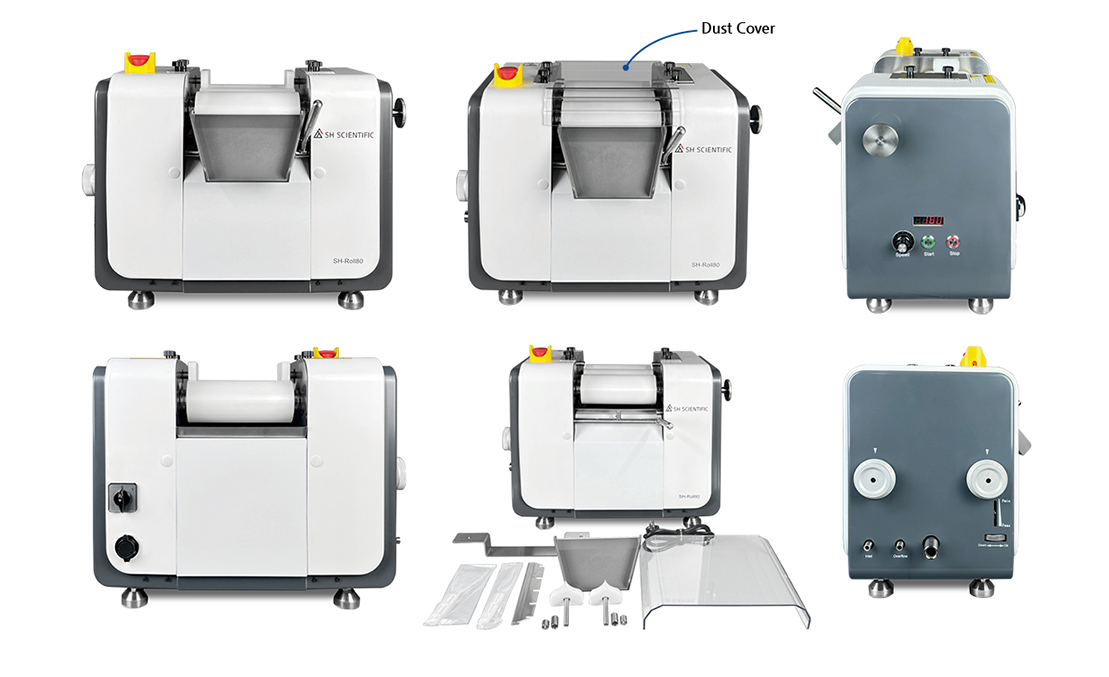

  • 제품명 3 롤밀 Three Roll Mill
    Model SH-ROLL80
    Capa
    0.02 ~ 20L/hour
    Roller Material
    ZrO₂ (지르코니아)
    Scraping Knife Material
    Stainless Steel x 1ea / Polyester (P.E) x 1ea
    Roller
    80mm X 200mm (3ea)
    Ratio of Transmission
    1 : 3 : 9
    Roller Speed Control
    By Knob
    Roller interval Control
    By Handle
    Circulation Port
    8mm Hose Barb (in/out)
    Dimension External
    (W×D×H )
    600X380X495 mm
    / 23.6X15.0X19.5"
    Weight
    75Kg
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
