STS Vessel Planetary Mixer 3 Liter

Simultaneous Planetary mixing & High speed complex dispersion & Vacuum degassing

Optimized for applications that require precise mixing and bubble removal, such as battery slurries, electrode materials, high viscosity compounds, and polymer composites

  • STS Vessel Planetary Mixer
  • STS Vessel Planetary Mixer
  • STS Vessel Planetary Mixer
  • STS Vessel Planetary Mixer
  • STS Vessel Planetary Mixer

STS Vessel Planetary Mixer

The STS Vessel Planetary Mixer is a high-performance system that combines planetary mixing + high speed complex dispersion + vacuum degassing to achieve uniform material mixing and maximize degassing efficiency.
It is specifically optimized for applications that require precise mixing and bubble removal, such as battery slurries, electrode materials, high viscosity compounds, and polymer composites.

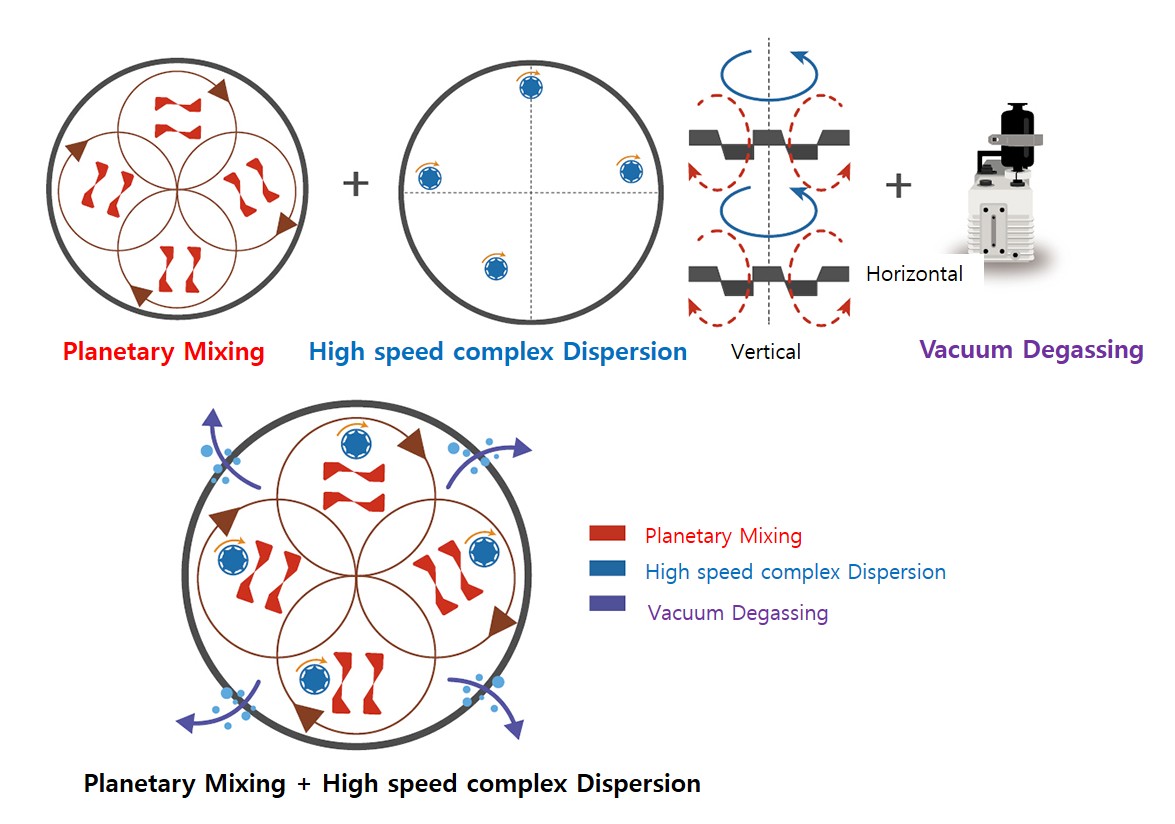

Operating Principle

Three key actions - planetary mixing, complex dispersion, and vacuum degassing - are applied simultaneously to ensure fast and efficient mixing of materials.

  • Planetary Mixing (Revolution + Rotation)
    The twist paddle performs planetary motion around the center of the stainless steel vessel, maximizing the mixing effect through combined revolution and self rotation.

  • Complex Dispersion Agitation (Centrifugal Force + Vortex Flow)
    The paddle rotates along the same trajectory as its planetary motion, generating both centrifugal force and vortex flow to rapidly disperse and mix high viscosity or complex materials.

  • Vacuum Degassing
    Air bubbles generated during mixing and dispersion are effectively removed using a vacuum pump, resulting in a homogeneous, bubble free mixture.






Planetary Mixer

Key Features

  • Double-Jacket STS304 Vessel
    The double layered mixing vessel (inner and outer walls) can be connected to an external circulation system to maintain a controlled temperature range from -10°C to 200°C.
    A temperature sensor embedded in the jacket structure allows real-time monitoring of the current heating or cooling status.

  • Gearbox Protection Cover
    The fully sealed gearbox prevents lubricant contamination and blocks external powder or material contact.
    The flat bottom design of the gearbox ensures no residue buildup and allows for easy cleaning and maintenance.

  • Simultaneous Planetary mixing & High speed complex dispersion & Vacuum degassing
    Achieves superior mixing performance for viscous and complex materials

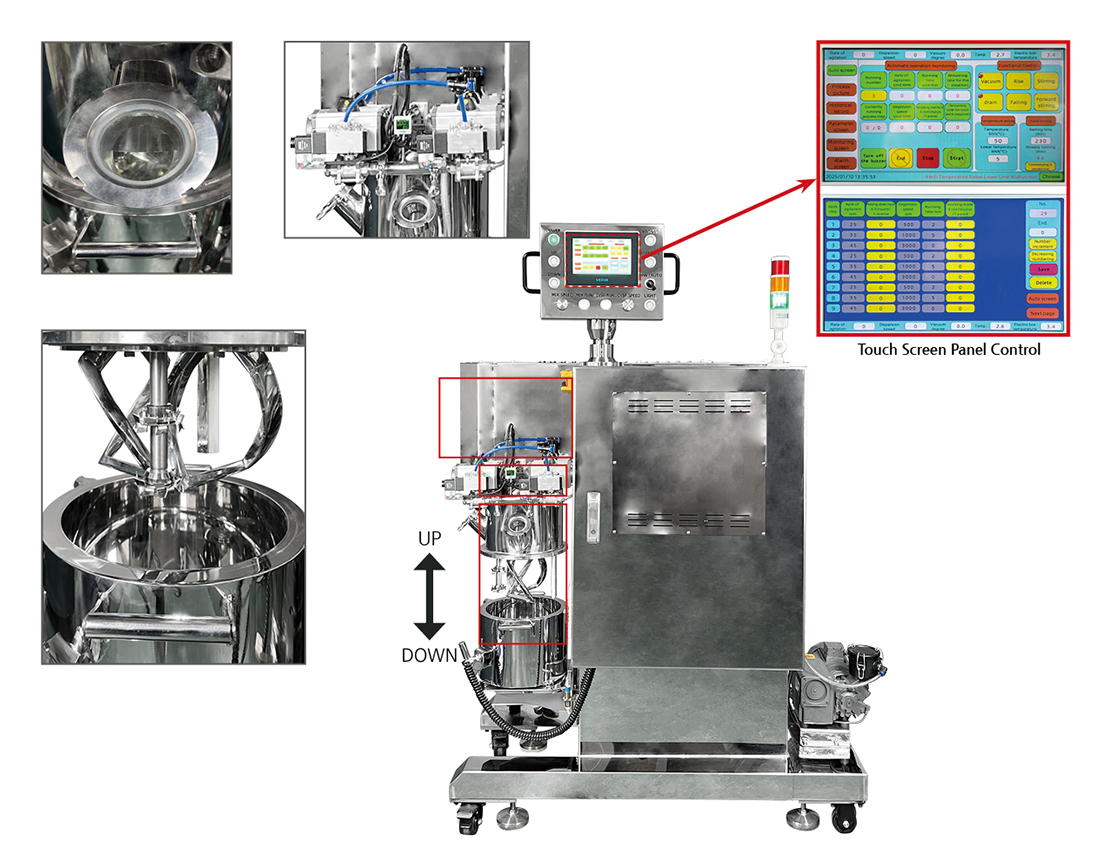

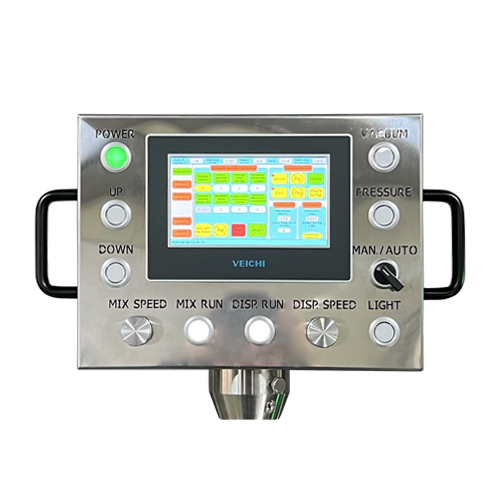

  • Intuitive Touchscreen Control Panel
    Easy setup and operation with recipe and parameter customization

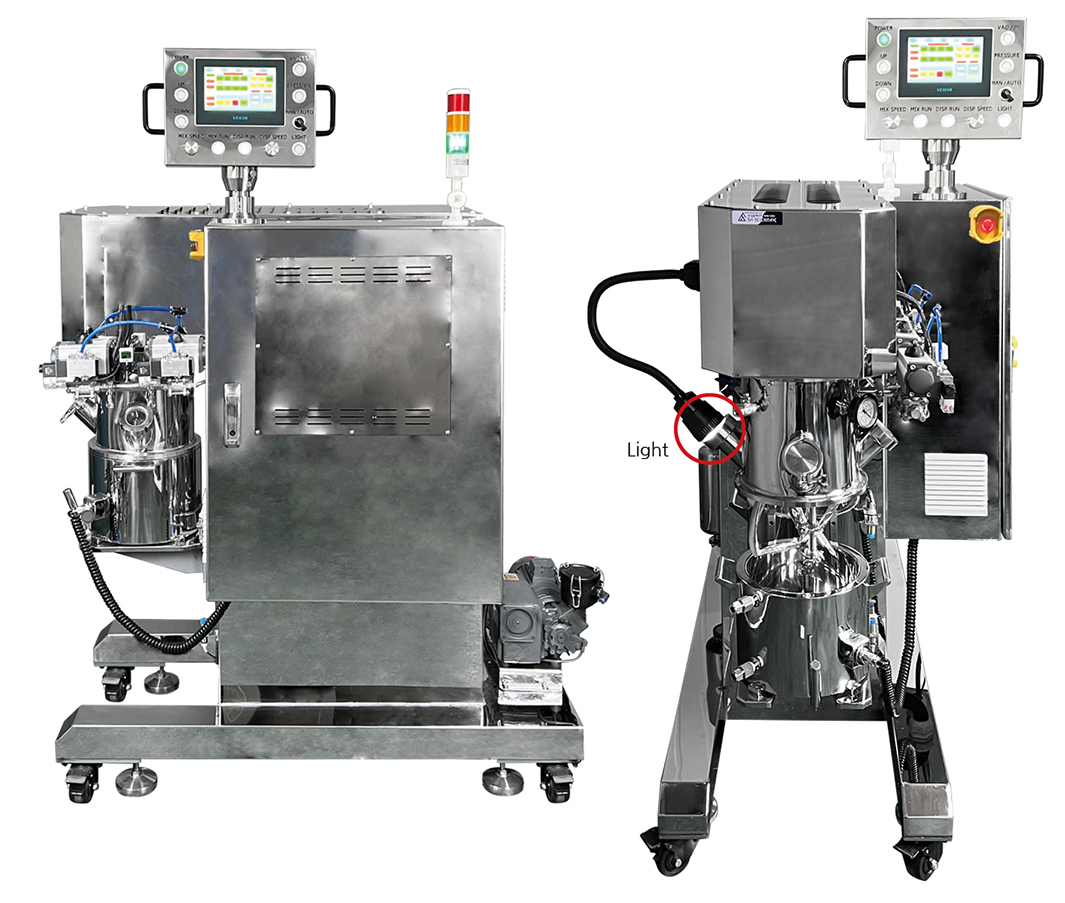

  • Intergrated Observation Light
    Allows real-time visual monitoring of the mixing process

  • Manual / Automatic Operation Modes

    • Manual Mode:
      Set a single segment with mixing speed, dispersion speed, and operation time. Operates under full vacuum.

    • Automatic Mode:
      Create up to 20 customized programs (29 segments per program), including mixing speed, dispersion speed, operation time, and pause intervals.
      Vacuum level is automatically controlled (up to -90 kPa) based on the degassing requirements.

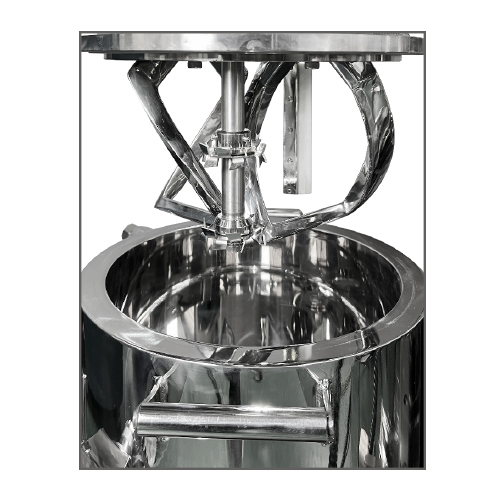

  • Ultra-High Strength Dual Stainless Steel Mixing Paddles
    Mixing paddles are made from Super Duplex Stainless steel, offering superior strength, hardness, wear resistance, and corrosion resistance.
    Precisely engineered and machined to ensure stable mixing, vacuum integrity, and long-term durability.

Stainless Steel Comparison

STS304 and STS316 are the most commonly used stainless steels in industrial applications. Super Duplex Stainless Steel offers enhanced performance for demanding environments.

MaterialsSuper Duplex Stainless Steel
STS304, STS316
Tensile Strenght (MPa)
800 ~ 1000
530 ~ 630
Hardness (HB)
235
187
Corrosion ResistanceExcellent
Good
Planetary Mixer



  • Specification

  • Inquiry

  • The STS Vessel Planetary Mixer is a high-performance system that combines planetary mixing + high speed complex dispersion + vacuum degassing to achieve uniform material mixing and maximize degassing efficiency.
    It is specifically optimized for applications that require precise mixing and bubble removal, such as battery slurries, electrode materials, high viscosity compounds, and polymer composites.

    Key Features

    • Double-Jacket STS304 Vessel
      The double layered mixing vessel (inner and outer walls) can be connected to an external circulation system to maintain a controlled temperature range from -10°C to 200°C.
      A temperature sensor embedded in the jacket structure allows real-time monitoring of the current heating or cooling status.

    • Gearbox Protection Cover
      The fully sealed gearbox prevents lubricant contamination and blocks external powder or material contact.
      The flat bottom design of the gearbox ensures no residue buildup and allows for easy cleaning and maintenance.

    • Simultaneous Planetary mixing & High speed complex dispersion & Vacuum degassing
      Achieves superior mixing performance for viscous and complex materials

    • Intuitive Touchscreen Control Panel
      Easy setup and operation with recipe and parameter customization

    • Intergrated Observation Light
      Allows real-time visual monitoring of the mixing process

    • Manual / Automatic Operation Modes

      • Manual Mode:
        Set a single segment with mixing speed, dispersion speed, and operation time. Operates under full vacuum.

      • Automatic Mode:
        Create up to 20 customized programs (29 segments per program), including mixing speed, dispersion speed, operation time, and pause intervals.
        Vacuum level is automatically controlled (up to -90 kPa) based on the degassing requirements.

    • Ultra-High Strength Dual Stainless Steel Mixing Paddles
      Mixing paddles are made from Super Duplex Stainless steel, offering superior strength, hardness, wear resistance, and corrosion resistance.
      Precisely engineered and machined to ensure stable mixing, vacuum integrity, and long-term durability.

    Application Fields

    • Battery Industry
      Slurry and electrode material mixing & vacuum degassing for lithium-ion and next-gen batteries.

    • Electronics & Advanced Materials
      Silcone compounds, nanomaterials, conductive inks, thermal interface materials

    • Pharmaceutical & Biotech
      Uniform mixing of high-viscosity formulations such as gels, creams, and ointments

    • Cosmetic Industry
      Emulsions, serums, and other viscous cosmetic base materials

    • Chemical & Adhesive Applications
      Mixing of adhesives, sealants, inks, and resins with precise consistency

  • Product STS Vessel planetary mixer
    Model SH-DPM02
    Container Capa
    3 Liter
    Effective Capa
    2 Liter
    Speed Range
    Revolution
    0~61 rpm
    Rotation  x 2 paddle
    0~125 rpm
     Dispersion x 4 blade
    0~7500 rpm
    Temp Range
    -10℃~ 200℃ (An external Circulation Bath connection is required)
    Vacuum Range
    -98 kPa ( 25 mmHg , 25 Torr)
    Vessel Up&Down
    Automatic (by pneumatic)
    Up&Down interval
    180mm
    Material
    Vessel STS304
    Mixing &Dispersion Paddle
    Super Duplex Stainless Steel
    Body
    STS304
    Dimension (mm)
    Container(Dia x H)
    180 Dia x 120 H
    External
    500 x 800 x 1400mm
    Power
    380V, 3 Phase , 2.3KW
    Weight
    420 Kg



    ° Safefy Device

      - Various Alarms & Auto Stop Functions

      - Electronic Leakage Breaker

      - Over current & Load protection

      - Emtergency Stop Buttonh (Button)
