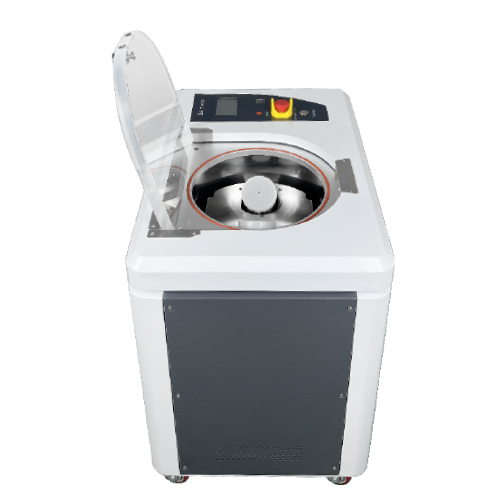

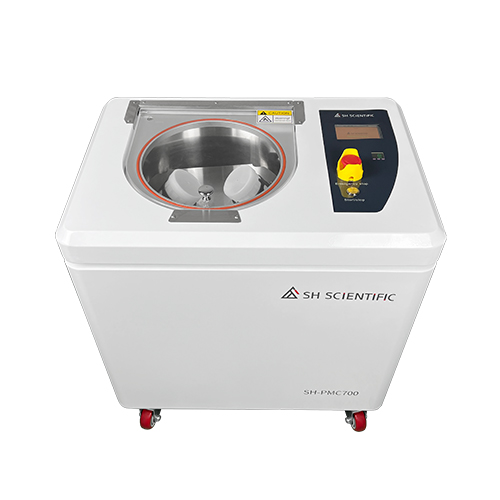

Planetary Mixer SH-PMC700

Planetary Mixer with Double Cup Holder

Simultaneous Mixing & Defoaming with Revolution + Rotation + Vacuum

  • Planetary Mixer
  • Planetary Mixer
  • Planetary Mixer
  • Planetary Mixer
  • Planetary Mixer
  • Planetary Mixer
  • Planetary Mixer
  • Planetary Mixer
  • Planetary Mixer

Planetary Mixer is engineered to deliver simultaneous high-speed revolution and rotation, enabling the uniform mixing of materials with outstanding consistency.
By integrating a vacuum system, it effectively removes air bubbles formed during mixing, achieving maximum efficiency in both mixing and defoaming-perfect for high viscosity or sensitive materials.

Simultaneous revolution, rotation, and vacuum operation enables fast and efficient production of homogeneously mixed materials.
This system is ideal for processing high-viscosity substances such as silicone, polymer compounds, solid particles, highly viscous inks, gels, adhesives, as well as composite materials consisting of powders and liquids.

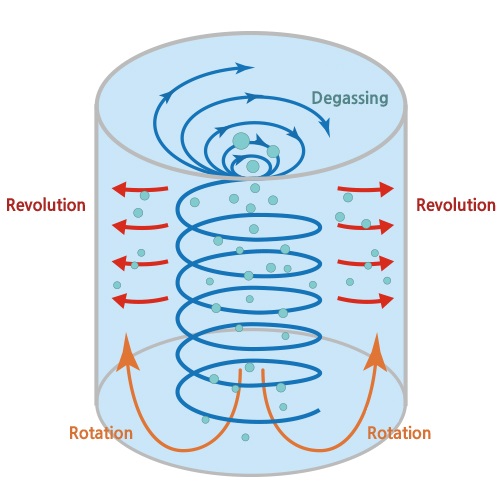

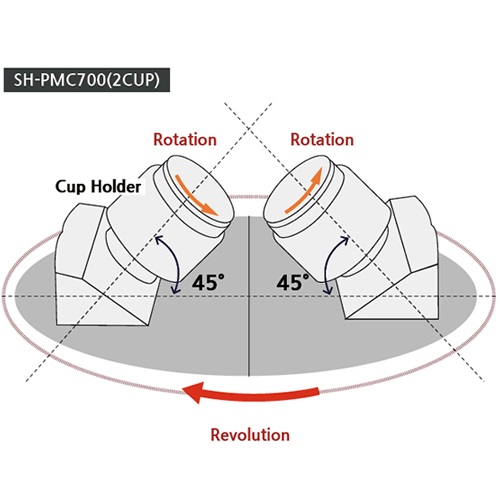

Operating Principle

  • Revolution
    The carrier rapidly rotates around the central axis, generating centrifugal force that effectively disperses materials and separates air bubbles.

  • Rotation
    The carrier itself rotates, creating a vortex flow inside the cup to ensure thorough and uniform mixing of materials.

  • Vacuum Degassing
    By creating a vacuum inside the mixing chamber, air bubbles generated during revolution and rotation are efficiently removed, resulting in high-quality, bubble-free materials.

행성믹서 feature

Key Features

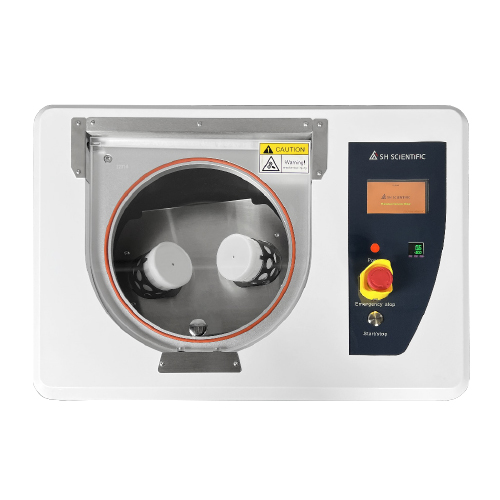

  • Convenient Dual 350ml Single Cups (P.E)
    Comes standard with two 350ml cups for easy loading and operation.

  • Versatile Adaptor & Cup Compatibility (Optional)
    Supports various cup sizes: 50ml, 150ml, and 250ml with optional adaptors.

  • Simultaneous Revolution + Rotation + Vacuum Operation
    Integrated vacuum pump allows for efficient mixing and defoaming under vacuum.

  • Advanced Program Control
    Stores up to 5 programs with 3 customizable recipes, allowing independent adjustment of revolution speed and vacuum level.

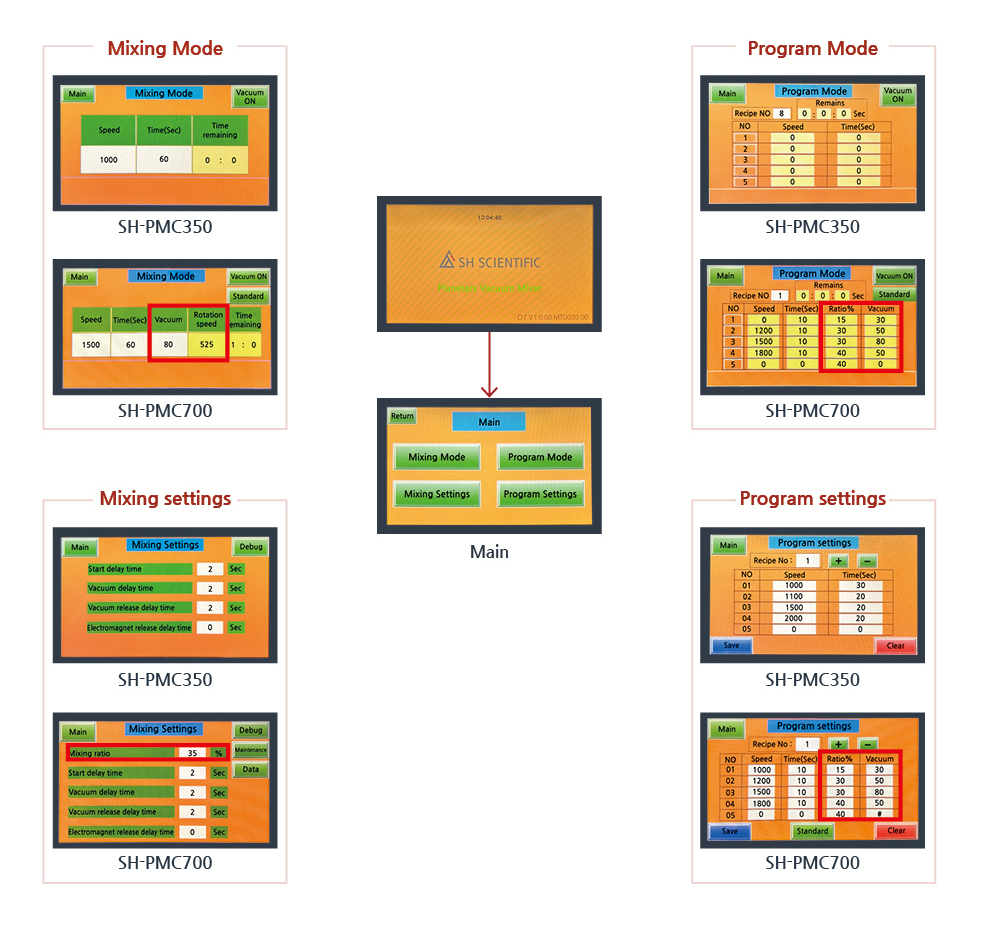

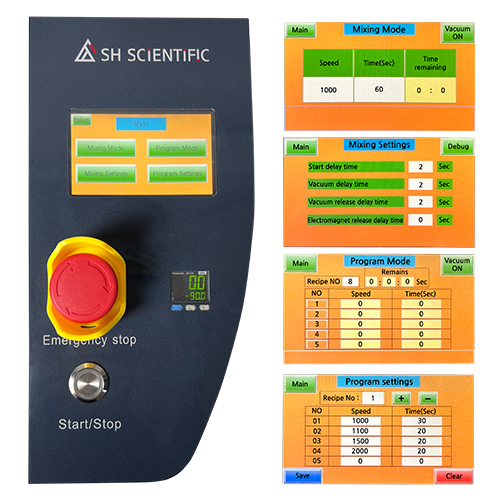

  • Intuitive Touch Screen Panel
    User-friendly interface for seamless operation and monitoring.

Planetary Mixer
  • Specification

  • Inquiry

  • Planetary Mixer is engineered to deliver simultaneous high-speed revolution and rotation, enabling the uniform mixing of materials with outstanding consistency.

    By integrating a vacuum system, it effectively removes air bubbles formed during mixing, achieving maximum efficiency in both mixing and defoaming-perfect for high viscosity or sensitive materials.


    Simultaneous revolution, rotation, and vacuum operation enables fast and efficient production of homogeneously mixed materials.
    This system is ideal for processing high-viscosity substances such as silicone, polymer compounds, solid particles, highly viscous inks, gels, adhesives, as well as composite materials consisting of powders and liquids.

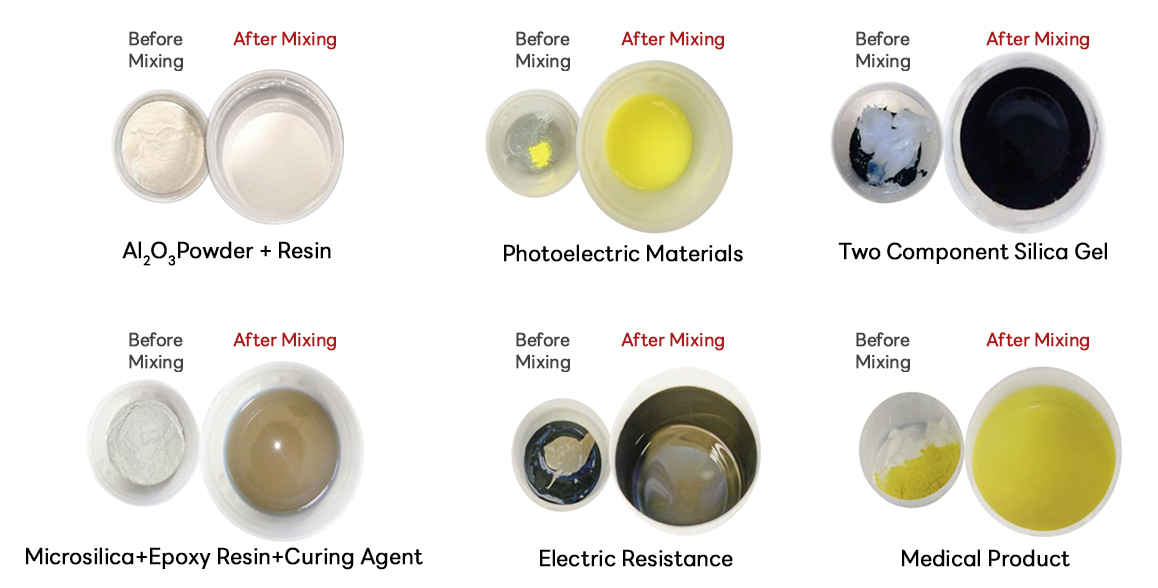

    Before and After Mixing Comparison

    Comparison of the Mixing


    Comparison of the Mixing

    Application Fields

    • Electronics & Electrical Materials
      Precise mixing of high performance materials such as adhesives, conductive inks, and nanomaterials used in electronic and electrical applications.

    • Battery Industry
      Uniform dispersion and bubble free mixing of battery slurries and electrode materials for lithium-ion and next-generation batteries.

    • Chemical & Pharmaceutical Industries
      High-viscosity substances, active pharmaceutical ingredients, and cosmetic formulations are mixed with exceptional consistency and precision.

    • Food Industry
      Efficient processing of viscous food products such as chocolate and pastes, ensuring smooth texture and quality.

  • Product Planetary Mixer
    Model SH-PMC700
    Capacity
    350ml x 2 cup,  Recommended capacity (175ml, 200g ) x 2
    Speed
    Revolution : 130 ~ 3000 R.P.M, Rotation : Invariable By Revolution
    Vacuum
    -99KPa, 330L/min
    Porgram Setting
    3 Segment/Pattern, 5Pattern
    Dimension External
    (W×D×H )
    730x510x790 mm
    / 28.74x20.07x31.10"
    Weight
    115Kg
    Power
    220V, 1P, 1.75KW, 8A





    ° Standard Accessory

     - 350ml Cup



    ° Optionals
     - 50ml,150ml, 250ml Cup
     - Holder for Cup

    ° Safety Device

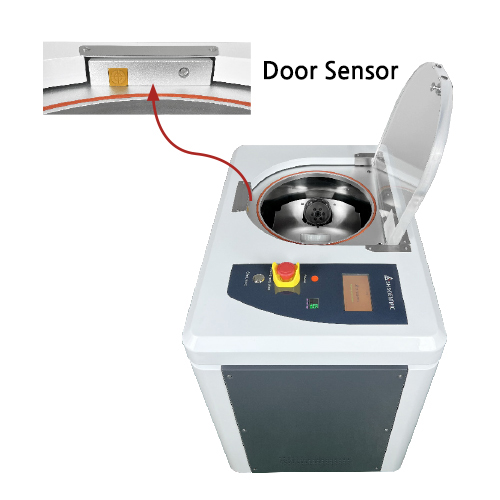

     - Door Cover Open alarm & Auto Stop Operation
     - Vacuum Leak Auto Stop Operation
     - Electronic Leakage Breaker
     - Over Current & Load Protection
     - Emergency Stop Button
