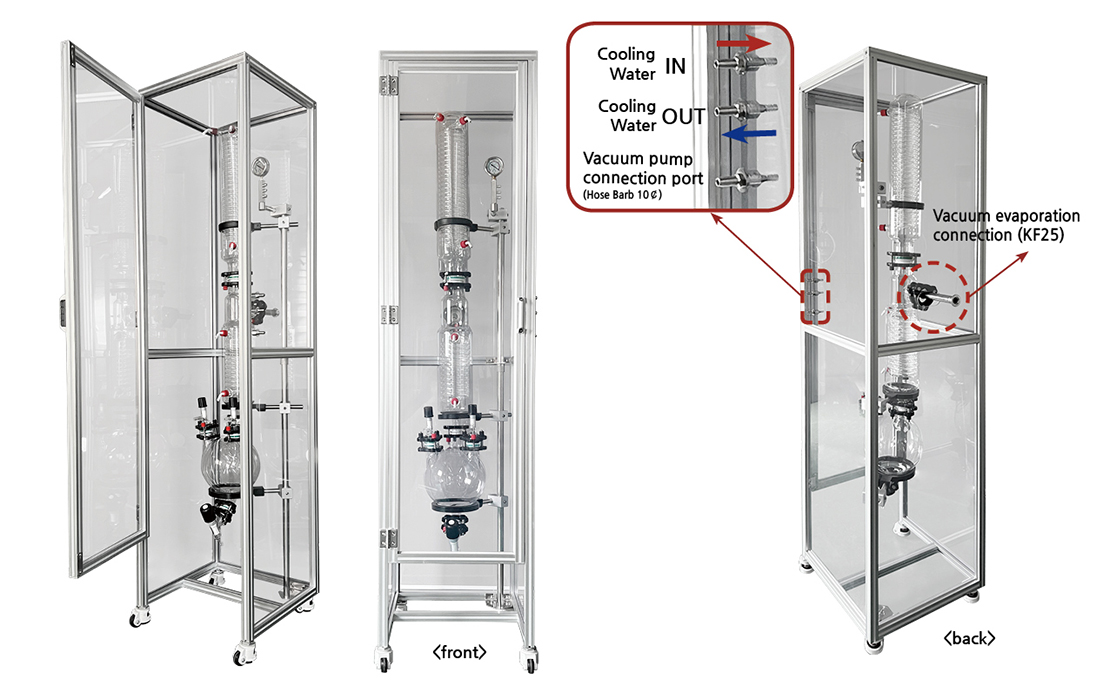

SH Glass Condenser for Vacuum Evaporator & Oven SH-CE20
  • Devices for recovering large amounts of water vapor and organic solvents generated during vacuum evaporation and drying
  • Borosilicate 3.3 grade glass material
  • Gaskets and valves consisting of Teflon and Byton for excellent chemical resistance

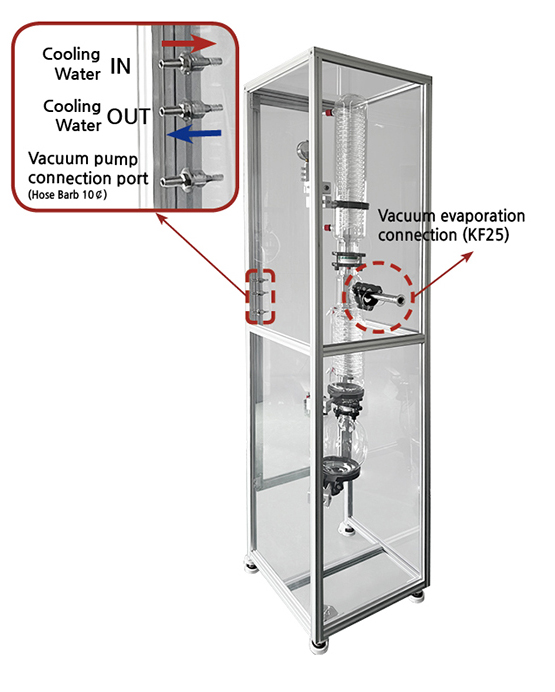

  • Using a valve connected between the condenser and the receiving flask, condensate drainage is possible without vacuum release
  • Made of Du-Aluminum frame and front transparent PVC, Safty frame is excellent for observation and safety
  • Easy to move and fix with 4 horizontally adjustable casters
  • Specification

  • Inquiry


  •

    The outside




  • Model SH-CE20
    Glass material Borosilicate 3.3
    Safty Frame Du-Aluminum & PVC
    Cooling Area 1.4 ㎡
    Receiving Flask 10 Liter

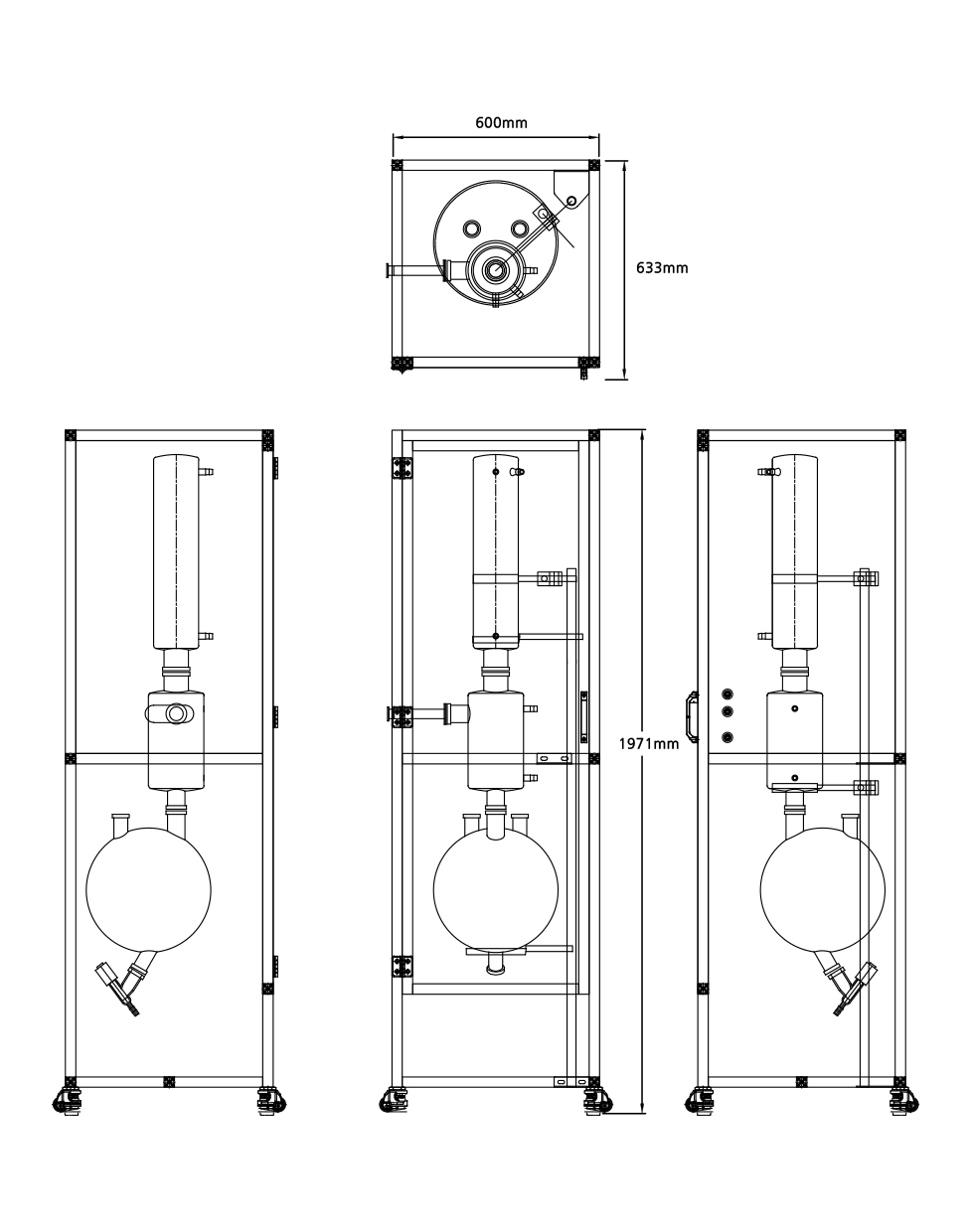

    Dimension(WxDxH) 600x633x1971mm 23.62x24.92x54.76"
    Standard Chiller (option) SH-WB-20CDR(-25)
    Cooling Capa (Based on water) MAX 5.0 L/H, Standard Chiller (when used)
    Application Model SH-VDO-125NG, SH-VDO-175NG, SH-VDO-252NG, SH-VDO-216NG, SH-VDO-125NS
