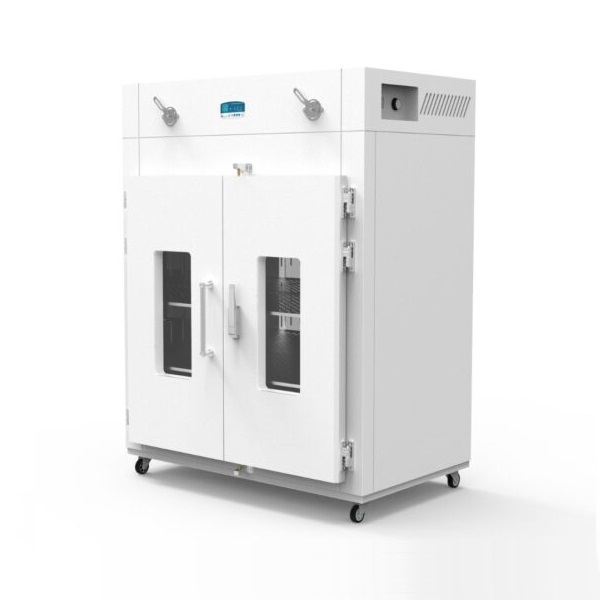

1152FG – 200°C – SH Large Scale Drying Oven

200℃ Industrial Drying Oven

SH-IDO-1152FG(1152L Chamber)



  • 1152L chamber (41 cu ft) forced convection industrial drying oven
  • Suitable for drying materials in bulk under 180°C
  • Industry best and second to none temperature distribution and uniformity thanks to wide air duct design and unique air curtain feature.
  • Powerful heaters twice as strong as other ovens
  • Specially selected chemical resistant door sealing
  • Perfect corrosion protection of control box against fumes and vapor
  • Interior panels are conveniently disassembled for cleaning. GMP maintenance requirement
  • Over temperature protection
  • TERPENE TRAP available in case you dry plants and biomass
  • Specification

  • Documents

  • Inquiry

  • The forced convection drying oven delivers efficient sample drying and sterilization for labs and manufacturers.
    Featuring an internal fan that circulates hot air throughout the chamber, this oven achieves outstanding temperature uniformity and swift heat recovery.

    SH Scientific’s Offering
    Our industrial- and commercial-sized drying ovens offer substantial capacity, exceptional temperature uniformity and stability, and precise thermal control.

    Distinguishing Features

    • Superior thermal management: An expansive air duct system and a distinctive air curtain feature achieve best-in-class temperature distribution and uniformity.
    • Enhanced heating power: Our ovens heat quickly and efficiently, with twice the heating power found in competing models.

    SH Scientific’s drying ovens are engineered to meet the rigorous demands of both research and industrial applications, providing a reliable and high-performing solution for your drying and sterilization needs.

    Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.

  • Model SH-IDO-1152FG
    Air circulation type Forced convection
    Capacity 1152liters (41 cu ft)
    Temperature range Ambient +10°C to 180°C
    Temperature stability +/-0.1°C
    Temperature uniformity +/-2.5% at set temperature
    Controller Microprocess PID membrane touch digital controller
    * Temp & time control or temp only control is subject to change
    Air intake Top 100mm diameter
    Air exhaust Top 100mm diameter
    Shelves Perforated.

    A type – 3 shelves (max 38 shelves available)

    B type – 6 shelves (max 76 shelves available)

    Heater 9kW
    Internal dimension/material 1200x800x1200mm/stainless steel
    External dimension/material 1480x1010x1950mm/steel plate with powder coated
    Weight 415kg
    Power supply 220V, 50/60Hz, 3p, 22.6A



  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
