100TH – WG – 1500°C – SH Tube Furnace w/ Gas Supply System

Max Temp 1500℃ tube furnace Gas supply package

SH-FU-100TH-WG-Basic

Also available in 50mm tube size, 80mm tube size and 120mm tube size.

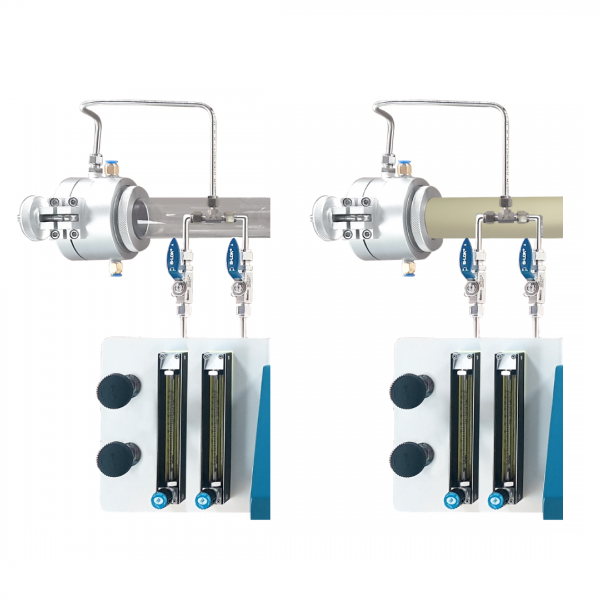

  • High temperature tube furnace with inert gas flow management system including 1 alumina tube, 1 ball type gas flow meter, 2 aluminum sealing masks, and stainless steel 316 valves, pipes and fittings.
  • Max temperature 1500°C. Recommended ideal running temperature is 1350°C or below.
  • 100mm (4″) diameter, 300mm (12″) hot zone
  • Easy assembly. Plug and play style.
  • Great system for non-oxidation atmosphere experiment and treatment
  • Fast cool down with inert gas flow
  • Can be bundled with vacuum pump and chiller as turn-key vacuum tube furnace system (Go to turn-key vacuum tube system category)
  • Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
  • Double housing and low surface temperature (29~30°C at 800°C)
  • 50/80/100/120mm tube available. 300/600mm hot zone available
  • Great durability thanks to SiC heating element
  • Light weight and prompt heat up thanks to ceramic insulation
  • Convenient design for sample loading
  • Built in over temp protector
  • SCR operation and built in programmable controller provides low noise operation and precise temp control (+/-1°C)
  • Specification

  • Documents

  • Inquiry

  • Built in South Korea, our tube furnaces offer unparalleled efficiency and versatility. Every model delivers industry-standard performance and endless customization, all at surprisingly accessible prices.

    • Standalone tube furnace (STG/LTG series): Ideal for basic applications requiring precise heating.
    • Tube furnace with gas flow management (WG series): Enhances control over atmospheric conditions, perfect for sensitive experiments.
    • Turn-key vacuum tube furnace system (PK-G series): A comprehensive solution including a gas flow management system, vacuum pump, and chiller for advanced research needs.

    Technical Excellence
    SH Scientific’s tube furnaces are increasingly used in cutting-edge fields, including secondary and graphene battery research, polymer composites, and 3D printing material treatment.

    Whatever configuration you choose, you and your team can expect:

    • Wide temperature range: STG-WG/LTG-WG series operates at up to 1200° C with optimal performance at 1000° C.
    • Programmable heating zones: Built-in 45-step controller for complex cyclic treatments, with heating zones of 1 x 300 mm (STG-WG) or 1 x 600 mm (LTG-WG).
    • Extensive tube size options: Standard diameters are 50/80/100/120 mm. Significantly larger diameters are available upon request.
    • Rapid heating & cooling: Minimize wait times with efficient thermal management.
    • Economical sample treatment: A cost-effective choice for processing small samples, especially with volatile materials or special atmospheric requirements.
    • Advanced features: Digital programmable controllers, single or three hot zones, double-shell construction for stability, and customizable tube diameters.

    Customization & Accessories
    We specialize in gas flow management systems. Our turn-key vacuum tube furnace system (with recirculating chillers and low-noise vacuum pumps) is a popular upgrade for more seamless set-up and use.
    This particular configuration features a seamless stainless steel 316 flow line; valve and connector; gas-tight sealing mask; and quartz, ceramic, or alumina tube.
    Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.

  • Model SH-FU-100TH-WG
    Max temperature 1500°C
    Continuous running temperature 1350°C
    Tube diameter 100mm
    Controller Programmable controller
    Sensor R type
    Heater 6.4kW
    Hot zone 300mm
    Heating element SiC
    Insulation Ceramic
    External size 690x550x640mm (furnace only)
    Weight 114kg (furnace only)
    Power supply 220V, 50/60Hz, 1p, 28A
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
