Recirculating Chiller SH-WB-5CDR(-30)

-30℃ to Ambient

5(Liter)

칠러, 냉동순환수조, SH-WB-5CDR(-30), 냉각기
  • Specification

  • Inquiry

  • Model SH-WB-5CDR
    Order Number SH-WB-5CDR(-30)
    Temp Controller Microprocessor digital controller
    Temp Control Range Ambient -50℃ to Ambient (Low limit -30℃) (Only Cooling)
    Ambient -28℉ to Ambient
    Reservior Capa 5 L
    Recirculating
    Pump

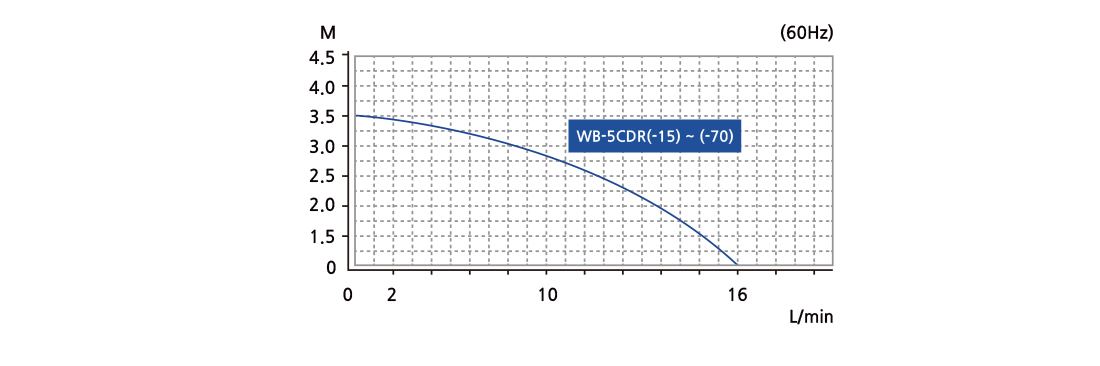

    Max flow 16 L/min (tested with distilled water at 20℃)
    Max Head
    3.5 meter (tested with distilled water at 20℃)
    Max pressure 5.1 psig (tested with distilled water at 20℃)
    In/out port 13.0 mm (O.D) / Stainless Steel pipe or 1/2" Pt Female connector (*option)
    Dimension Internal
    (Φ×H)
    180Φ×210Hmm
    7.09Φx8.27H''
    Dimension External
    (W×D×H)
    465×560×847mm
    18.18x22.04x33.35''
    Weight 48 Kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Power 230V, 60Hz, 1Φ
    Cat. No. WB5CDR-30230-60
      • Safety Device
    • -Automatic reset function incoming power cut
    • -Electric leakage circuit breaker
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
