Recirculating Chiller SH-WB-5CDR(-70)

-70℃ to Ambient

5(Liter)

  • Equipped Circulating Pump
  • Equipped Digital Temp Controller

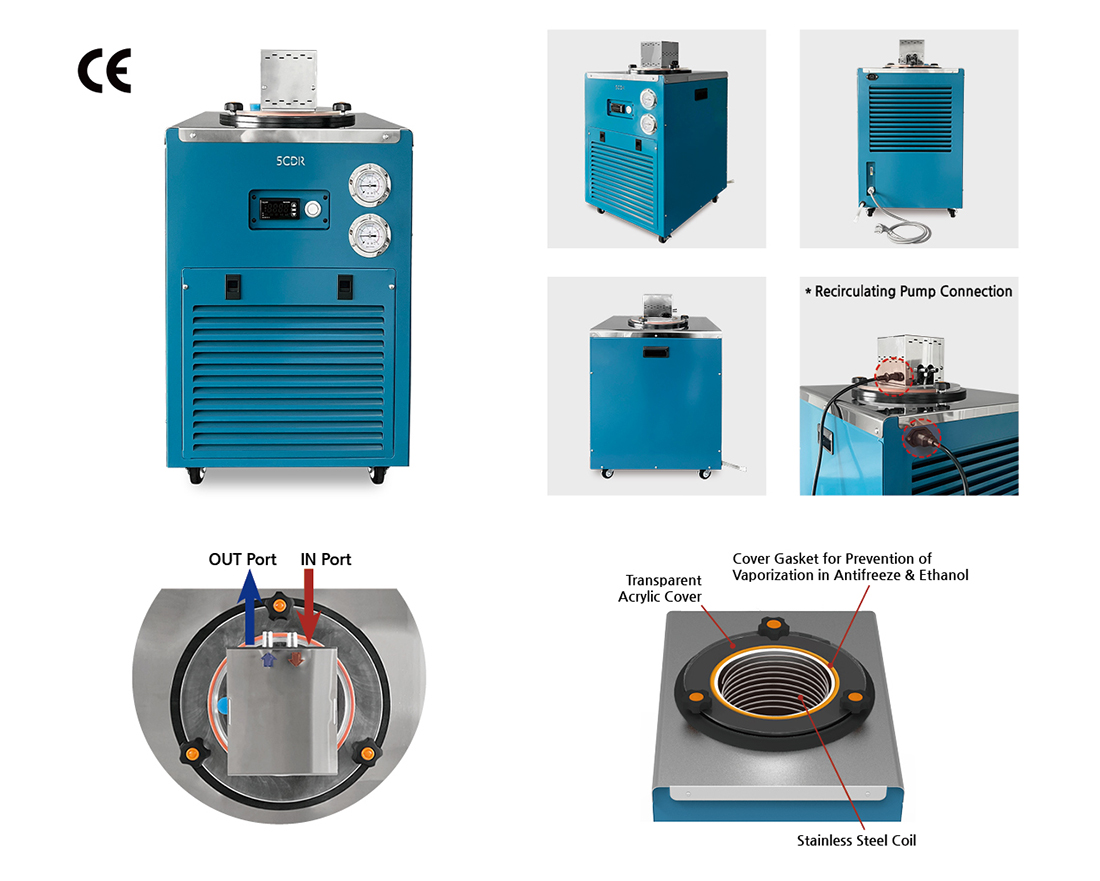

  • Prevent antifreeze vaporization by Cover Gasket
  • No leakage of antifreeze by seamless structure inner bath
  • Easy to observe inside bath through transparent cover
  • Under patent product (Prevention of freezing external of unit)
  • Equipped Stainless Steel Coil
칠러, 냉동순환수조, SH-WB-5CDR(-30), 냉각기
  • Specification

  • Inquiry

  • Model SH-WB-5CDR
    Order Number SH-WB-5CDR(-70)
    Temp Controller Microprocessor digital controller
    Temp Control Range Ambient -90℃ to Ambient (Low limit -70℃) (Only Cooling)
    Ambient -162℉ to Ambient
    Reservior Capa 5 L
    Recirculating
    Pump

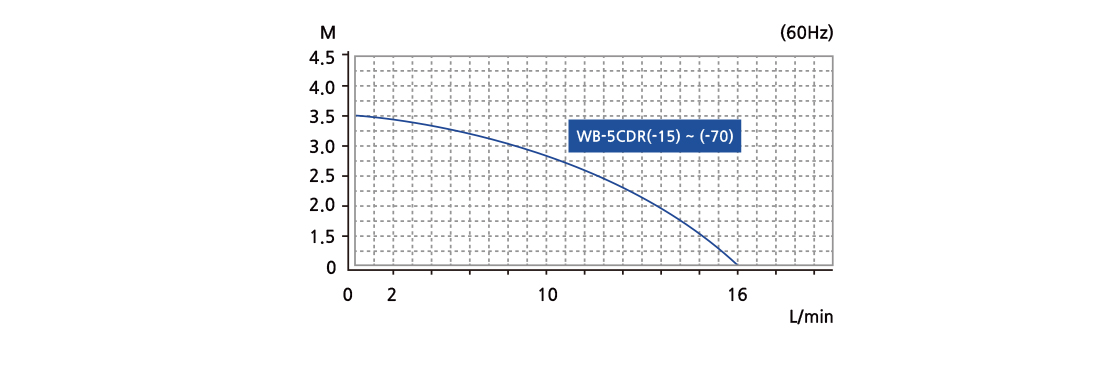

    Max flow 16L/min (tested with distilled water at 20℃)
    Max Head
    3.5 meter (tested with distilled water at 20℃)
    Max pressure 5.1 psig (tested with distilled water at 20℃)
    In/out port
    13.0 mm (O.D) / Stainless Steel pipe or 1/2" Pt Female connector (*option)
    Dimension Internal
    (Φ×H)
    180Φ×210Hmm
    7.09Φx8.27H''
    Dimension External
    (W×D×H)
    505×620×887mm
    19.88x24.41x34.92''
    Weight 75 Kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Power 230V, 60Hz, 1Φ
    Cat. No. WB5CDR-70230-60
      • Safety Device
    • -Automatic reset function incoming power cut
    • -Electric leakage circuit breaker
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
