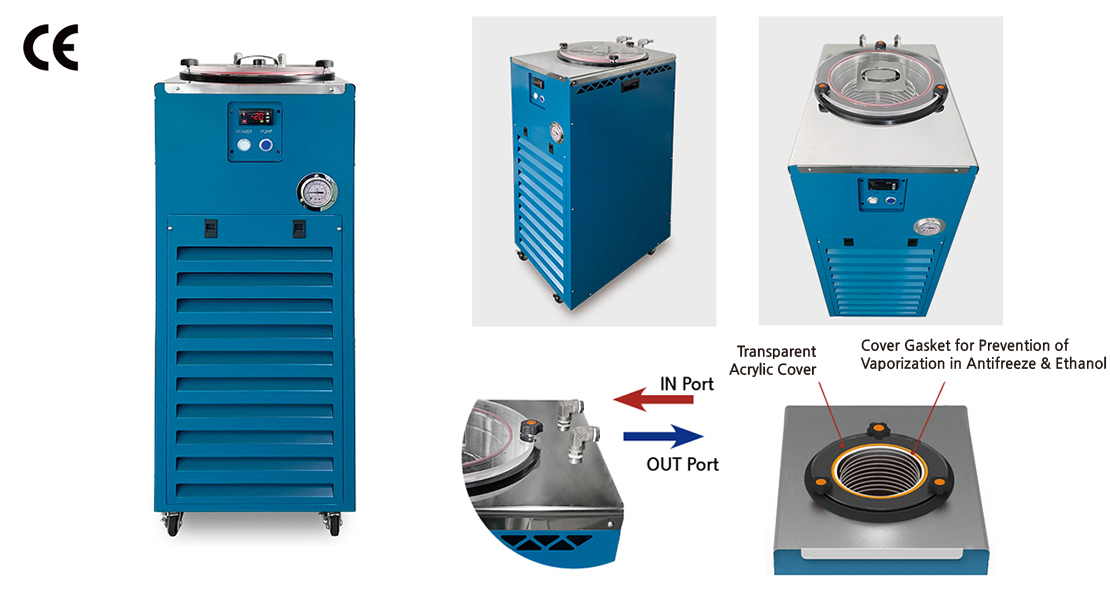

Recirculating Chiller SH-WB-40CDR

-20℃ to Ambient

40(Liter)

칠러, 냉동순환수조
  • Specification

  • Inquiry



  • Cooling capacity
    Model WB-5CDR(-30) WB-12CDR WB-20CDR WB-40CDR
    220V / 60Hz
    W W W W
    -30 -22 245 -30 -22 - -30 -22 - -30 -22 -
    -20 -4 405 -20 -4 600 -20 -4 1080 -20 -4 1760
    -10 14 620 -10 14 945 -10 14 2480 -10 14 2923
    0 0 1030 0 0 1420 0 0 3350 0 0 4870

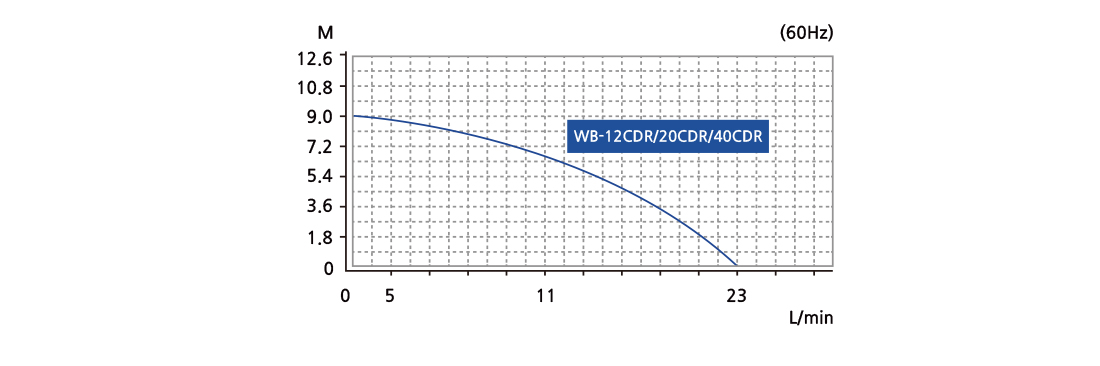

    Recirculating pump curve
    칠러, 냉동순환수조 펌프 그래프

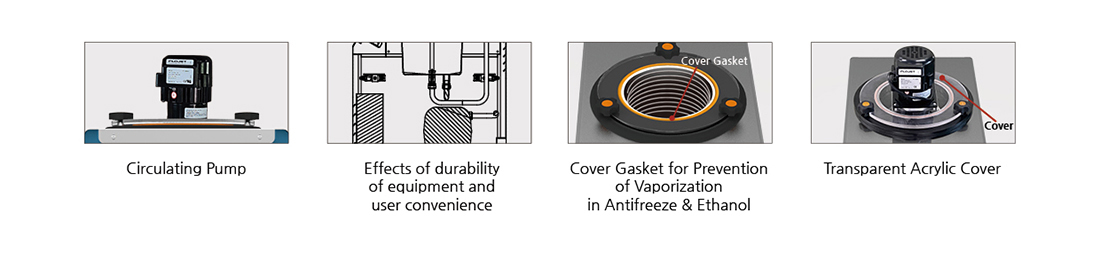

    Feature
    칠러, 냉동순환수조 특징 및 장점

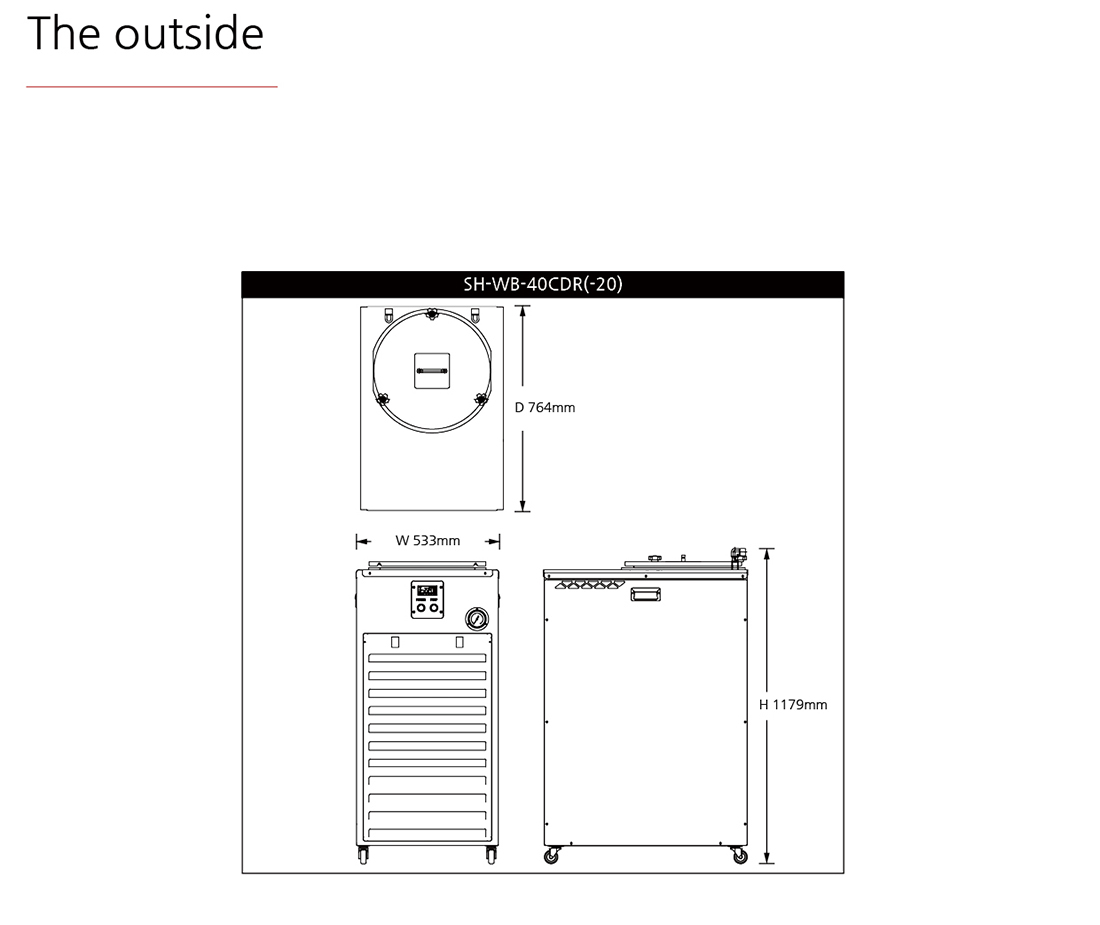

    냉동 순환 수조 칠러 Recirculating Chiller SH-WB-40CDR 외형도
  • Model SH-WB-40CDR
    Order Number SH-WB-40CDR(-20)
    Temp Controller Microprocessor digital controller
    Temp Control Range Ambient -45℃ to Ambient (Low limit -20℃) (Only Cooling)
    Ambient -28℉ to Ambient
    Reservior Capa 40 L
    Recirculating
    Pump
    Max flow 23.0 L/min (tested with distilled water at 20℃)
    Max Head
    9 meter (tested with distilled water at 20℃)
    Max pressure 12.8 psig (tested with distilled water at 20℃)
    In/out port
    1/2" Pt Female connector

    Dimension Internal

    (Φ×H)

    350Φx390Hmm
    13.78Φx15.35H''
    Dimension External
    (W×D×H)
    533x764x1179mm
    20.98x30.08x46.42''
    Weight 140 Kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Power 230V, 60Hz, 1Φ
    Cat. No. WB40CDR230-60
      • Safety Device
    • -Automatic reset function incoming power cut
    • -Electric leakage circuit breaker
