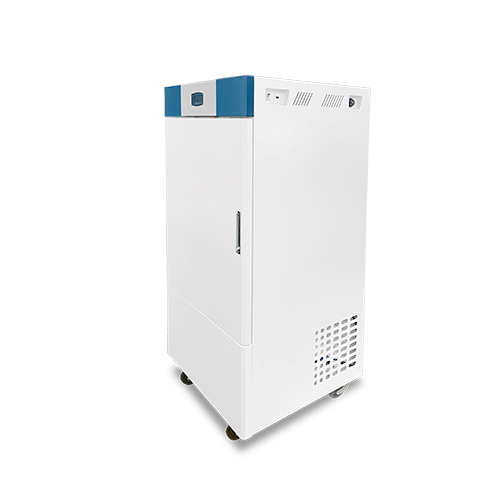

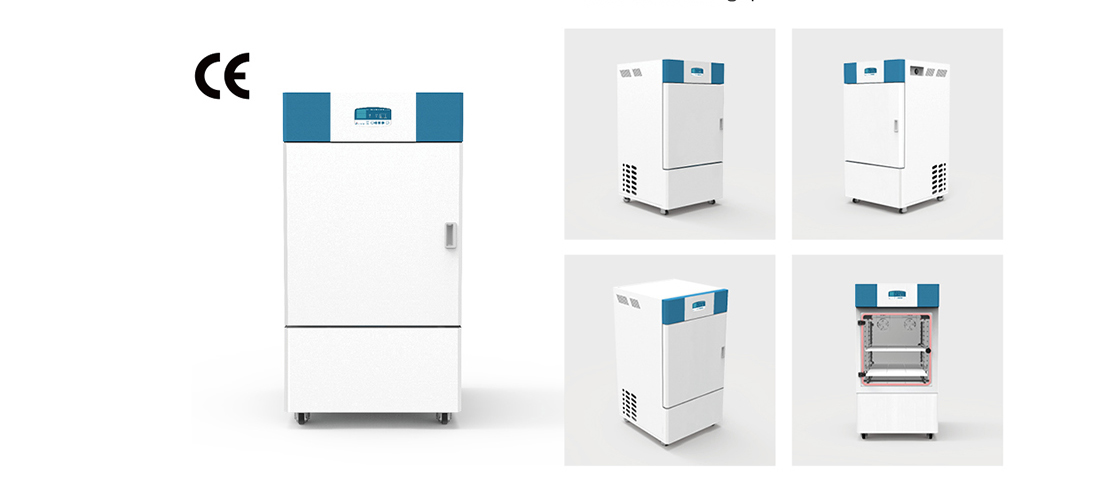

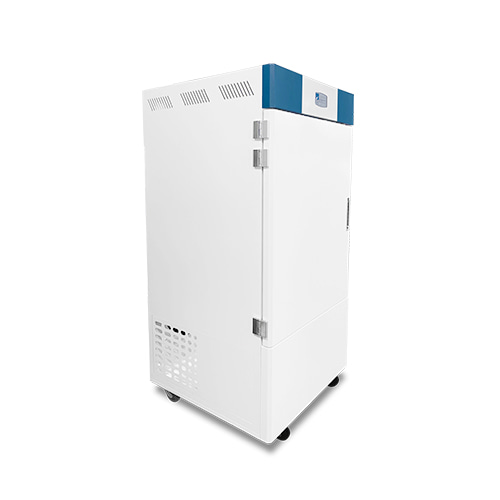

Refrigerated Incubator SH-CH-149R

-5℃ ~ 60℃

150(Liter)

- For incubation temperature 15ºC ~ 30ºC

- Durable structure against continuous operation

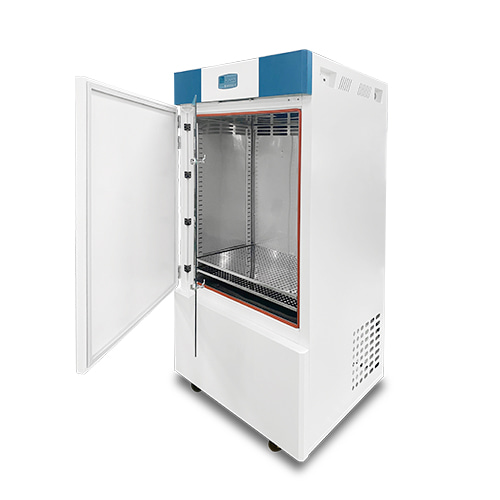

- Stainless Steel Internal Chamber with shelves
- Excellent temperature uniformity and accuracy

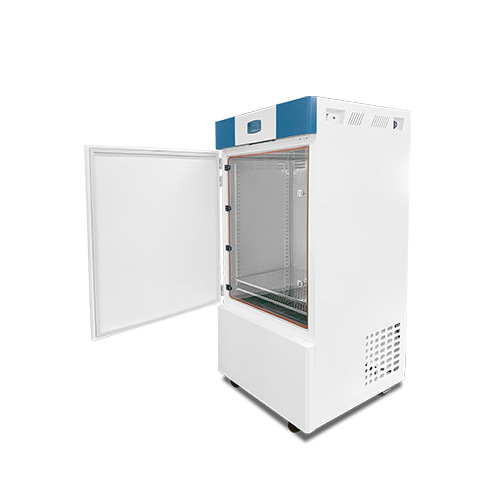

- Inner Glass Door installation

- Safety assurance with C.E conformity

  • Specification

  • Inquiry

  • This version of incubator comes with a high-powered refrigeration compressor. Its cooling temperature ranges from -5ºC to 60ºC. It is designed to conduct separated tests in high or low temperature. It is also capable of minimizing adjustment period from low to high or vice versa.



    - Stainless steel inner chamber

    - Accurate temp control

    - RS-485 or RS-232C interface

    - Water proof socket

    - Leveling caster

    - Safety devices

    - Digital controller

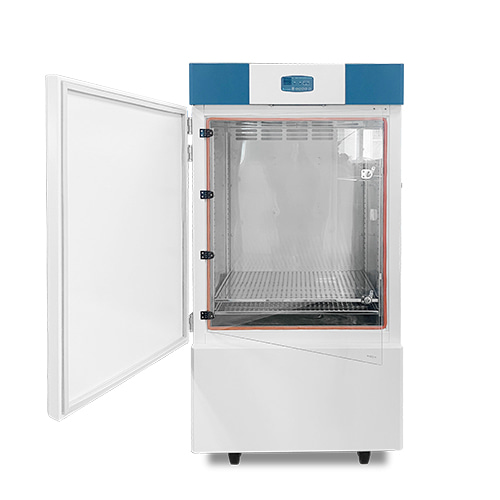

    - Inner glass door
  • ModelSH-CH-149R
    Air Circulation type Forced
    Temp Range -5℃ to 60(23℉ to 140℉)

    Time Range

    00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Display
    Temp controlMicroprocessor PID controller
    Temp Accuracy & Stability±0.1

    Temp Uniformity

    ±0.5 at operation temp.25ºC

    Capacity 150L
    Dimension Internal
    (W×D×H)
    555×450×600mm
    21.85x17.72x23.62''
    Dimension External
    (W×D×H)
    715x760x1350mm
    28.15x29.92x53.14''
    Weight117 kg
    Material InternalStainless Steel
    Material ExternalSteel Plate With Powder Heating Coated
    Shelves2 Supplied (17 Maximum)

    Water Proof Socket

    7A / 1EA
    Heater1000W
    Electrical Requirements
    230V,50/60Hz, 1Φ
    4.6 A
    Cat. No. 50Hz (60Hz)CH149R230-50
    (CH149R230-60)



    • Accessory

    -Movable epoxy coated wire shelves 2EA



    • Option

    -Programmable Controller

    -Digital Recorder

    -2CH Hybrid Recorder

    -RS-485 interface

    -RS-232C interface



    • Safety Device

    -Automatic reset function incoming power cut

    -Buzzer on when set time arrived

    -Door open alarm

    -Electric leakage breaker

    -Over temp function

    -Refrigerator over load protection
