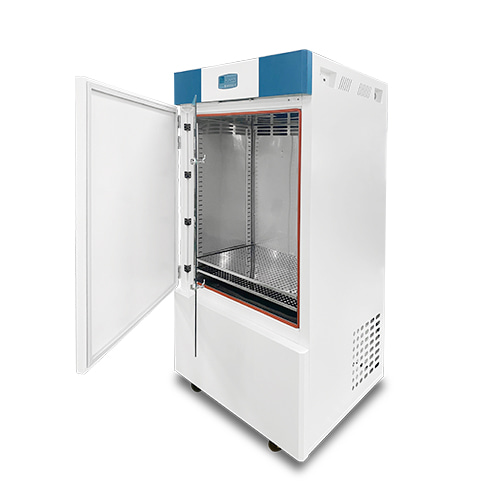

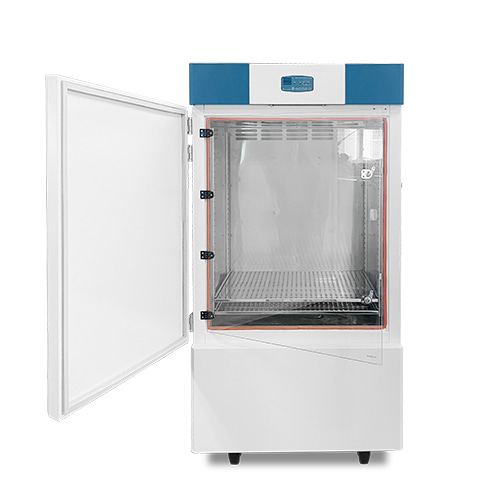

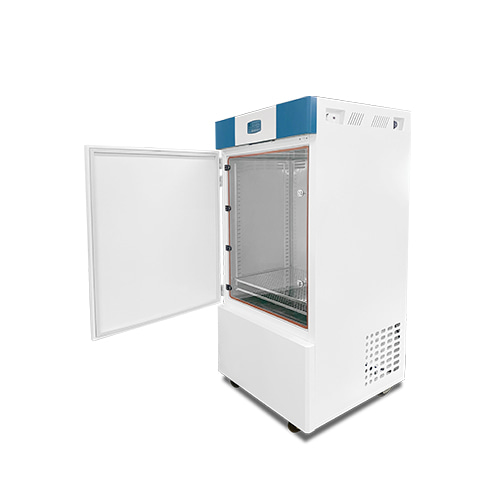

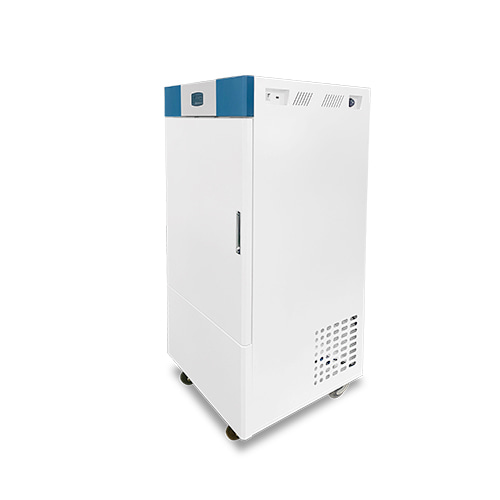

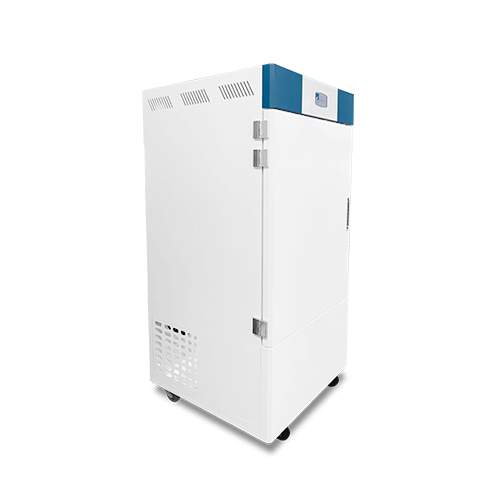

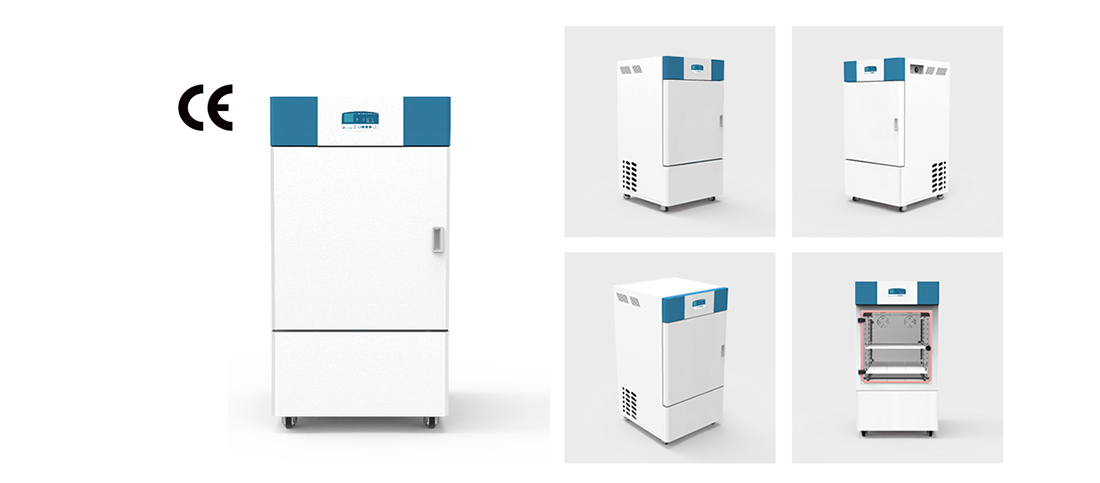

Refrigerated Incubator SH-CH-250R

-5℃ ~ 60℃

250(Liter)

- For incubation temperature 15ºC ~ 30ºC

- Durable structure against continuous operation

- Stainless Steel Internal Chamber with shelves
- Excellent temperature uniformity and accuracy

- Inner Glass Door installation

- Safety assurance with C.E conformity

  • Specification

  • Inquiry

  • This version of incubator comes with a high-powered refrigeration compressor. Its cooling temperature ranges from -5ºC to 60ºC. It is designed to conduct separated tests in high or low temperature. It is also capable of minimizing adjustment period from low to high or vice versa.

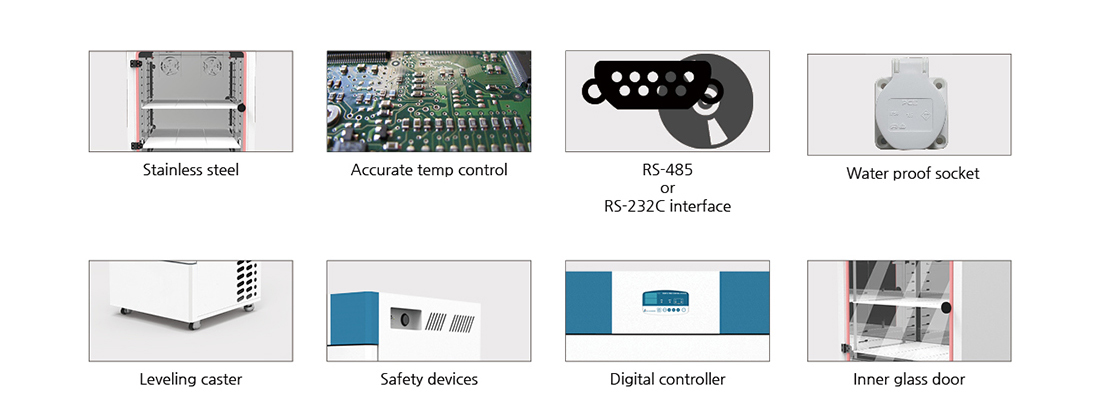

    - Stainless steel inner chamber

    - Accurate temp control

    - RS-485 or RS-232C interface

    - Water proof socket

    - Leveling caster

    - Safety devices

    - Digital controller

    - Inner glass door

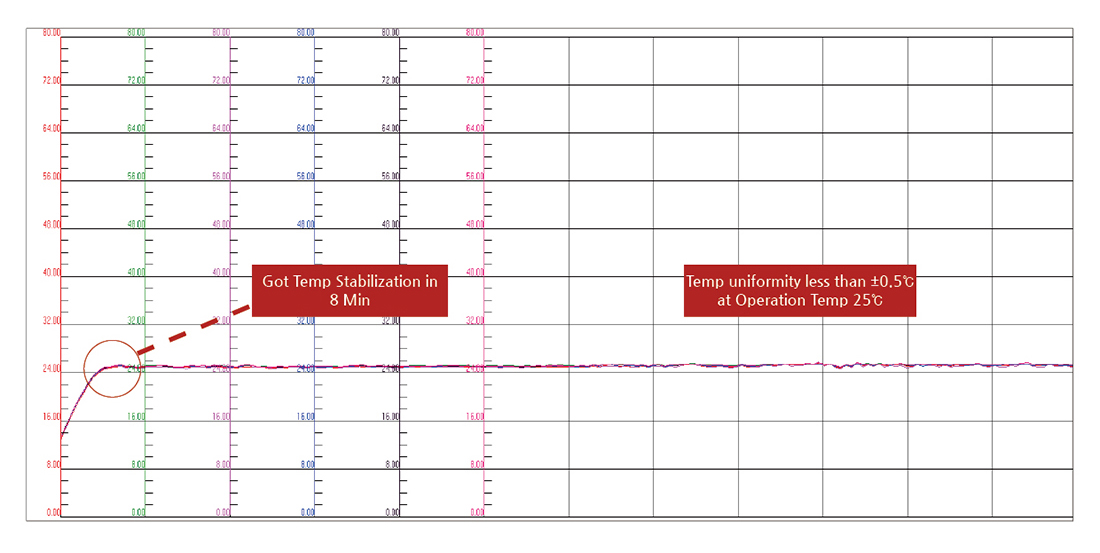

    Uniformity Sheet

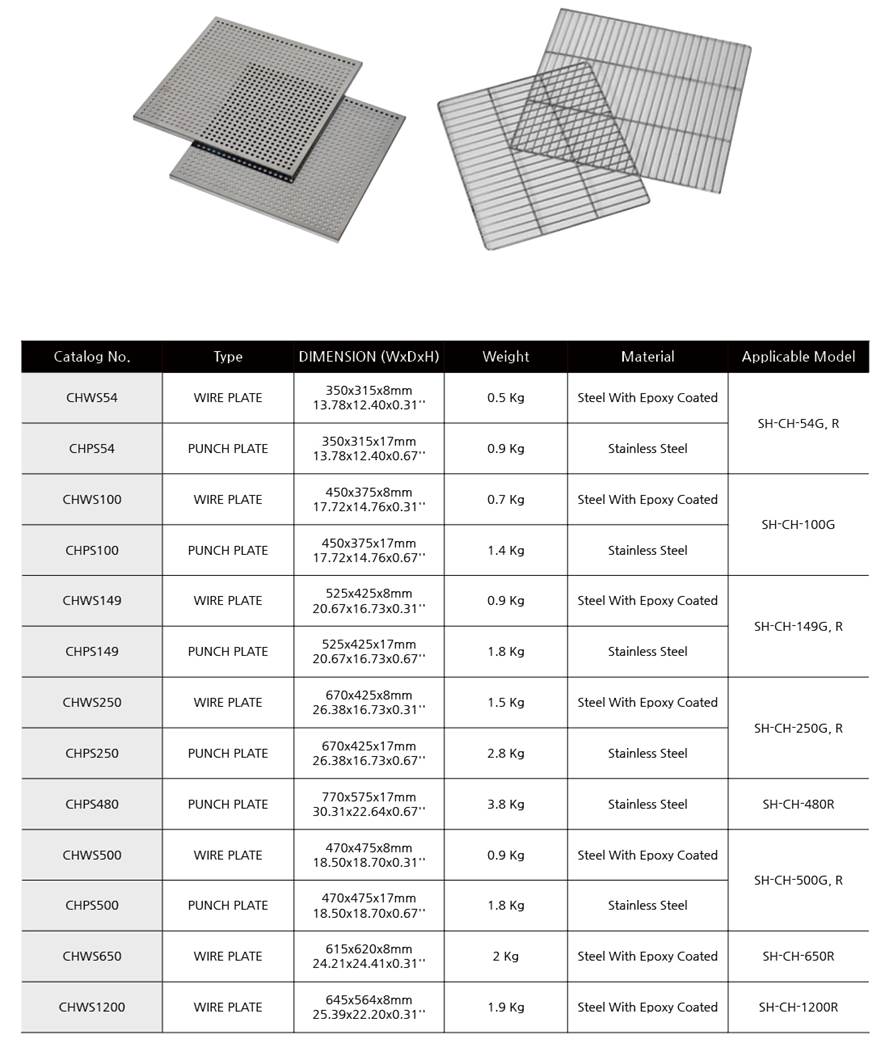

    Shelves Details

    SH Scientific is 40 years old laboratory equipment manufacturer and we supply vacuum ovens, cold trap baths, vacuum pumps, industrial drying ovens, forced convection drying ovens, CBD isolate vacuum chambers, terpene traps, stirring mantles, recirculating chillers and heaters, incubators, climate chambers, bio safety cabinets, fume hoods, autoclaves, water baths, oil baths, ultrasonic cleaners, rotary evaporators, glass reactors, clean bench and so on.

  • ModelSH-CH-250R
    Air Circulation type Forced
    Temp Range -5℃ to 60(23℉ to 140℉)

    Time Range

    00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Display
    Temp controlMicroprocessor PID controller
    Temp Accuracy & Stability±0.1

    Temp Uniformity

    ±0.5 at operation temp.25ºC

    Capacity 250L
    Dimension Internal
    (W×D×H)
    700×450×800mm
    27.65x17.72x31.50''
    Dimension External
    (W×D×H)
    860x760x1850mm
    33.86x29.92x62.59''
    Weight156 kg
    Material InternalStainless Steel
    Material ExternalSteel Plate With Powder Heating Coated
    Shelves2 Supplied (24 Maximum)

    Water Proof Socket

    6A / 1EA
    Heater1200W
    Electrical Requirements
    230V,50/60Hz, 1Φ
    5.6 A
    Cat. No. 50Hz (60Hz)CH250R230-50
    (CH250R230-60)

    • Accessory

    -Movable epoxy coated wire shelves 2EA


    • Option

    -Programmable Controller

    -Digital Recorder

    -2CH Hybrid Recorder

    -RS-485 interface

    -RS-232C interface


    • Safety Device

    -Automatic reset function incoming power cut

    -Buzzer on when set time arrived

    -Door open alarm

    -Electric leakage breaker

    -Over temp controller

    -Refrigerator over load protection
