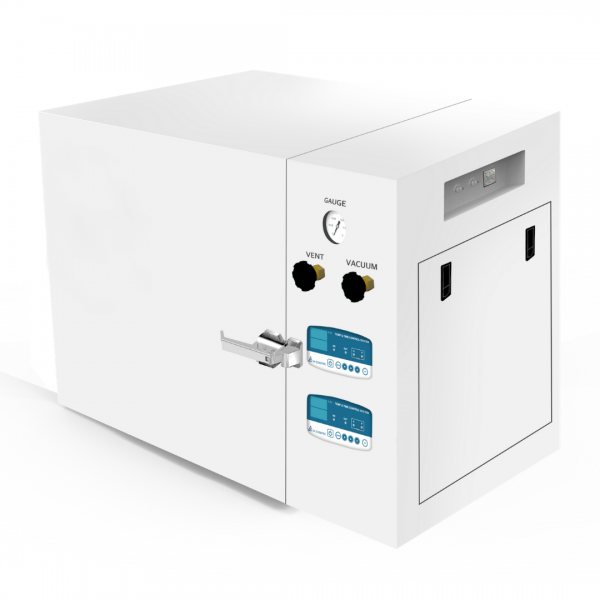

Vacuum Oven 30NS (400°C)

Max Temperature 400℃ High Temperature Vacuum Oven

SH-VDO-30NS

  • Max temperature 400°C high temperature vacuum oven
  • The optional cold trap chamber has been upgraded for free to a -80°C model, adding an extra $4,000 in value.
  • Individually heated shelves with 2 controllers
  • CURING AND BAKING PROCESS FOR SEMICONDUCTOR WAFERS
  • 27liters chamber, 300x300x300mm internal
  • -40°C cold trap chamber included
  • LOW NOISE vacuum pump SH-VDC10 included

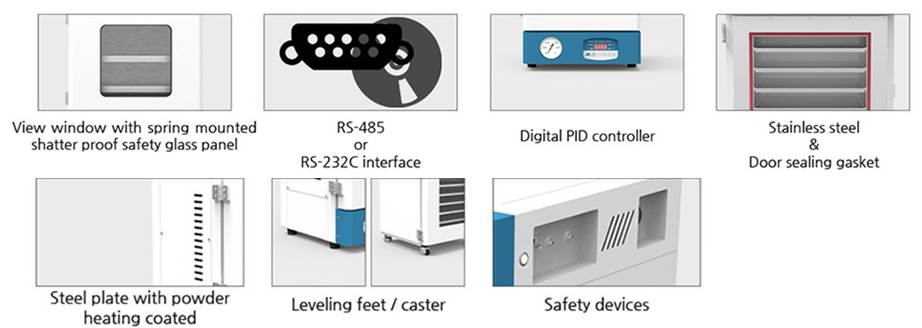

  • Aluminum shelves (excellent heat conductivity)
  • Internal observation is possible through view window
  • Excellent temperature uniformity and accuracy
  • Stainless steel internal chamber
  • Safety assurance with CE conformity
  • Specification

  • Documents

  • Inquiry

  • Vacuum drying oven is simple but essential across all industries including science, biology, biomedical, pharmaceutics, agriculture, food processing, food and oil extraction, chemistry, metallurgy and etc.

    Vacuum drying oven is used for drying, purging and outgassing samples and material at lower temperature under vacuum, which results in fasting drying without damaging the compound of material.

    In modern advanced industries such as semi-conductor and secondary battery manufacturing and testing, various level of testing under very high temperatures is increasing. SH Scientific high temperature vacuum oven NS series is suitable for sample testing as high as 450˚C (suitable for operating temperature up to 400˚C) and can also be used for drying samples without causing residues, scaling and oxidation.

    We not just offer vacuum oven but also offer ideal turnkey package consisting of COLD TRAP BATH (except SH-VDO-08NG-PK) and oil rotary vacuum pump SH-V series. Our package is a right-matched so you do not overpay for wrong-matched configuration.

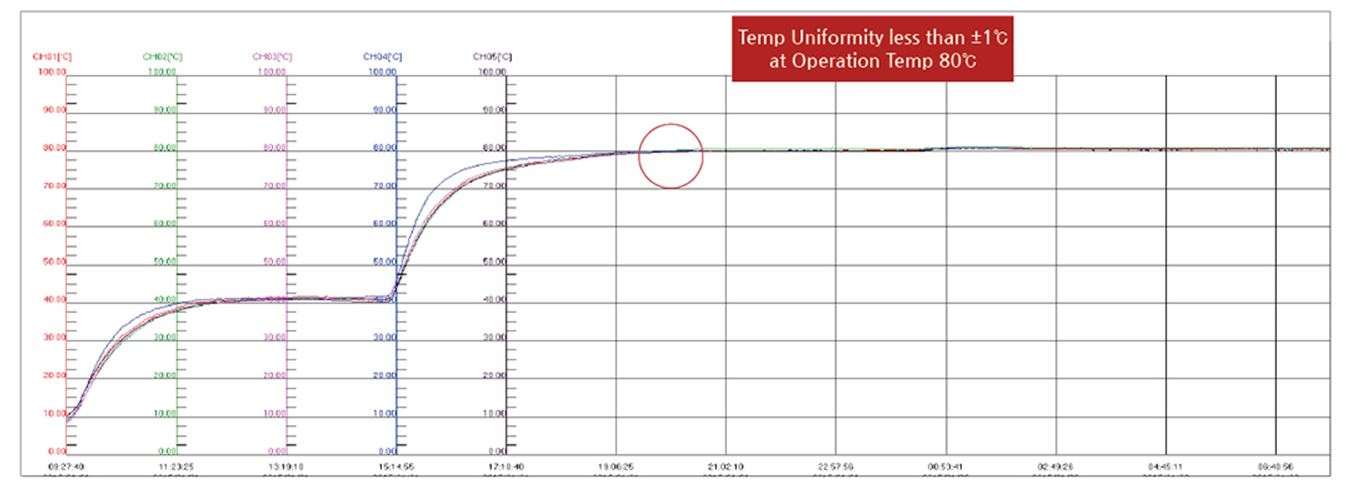

    Uniformity Sheet

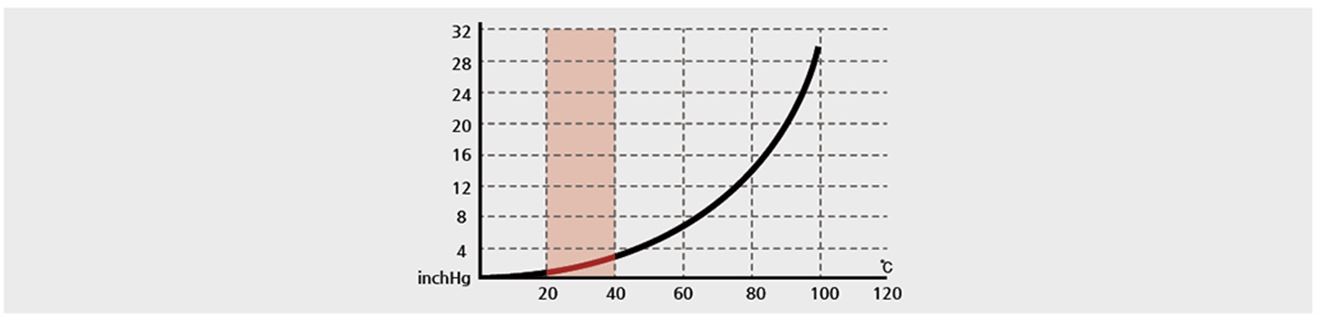

    Water vapor pressure

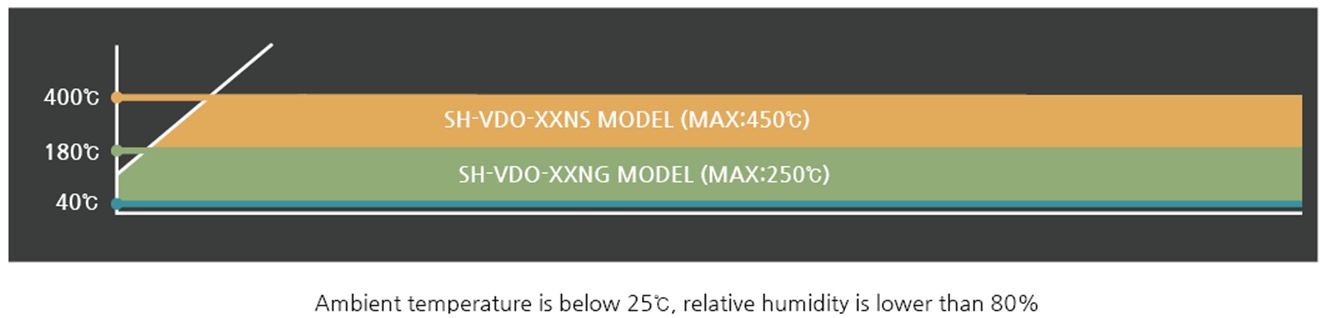

    Selection guide





  •

    Model SH-VDO-30NS-PK package
    Temp Range Ambient +5℃ to 400℃ (Ambient +9℉ to 752℉)
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer
    Vacuum Resistance 0 to 76 cmHg (0 to 0.1MPa)
    Heating Type Shelves are individually heated with independent controllers
    Temp & Time controller Microprocess PID Membrane Touch Digital controller
     Controller 2EA
    Heater 1.6 KW
    Dimension Internal 300×300×300mm (W×D×H)
    Dimension External 800x580x565mm (W×D×H)
    Weight 87 kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Material Packing Silicon Rubber Packing
    View Window Solid door
    Heating Shelves 2 Supplied
    Electrical Requirements 120V ,50/60Hz, 1Φ, 13.3 A
    Electrical Requirements 230V,50/60Hz, 1Φ, 7.0 A



    Model SH-WB-5GDR(-40)
    Order Number SH-WB-5GDR(-40)
    Temp Controller Microprocessor Digital controller
    Temp Control Range Ambient -60°C ~ -20°C (-108°F ~ -40°F ) (Low limit -40°C)
    Dimension Internal
    (Φ×H)
    180Φ×210Hmm
    7.09Φx8.27”
    Dimension External
    (WxD×H)
    465x560x710mm
    18.18×22.04×27.95”
    Weight 48 kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Trap 3 x openable glass traps or 1 x KF25 stainless trap
    Power 120V ,60Hz, 1Φ
    Cat. No. WB5GDR-40120-60
    Power 230V,60Hz, 1Φ
    Cat. No. WB5GDR-40230-60



    Model No. SH-VDC10
    Speed@60hz 96L/min
    3.4 cfm
    Ultimate partial pressure
    gas ballast close
    Ultimate total pressure
    gas ballast close
    5×10-2 Pa
    Ultimate total pressure
    gas ballast open
    10
    Power supply 110V~220V, 1phase
    Power rating(kW) 0.4
    Inlet/Exhaust flange KF16/25
    Oil volume(L) 0.6~1.0
    Noise level <48
    Weight(kg) 15
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
