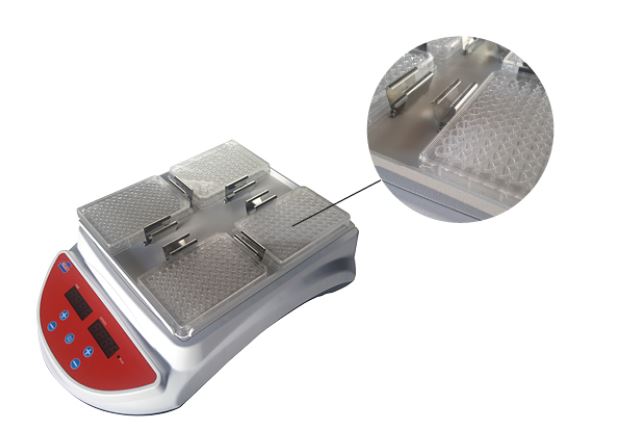

Microplate Shaker OS-07U

Speed Range : 150 ~ 100rpm

Room Temp 5℃ ~ 40℃

Microplate shaker can accommodate all SBS format plates, PCR, tissue culture & HTS.

Great for mixing applications requiring specific speeds or times.

- Variable shaking speed: 150~1000rpm;

- Quick and easy fitting or any standard-depth multi-wall plates;

- Continuous or timed operation, with automatic switch off;

- Display will show last used settings, even after power has been turned off;

- Continue to run by last set speed and the remaining time when the power recovered;

- Operating temperature 5℃~40℃ allows for use in cold rooms or incubators;

- Holds two or four microplates;

- Easy-to-use electronic timer ensures accurate count-down and repeatability of time sensitive incubations

  • Specification

  • Inquiry

  • Accessories

    ———————————






    Model

    Part NumberSpecificationsNote
    96-well Microplate Holder
    OSA13
    /
    For OS-07U





    Accessories

    ———————————








    Model

    Part NumberSpecificationsNote
    Nonslip Rubber Mat
    OSA16
    WxD: 306x246mm (12.05x9.69")
    For OS-06U





    Model

    Part NumberSpecificationsNote

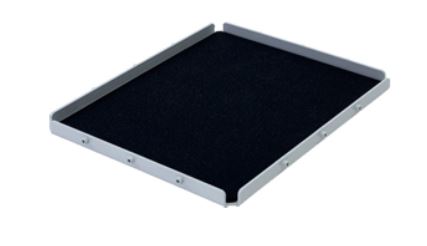

    Flat Shelf with Rubber Mat
    OSA17
    WxDxH: 327x289x22mm (12.87x11.38x0.87")
    For OS-06U





    Model

    Part NumberSpecificationsNote
    Universal Platform with Adjustable Bars
    OSA20
    WxDxH: 306x303x145mm (12.05x11.93x5.71")
    For OS-06U




    Model

    Part NumberSpecificationsNote

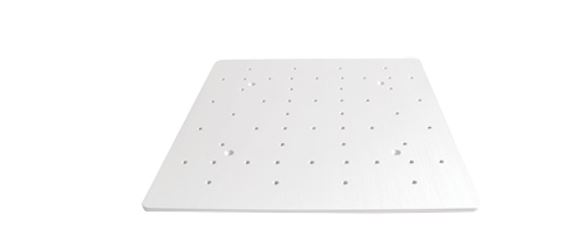

    Universal (Aluminum) Platform
    OSA21
    WxD: 310x284mm (12.20x11.18")
    For OS-06U





    Model

    Part NumberSpecificationsNote

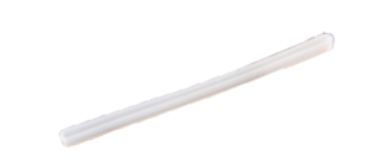

    Rubber Strips
    NSA01
    WxD: 180x7mm (7.09x0.28")
    For OS-07U







    Model

    Part NumberSpecificationsNote
    96-well Microplate Holder
    OSA13
    /
    For OS-07U




    Model

    Part NumberSpecificationsNote

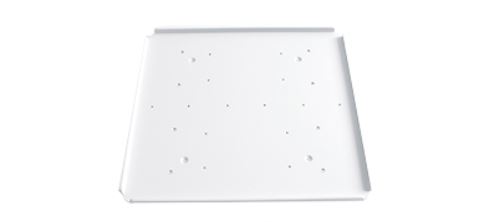

    Large Shelf
    OSA14
    WxDxH: 292x275x12mm (11.50x10.83x0.47")
    For OS-07U




    Model

    Part NumberSpecificationsNote

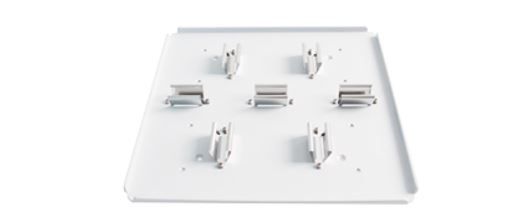

    Large Shelf with Clamp Assembly
    OSA15
    WxDxH: 292x275x25mm (11.50x10.83x0.98")
    For OS-07U





    Model

    Part NumberSpecifications

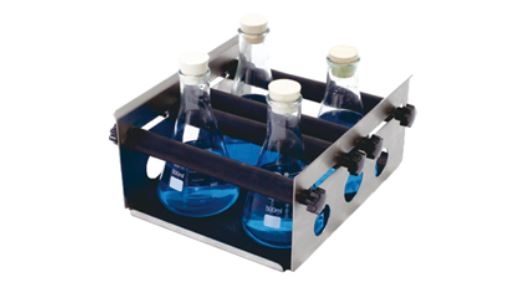

    Flask Clamp
    IS-A1
    50ml
    IS-A2100ml
    IS-A5250ml
    IS-A6500ml
    IS-A71000ml
    IS-A82000ml
    IS-A93000ml
    IS-A105000ml
    IS-5025ml
     Shelf-Adhesive Silicon MatIS-A47WxD: 140x140mm (5.51x5.51")



    Model

    Part NumberSpecifications
    96-Well Microplate Holder
    IS-A13
    WxD: 136x95mm (5.35x3.74")
    Separatory Funnel FixtureIS-A35/
    Test Tube RackIS-A1140xΦ14mm(0.55")
    IS-A1240xΦ16mm(0.63")
    Adjustable Test Tube RackIS-A2040xΦ14mm(0.55")
    IS-A2140xΦ16mm(0.63")
    Infusion Bottle ClampIS-A33500ml
    IS-A341000ml













  • ModelOS-07U
    Speed Range150~1000rpm
    Speed Accuracy±1%(@≤299rpm),±2%(@>299rpm)
    Orbit DiameterΦ2.5mm / 0.10"
    Max. Load4 kg
    Timer0~99h 59min
    Platform Dimensions275x235x12mm / 10.83x9.25x0.47"
    DisplayLED

    Ambient

    5℃~40℃

    Dimension External (WxDxH)

    296x440x151mm / 11.65x17.32x5.94"

     Power Supply220V, 60Hz
    Weight 15 kg

           - Standard Accessory

             OSA13x6
