IS-RDS6C5

Speed Range : 30~300rpm

Room Temp -18℃ to 60℃

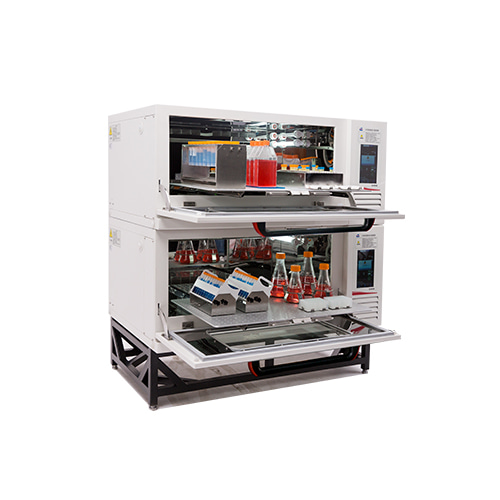

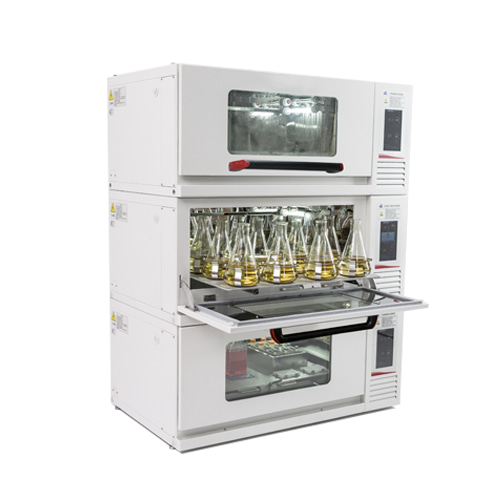

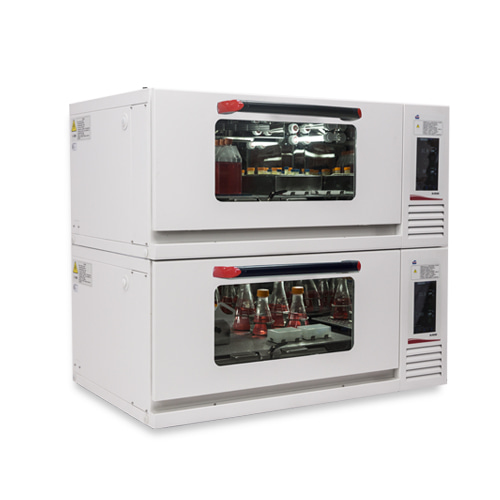

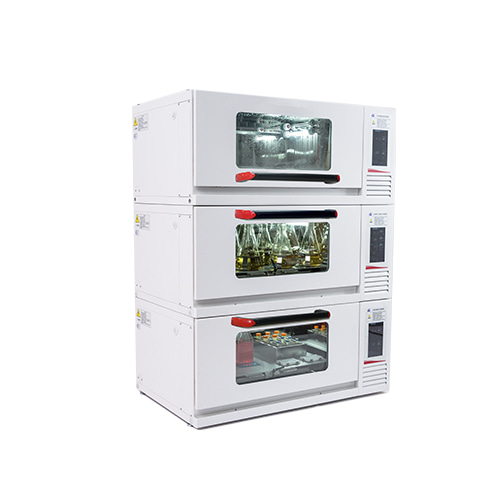

RDS6 Series, a line of large incubator shakers up to 1 meter in size.

Triple Eccentric Drive for better operation and reliability.

- Large capacity, 401 liter and stackable up to 3 levels.

±0.5 ℃ Temp uniformity.

- Triple Eccentric Drive with max. speed 300rpm,

  stable and extremely quiet. (<53dB)

                  - Test sample loading and incubation up to max. 20kg.                                   - Wide shaker in 50mm Orbit Diameter(IS-RDS6C5.5T)

                - Programmable up to 12 programs (Temp, Speed)                                            - Data Download with USB drive

                                     - Fix/Program mode selectable                                                                         (stored in Excel file)

                    - 10" Large LCD color Touch control panel enables to                                        - Curve Display of Temperature, speed,

                                 monitor the operation and alarm status.                                                                  CO2 and Humidity.

                                                                - Recovery Time after Open Door 30 sec

                                      - Heater and Refrigerator activate and provide High precise operation

                                                                     (±0.5℃ Temp, uniformity ±0.1 % CO2 precise control)

  • Specification

  • Inquiry

  • Options

    ——————————————————



    Remote Monitor & Control System & APP

    It is a wireless monitoring software for mobile phones used in the Internet or local area network to monitor and control the incubating shaker.

    All parameters of a unit can be monitored and controlled by a mobile phone, and multiple mobile phones can also monitor and control one or

    more machines. It is very suitable for timely monitoring of culture conditions which need higher culture environment. You can check the history

    data in the mobile phone, according to the culture effect of historical data, so you can optimize the latter culture parameters.

    - One cell phone can monitor multiple shakers at the same time.

    - More than two mobile phones can monitor one or more shakers at the same time.

    - Mobile phone can monitor and control the temperature, speed, humidity, CO2, light and other parameters of the shaker through the LAN and

      the Internet.

    - Mobile phone can program to the machine and let the unit run as several section programs (the maximum is 12).

    - Mobile phone can receive alarm information timely, and the alarm can be disposed.

    - Mobile phone can view historical data, including temperature, speed, humidity, CO2, light, and other historical parameters.

    Accessories

    ——————————————————

    ModelPart NumberSpecificationsNote





    Flask Clamp
    IS-A150ml




    Made of polished stainless steel sheet. They can be fixed

    on any platform of all models of incubator shakers.
    IS-A2100ml
    IS-A3150ml
    IS-A4200ml
    IS-A5250ml
    IS-A6500ml
    IS-A71000ml
    IS-A82000ml
    IS-A93000ml
    IS-A105000ml
    IS-A5025ml

    ModelPart NumberSpecificationsNote


    Test Tube Rack
    IS-A1140xΦ14mm(0.55")Made of stainless steel and high grade ABS plastic material.
    Compatible with all of Incubator Shaker

    Dimension External (WxDxH)
    262x112x140mm (10.31x4.41x5.51")
    IS-A1240xΦ16mm(0.63")
    IS-A2340xΦ18mm(0.71")
    IS-A2427xΦ22mm(0.87")
    IS-A4221xΦ30mm(1.18")


    ModelPart NumberSpecificationsNote




    Adjustable Test Tube Rack
    IS-A2040xΦ14mm(0.55")
    Made of stainless steel and high grade
    ABS plastic material. Compatible with all
    of Incubator Shaker.
    Dimension External (WxDxH):
    267x125x172mm (10.51x4.92x6.77")
    IS-A2140xΦ16mm(0.63")
    IS-A3040xΦ18mm(0.71")
    IS-A3127xΦ22mm(0.87")
    IS-A3227xΦ30mm(1.81")

    IS-A37

    24x
    Φ30mm(1.81")
    Made of stainless steel, rack for
    300mm
    long tubes.
    Dimension External (WxDxH):
    267x125x172mm (10.51x4.92x6.77")


    ModelPart NumberSpecificationsNote





    Multifunction Spring Platform
    IS-A19WxDxH:165x165x80mm
    (13.78x9.45x3.15")

    For all shakers.





    Made of stainless steel.
    Can be fixed onto shaking platform.
    IS-A27
    WxDxH:350x240x80mm
    (13.78x9.45x3.15")
    IS-A22
    WxDxH:450x400x80mm
    (17.72x15.75x3.15")

    For all of incubator shakers
    except IS-RSDA.
    IS-A14
    WxDxH:428x295x80mm
    (16.85x11.61x3.15")
    IS-A39
    WxDxH:720x440x80mm
    (28.35x17.32x3.15")
    For IS-RDS3,RDS4
    IS-A48
    WxDxH:840x440x80mm
    (33.07x17.32x3.15")
    For chest-type
    incubator shakers

    ModelPart NumberSpecificationsNote

    Fixture for Separating Funnel

    IS-A25

    WxDxH:355x402x153mm
    (13.98x15.83x6.02")
    Used for separating funnel with volume 5000ml.

    IS-A35

    N/AUsed for separating funnel with volume greater than 500ml.

    ModelPart NumberSpecificationsNote
    Infusion Bottle Clamp

    IS-A33

    500mlMade of stainless steel.
    Can be fixed on all platforms of incubator shakers.

    IS-A34

    1000ml

    ModelPart NumberSpecificationsNote
    Sticky Pad

    IS-A47

    WxD: 140x140mm
    (5.51x5.51")
    Use for all shaker, wipe with water,dry for few minutes,
    the mat will be self-adhesive on surface.

    ModelPart NumberSpecificationsNote
    Rack for Stackable Incubator Shakers

    IS-A29

    WxDxH: 948x630x225mm
    (37.32x24.80x8.86")
    Support stackable incubator shakers (up to two units).

    ModelPart NumberSpecificationsNote
    Flask Holder

    IS-A26

    5000mlHold 5000ml Flask. (For IS-RDS,IS-RDS3C, IS-RDH2, IS-RSH2)

    ModelPart NumberSpecificationsNote
    96-Well Microplate Holder

    IS-A13

    WxD: 136x95mm
    (5.35x3.74")
    Can be fixed on any platform of incubator shakers.

    ModelPart NumberSpecificationsNote
    Universal Spring Platform

    WBA30

    WxDxH: 370x240x180mm
    (14.57x9.45x7.09")
    Previous Model: SY-2330-03A, Maximum Capacity:1

    ModelPart NumberSpecificationsNote
    Deep Well Plate Clamp

    IS-A61

    WxDxH: 780x450x84mm
    (30.71x17.72x3.31")
    /
  • ModelIS-RDS6C5
    Platform Dimensions900x560mm / 35.43x22.05"

    Max. Capacity

    Clamp Capacity: 50mlx135 / 100mlx60 / 150mlx60 / 200mlx60 / 250mlx60 / 500mlx34 / 1000mlx22 / 2000mlx15/

    3000mlx12

    Sticky Mat: 50mlx187 / 100mlx112 / 150mlx104 / 200mlx84 / 250mlx77 / 500mlx40 / 1000mlx28 / 2000mlx15/

    3000mlx15 / 5000ml(Thomson)x6

    Capacity401L
    Max. Load20kg
    Temp. RangeRoom Temp -18℃~60℃ (Lowest Temp. is 4℃)
    Temp. Accuracy±0.1
    Temp. Uniformity±0.5℃ (@37℃)
    Speed30~300rpm
    Speed Accuracy±1rpm
    Orbit DiameterΦ50mm
    CO2 SensorIR
    CO2 Control Range0~20%
    CO2 Control Accuracy±0.1%

    Recover Time after

    Open Door 30s on Temp.

    ≤6min (@37℃)

    Recover time after

    Open Door 30s on CO2

    ≤6min (@5%)

    RH Type

    Evapor Naturally

    Max. Humidity

    95%

    Programming Numbers

    12 Sections

    Illumination

    Both of Side Lamps

    Disinfection

    Both of Side UV Lamps

    Door Open DirectionDownward
    Date Curve DisplayTemp, Curve, Speed Curve, CO2 Curve, RH Curve
    Display10" Color Capacitance Touch Screen
    Display the DateIn 7 days
    Date Store TypesMore than 912 days
    Date Store Time1min
    Date Store TypesTime, Temp, Speed, CO2, RH, Machine Status
    Third Platform High1496mm
    Noise Level≤53dB (In Refrigerating)
    Water Sparge ResistantYes
     Auto-run after Power
    Recovery
    Yes
    Heat Power≤850W
    Cool Power70~180W
    Power≤1000W
    Power SupplyAC 220V±22V, 50Hz / 60Hz
    Drive TrainTriple Eccentric Drive
    RH Control10%~95% Above RH
    Dimension External
    (WxDxH)
    1400X886X680mm / 55.12x34.88x26.77"
    Dimension Internal
    (WxDxH)
    1005x690x330mm / 39.57x27.17x12.99"
    Net Weight295kg
