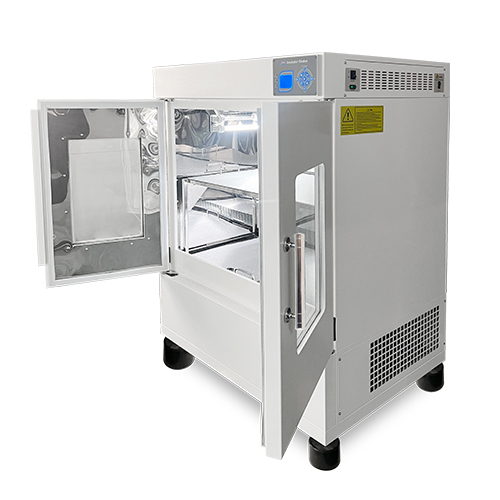

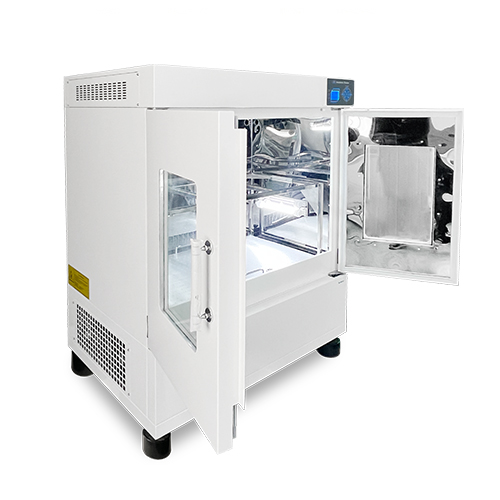

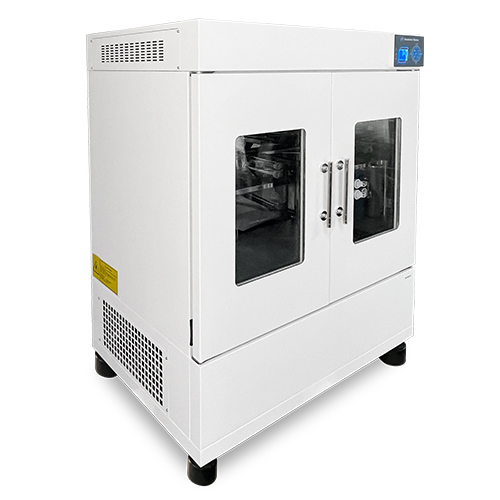

Double Doors Double Layers Upright Incubator Shakers IS-RDV35

Speed Range : 0 ~ 250rpm

Ambient +5℃ ~ 60℃

The product has 2 doors and 2 windows at appropriate heights for easy access and visibility. The large double platforms can accommodate large quantity of flasks and high samples. It is suitable for medium scale experiments and production.

  • Specification

  • Inquiry

  • Accessories

    ——————————————————

    ModelPart NumberSpecificationsNote





    Flask Clamp
    IS-A150ml




    Made of polished stainless steel sheet. They can be fixed

    on any platform of all models of incubator shakers.
    IS-A2100ml
    IS-A3150ml
    IS-A4200ml
    IS-A5250ml
    IS-A6500ml
    IS-A71000ml
    IS-A82000ml
    IS-A93000ml
    IS-A105000ml
    IS-A5025ml

    ModelPart NumberSpecificationsNote


    Test Tube Rack
    IS-A1140xΦ14mm(0.55")Made of stainless steel and high grade ABS plastic material.
    Compatible with all of Incubator Shaker

    Dimension External (WxDxH)
    262x112x140mm (10.31x4.41x5.51")
    IS-A1240xΦ16mm(0.63")
    IS-A2340xΦ18mm(0.71")
    IS-A2427xΦ22mm(0.87")
    IS-A4221xΦ30mm(1.18")


    ModelPart NumberSpecificationsNote




    Adjustable Test Tube Rack
    IS-A2040xΦ14mm(0.55")
    Made of stainless steel and high grade
    ABS plastic material. Compatible with all
    of Incubator Shaker.
    Dimension External (WxDxH):
    267x125x172mm (10.51x4.92x6.77")
    IS-A2140xΦ16mm(0.63")
    IS-A3040xΦ18mm(0.71")
    IS-A3127xΦ22mm(0.87")
    IS-A3227xΦ30mm(1.81")

    IS-A37

    24x
    Φ30mm(1.81")
    Made of stainless steel, rack for
    300mm
    long tubes.
    Dimension External (WxDxH):
    267x125x172mm (10.51x4.92x6.77")


    ModelPart NumberSpecificationsNote





    Multifunction Spring Platform
    IS-A19WxDxH:165x165x80mm
    (13.78x9.45x3.15")

    For all shakers.





    Made of stainless steel.
    Can be fixed onto shaking platform.
    IS-A27
    WxDxH:350x240x80mm
    (13.78x9.45x3.15")
    IS-A22
    WxDxH:450x400x80mm
    (17.72x15.75x3.15")

    For all of incubator shakers
    except IS-RSDA.
    IS-A14
    WxDxH:428x295x80mm
    (16.85x11.61x3.15")
    IS-A39
    WxDxH:720x440x80mm
    (28.35x17.32x3.15")
    For IS-RDS3,RDS4
    IS-A48
    WxDxH:840x440x80mm
    (33.07x17.32x3.15")
    For chest-type
    incubator shakers

    ModelPart NumberSpecificationsNote

    Fixture for Separating Funnel

    IS-A25

    WxDxH:355x402x153mm
    (13.98x15.83x6.02")
    Used for separating funnel with volume 5000ml.

    IS-A35

    N/AUsed for separating funnel with volume greater than 500ml.

    ModelPart NumberSpecificationsNote
    Infusion Bottle Clamp

    IS-A33

    500mlMade of stainless steel.
    Can be fixed on all platforms of incubator shakers.

    IS-A34

    1000ml

    ModelPart NumberSpecificationsNote
    Sticky Pad

    IS-A47

    WxD: 140x140mm
    (5.51x5.51")
    Use for all shaker, wipe with water,dry for few minutes,
    the mat will be self-adhesive on surface.

    ModelPart NumberSpecificationsNote
    Rack for Stackable Incubator Shakers

    IS-A29

    WxDxH: 948x630x225mm
    (37.32x24.80x8.86")
    Support stackable incubator shakers (up to two units).

    ModelPart NumberSpecificationsNote
    Flask Holder

    IS-A26

    5000mlHold 5000ml Flask. (For IS-RDS,IS-RDS3C, IS-RDH2, IS-RSH2)

    ModelPart NumberSpecificationsNote
    96-Well Microplate Holder

    IS-A13

    WxD: 136x95mm
    (5.35x3.74")
    Can be fixed on any platform of incubator shakers.

    ModelPart NumberSpecificationsNote
    Universal Spring Platform

    WBA30

    WxDxH: 370x240x180mm
    (14.57x9.45x7.09")
    Previous Model: SY-2330-03A, Maximum Capacity:1

    ModelPart NumberSpecificationsNote
    Deep Well Plate Clamp

    IS-A61

    WxDxH: 780x450x84mm
    (30.71x17.72x3.31")
    /
  • ModelIS-RDV35
    Speed Range30~250 rpm
    Speed Precision±1rpm
    Orbit DiameterΦ50mm / 1.97"
    Maximum Capacity50mlx206 / 100mlx104 / 150mlx95 / 200mlx90 / 250mlx90 / 500mlx50 / 1000mlx30 / 2000mlx22
    Platform Dimensions510x825mm / 510x890mm
    Number of Platforms2Piece
    Temp. RangeAmbient -15℃~60℃ (Low Limit:4℃)
    Temp. Sensitivity0.1
    Temp. Uniformity±0.5℃(@37℃)
    Automatical DefrostYes
    DisplayLCD

    Timer

    0~999 h

    Dimension External (WxDxH)

    1102x810x1458mm / 43.39x31.89x57.40"

    Dimension Internal (WxDxH)

    1000x590x800mm / 39.37x23.23x31.50"

    Power<1300W
    Power Supply220V, 60Hz
    Weight300 kg
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
