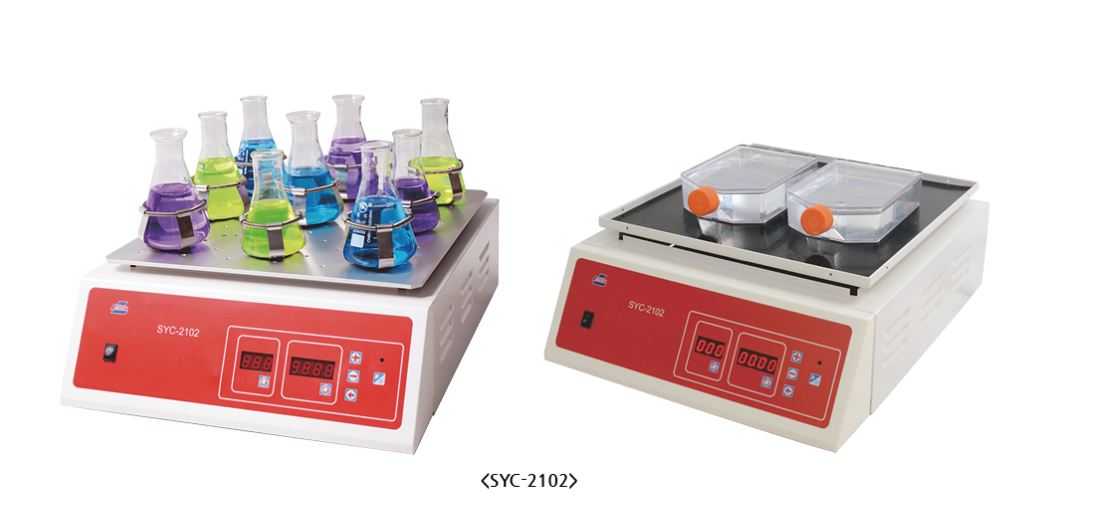

Orbital Shaker SYC-2102

Speed Range : 30 ~ 300rpm

Room Temp 5℃ ~ 40℃

The Orbital Shaker may be used for several applications including culturing microbes, and general mixing. A spring platform is an available accessory which can handle multiple flasks. Our Orbital Shaker is designed and built for a heavy workload, and provides continuous shaking with no vibration or heat output. Our Orbital Shaker can be placed into a standard incubator, covering the incubator into a shaking incubator.

- Digital control and LED display;

- Low noise level;

- Gentle speed up and slow down;

- Automatic recovery from power outage;

- Includes standard platform with non-skid mat.

  • Specification

  • Inquiry

  • Accessories for High Profile Shaker (SYC-2102)

    ——————————————————

    Model

    Part Number Specifications Max. Number

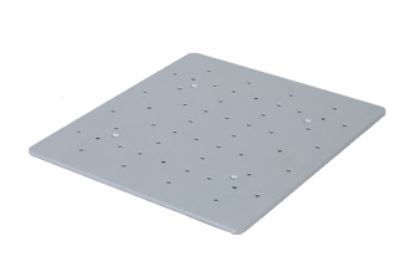

    Aluminum Platform
    OSA01
    (Previous Model: SYC2102-A)
    WxDxH:400x400x5mm
    (15.75x15.75x0.2")
    1

    Model

    Part NumberSpecificationsMax. Number

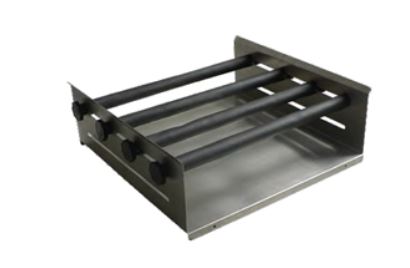

    Universal Platform with
    4 adjustable bars
    OSA02
    (Previous Model: SYC2102-B)
    WxDxH:417x402x146mm
    (16.42x15.83x5.75")
    1

    Model

    Part NumberSpecificationsMax. Number

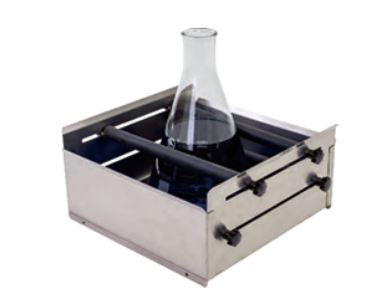

    Universal Platform with
    2 adjustable bars for large flask
    OSA03
    (Previous Model: SYC2102-C)
    WxDxH:417x417x207mm
    (16.42x16.42x8.15")
    1


    Model

    Part NumberSpecificationsMax. Number

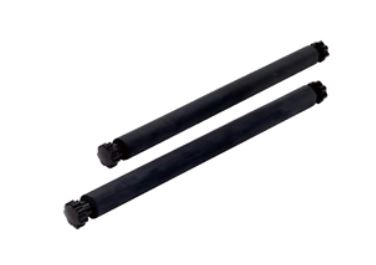

    Bars
    OSA04
    (Previous Model: SYC2102-D)
    L=400mm (15.75")
    Φ=28mm (1.1")
    4

    Universal Accessories:

    ———————————

    Name

    Part NumberNamePart Number





    Flask Clamp
    IS-A1

    Test Tube Rack
    IS-A11
    IS-A2IS-A12
    IS-A3IS-A23
    IS-A4IS-A24
    IS-A5

    Adjustable Test Tube Rack
    IS-A20
    IS-A6IS-A21
    IS-A7IS-A30
    IS-A8IS-A31
    IS-A9IS-A37
    IS-A10Mini Universal Spring Platform IS-A19
    96-Well Microplate HolderIS-A13IS-A27
    Infusion Bottle ClampIS-A33Separatory Funnel Fixture IS-A35
    IS-A34Sticky PadIS-A47
  • ModelSYC-2102
    Rotation MethodCircular Orbit, 26mm dia.
    Speed30~300rpm
    Time Range0~99 hours(0 represents no setting, run continuously)
    Platform Dimensions400x400mm / 15.75x15.75"
    Capacity1000mlx6 / 2000mlx4
    Max. Workload10 kg
    Dimension External (WxDxH)432x535x190mm / 17.01x21.06x7.48"
    Relative Humidity<80%
    Ambient5℃~40℃
    Max. Power Consumption85W

    Power Supply

    220V, 60Hz

    Weight

    38 kg

           - Standard Accessory

             Standard platform with non-skid mat
