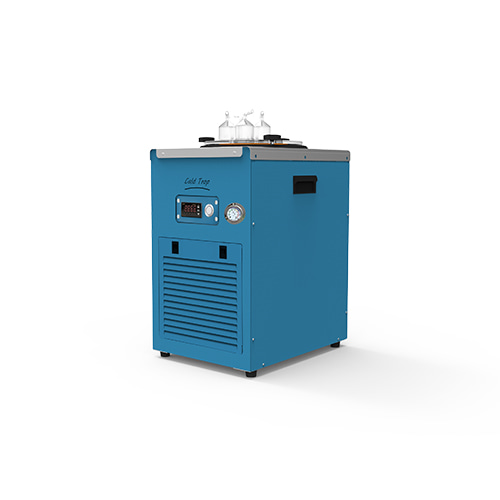

SH Cold Trap Bath SH-WB-5GDR(-80℃)

Cold Trap Bath

-80℃ model

- Digital temp controller type (convenient to check the teperature status)

- 3 Glass Trap installation

- Upside opended Glass Trap
- Seamless structure bath to prevent leakage of anti-freeze

- Easy internal observation with Transparent Cover

*Important Notice

Ethylene glycol or anti-freezer is recommended. But they should be sloopy and runny enough, otherwise it will affect the performance of cooling. Heat transfer fluid is also recommended in case of cryogenic products.

  • Specification

  • Inquiry

  • In vacuum applications, a cold trap is a device that condenses all vapors(except the permanent gases) into a liquid or solid. The main purpose is to prevent vapors being produced  by an experiment from entering then vacuum pump where thy would condense and contaminate it. Cold traps can also cool surfaces or baffles to prevent oil vapors flowing from a pump into a chamber.

    In such a case, a baffle or section of pipe containing a number of cooled vanes, will be attached to the inlet of an existing pumping system.

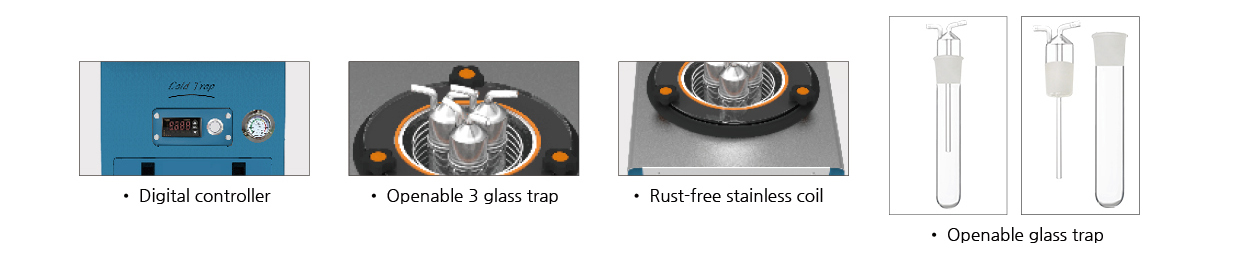

    - Digital controller

    - Openable 3 glass trap

    - Rust-free stainless coil

    - Openable glass trap

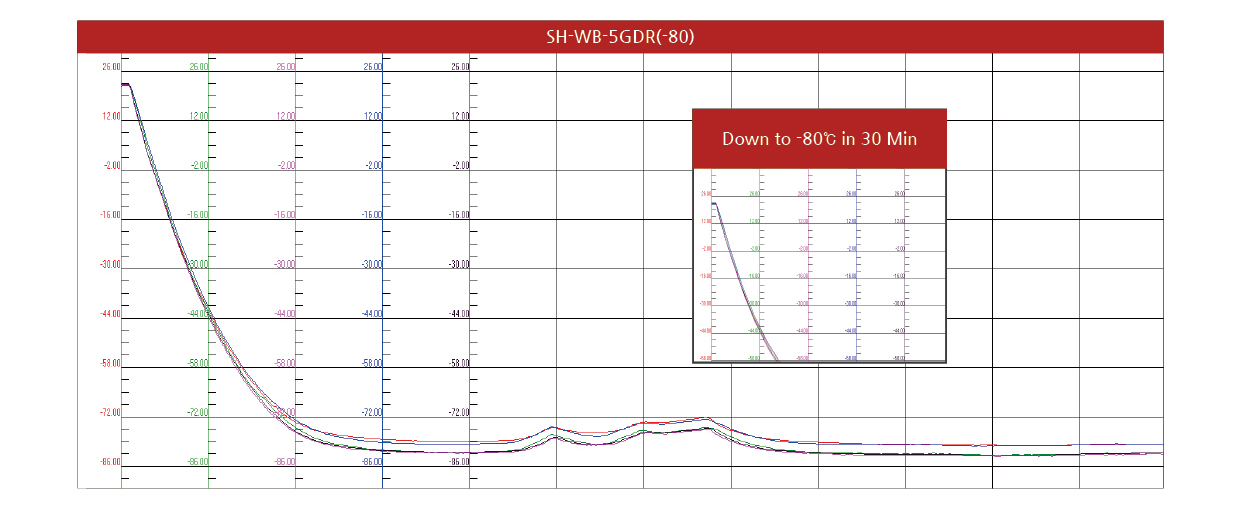

    Uniformity sheet



  • ModelSH-WB-5GDR
    Order NumberSH-WB-5GDR(-80)
    Temp ControllerMicroprocessor Digital controller

    Temp Control Range

    Ambient -100℃ ~ -60℃ (-180℉  ~ -76℉ ) (Low limit -80)
    Dimension Internal
    (Φ×H)
    180Φ×210Hmm
    7.09Φx8.27''
    Dimension External
    (WxD×H)
    505x620x750mm
    19.88x24.41x29.52''
    Weight75 kg
    Material InternalStainless Steel
    Material ExternalSteel Plate With Powder Heating Coated
    TrapOpenable Glass Trap x3ea
    Noise (dB)
    50
    Power 120V ,60Hz, 1Φ
    Cat. No.WB5GDR-80120-60
    Power
    230V,60Hz, 1Φ
    Cat. No.WB5GDR-80230-60
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
