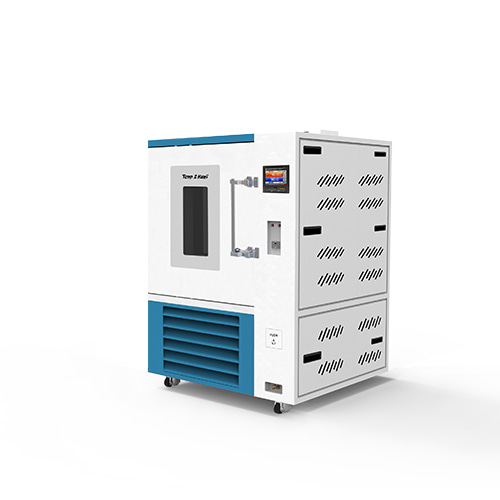

Temp & Humi Control Climate Chamber SH-CTH-800SCR1

Temp & Humi Control Climate Chamber

(Temp range: ambient -45℃ ~ 120℃)

- Powerful Cool-Down capacity

- Excellent temperature uniformity and accuracy
- Non-dew condensation observation window
- Powerful computer interface function
- Multiple computer interface for operation state
- SD Card installation allows real time recording

  • Specification

  • Inquiry

  • Climate Chamber(Temp&Humi Control Model) simulates the effects on a product or material when its subjected to a range of temperature and humidity conditions. This unit has a powerful cooling system and interface functions. It also contains a non-dew observation window and an economic heating up function. Applications of this equipment range from food science, semiconductors, and to military quality assurance.


    - Powerful Cool-Down capacity
    - Excellent temperature uniformity and accuracy
    - Non-dew condensation observation window
    - Powerful computer interface function
    - Multiple computer interface for operation state
    - SD Card installation allows real time recording

    - Leveling casters

    - Door sealing gasket

    - Port hope for data cable



    Uniformity sheet









    Shelves detail







    Selection guide



  • ModelSH-CTH-800SCR1
    Temp RangeAmbient -45℃ ~ 120℃(Ambient -55℉~248℉) (Low limit -25℃)
    Humi Range
    50% ~ 98% at Temp 20℃ ~ 35℃ (68℉~95℉)
      30% ~ 98% at Temp 35℃ ~ 80℃ (68℉~176℉)

        25% ~ 90% at Temp 80℃ ~ 85℃ (176℉~185℉)

        20% ~ 80% at Temp 85℃ ~ 90℃ (185℉~194℉)

    Accuracy & Stability Temp
    ±0.1℃
    Accuracy & Stability Humi±1.5%
    Temp Uniformity±0.5℃
    Humi Uniformity±2%
    Temp & Humi ControllerTouch Screen Temp & Humi Controller
    Sensor TempPt-100Ω
    Sensor HumiElectronic Sensor

    Dimension Internal

    (W×D×H )

    1000x800x1000mm

    39.37x31.50x39.37'

    Dimension External

    (W×D×H )

    1620x1445x2100mm

    63.78x56.89x82.67''

    Weight495 Kg
    Material InternalStainless Steel
    Material ExternalSteel Plate with Powder Heating Coated
    Shelves2 Supplied (31 Maximum)
     Temp Heater Capa3.0 KW
     Humi Heater Capa4.0 KW
     Illumination LED Lamp
    View Windows  Hot wire type glass
     Water Storage tank Stainless Steel with Powder Heating Coated

    Electrical Requirements

    230v, 50/60Hz, 1Φ



    N/A

     Cat. No. 50Hz (60Hz)
     Electrical Requirements
    230v,50/60Hz, 3Φ



    24.4 A

     Cat. No. 50Hz (60Hz)CTH800SCR1230-50-3 (CTH800SCR1230-60-3)

     Electrical Requirements

    380v,50/60Hz, 3Φ

    14.1 A

     Cat. No. 50Hz (60Hz)CTH800SCR1380-50-3 (CTH800SCR1380-60-3)
