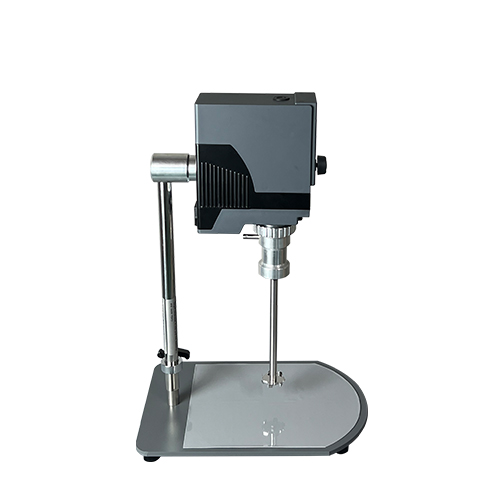

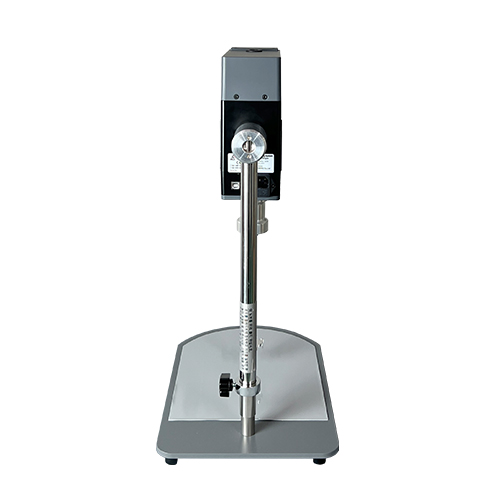

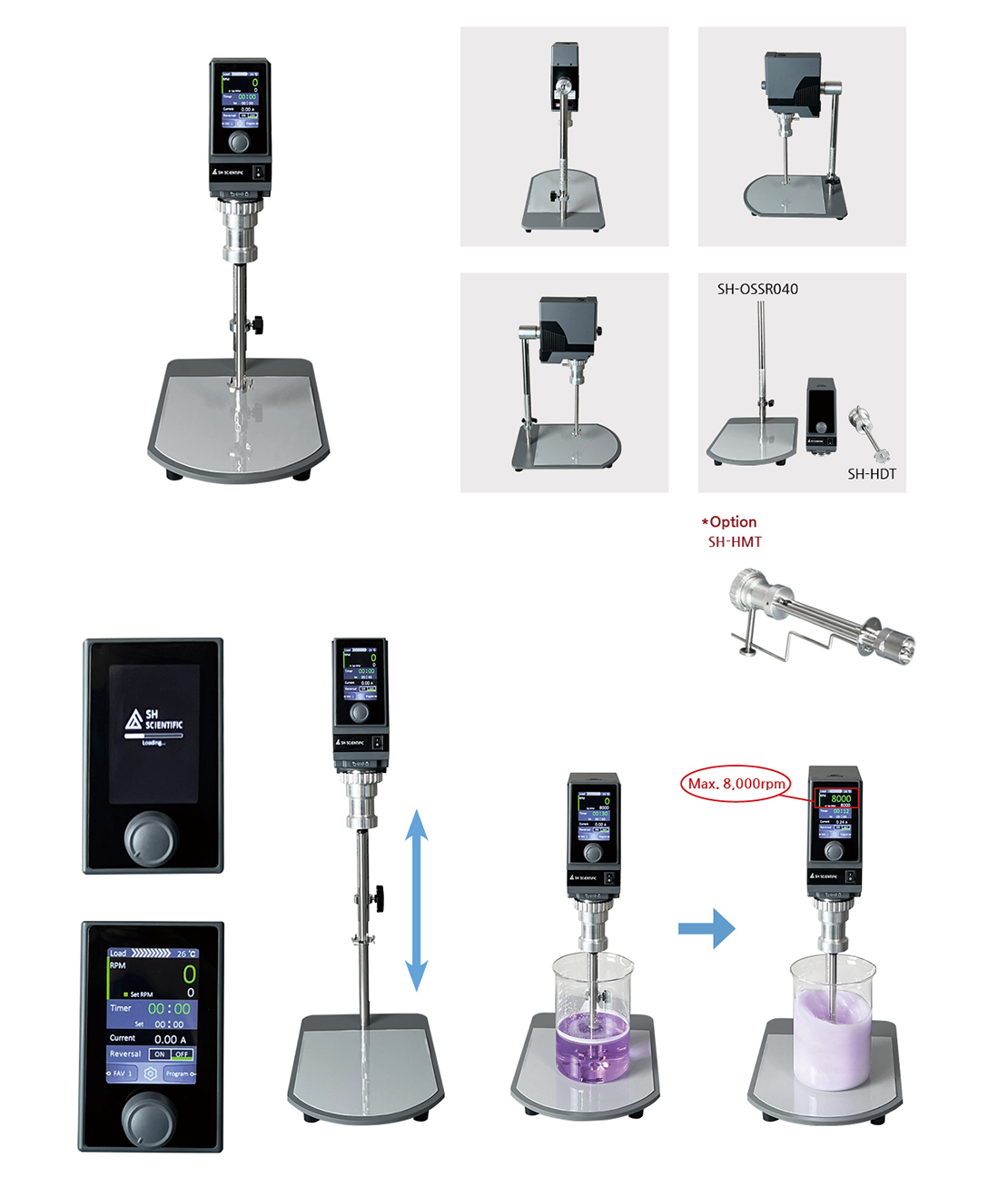

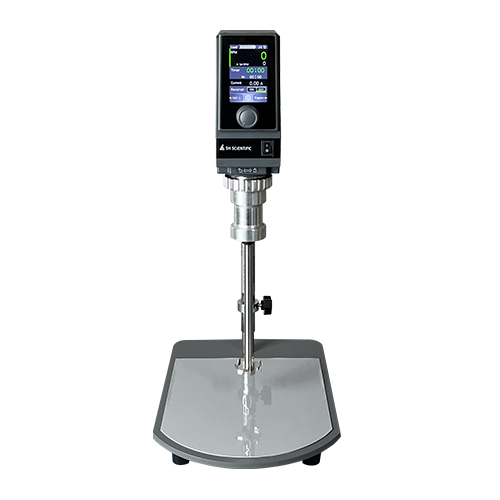

Homo Disperser SH-HD-Set

Max. 5(Liter)(H₂O)

Speed Range 500~8,000rpm

  • Brushless DC motor
  • Automatic Reverse operation
  • Provides Precise and Smooth motion
  • Telescopic stand provided
  • High Fidelity Touch Color LCD Display
  • Provides Convenience of use for Accurate experiments
  • High safety (Over-Load & Current, Over-Heat Protection, Electric Error Code Display)
Overhead Stirrer 디지털
  • Specification

  • Inquiry

    • • Accessory
    Overhead Stirrer 디지털 악세서리


    Model Name Description

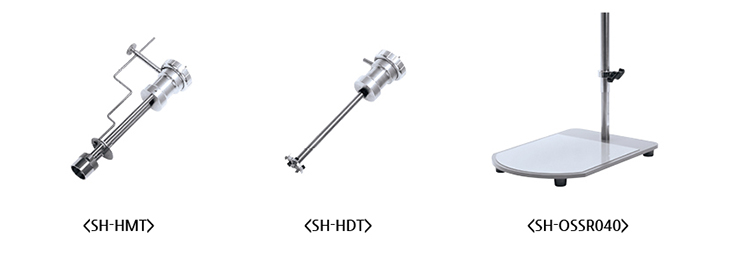

    SH-HMT
    Homo Mixer Tool / Tool For Homomixer
    SH-HDT
    Disper Tool / Tool For Homodisperser
    SH-OSSR040
    Telescopic Stand for Homo Mixing System, Stand For HM-SET, HD-SET
  • Model SH-HD-SET
    Speed Range
    500 to 8,000 rpm(without load)
    Speed Control Resolution
    10rpm
    Maximum Volume (H2O)
    Max. 5 Lit.
    Motor Wattage
    300W
    Working Direction
    Forward & Reverse
    (Can change automatically by program operation)
    Motor Type
    Brushless DC Motor
    Safety Devices
    Overload, Current & Heat Protector for Motor, Electric Error Code Display
    Permissible Temp. & Humidity
    5℃~40℃, <80%
    Setting Tool
    'SH-HDT' Homo Disper Tool
    Material
    Turbine
    SUS316
    Shaft
    SUS304
    Controller
    Digital PID Feedback Control
    High Performance MCU
    (Power mode available : Non Feedback control)
    Timer
    99hr 59min
    Display
    High Fidelity Touch Color 3.5inch LCD Display
    Others – Special function
    Current monitoring in real time
    Motor Temp. monitoring in real time
    Favorite setting function (Total 8ea)
    Real Time Monitoring and date back up by USB port
    Program Operation
    9 Programs, 11 Steps
    Dimensions (wxdxh) & Net Weight
    80 x 185 x 260 mm, 10.39kg
    Packing Size (wxdxh) & Gross Weight
    290 x 800 x 180 mm, 12.14kg
    Power Consumption
    350W
    Power Supply
    1 Phase, AC 120V, 60Hz or AC 230V, 50/60 HZ
    Accessories
    SH-HDT, SH-OSSR040
