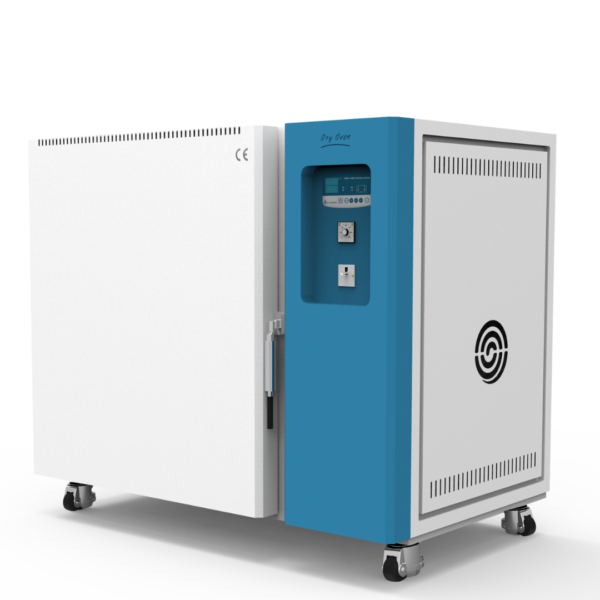

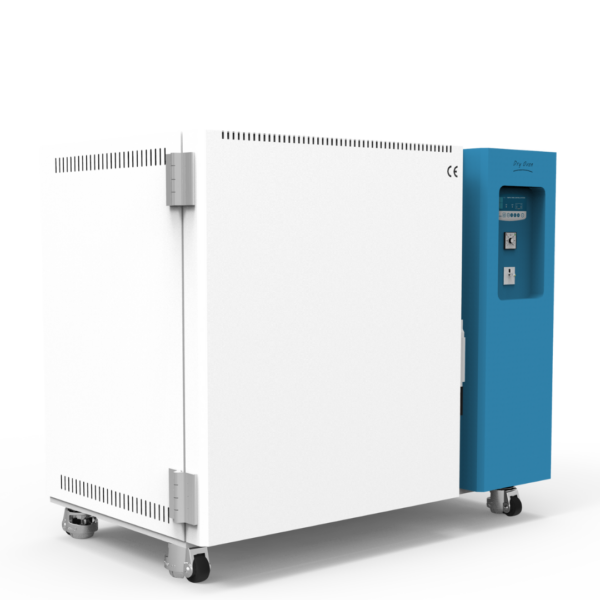

90FS – 500°C – SH High Temperature Drying Oven

500℃ High Temp Drying Oven

SH-DO-90FS(91L Chamber)



  • 91L chamber (450x450x450mm)
  • Tmax 500°C and temperature uniformity +/-5.5°C at 400°C
  • Material drying & curing
  • Fast ramp up. Takes 36min to 400°C
  • Durable heavy duty fan
  • 2 shelves included. Max 12 shelves can be added
  • Specification

  • Documents

  • Inquiry

  • SH Scientific 500˚C high temperature forced convection drying oven is suitable for materials that need to be dried and cured under high temperature up to 450˚C.

    This FS series comes with superb insulation designed to ensure user safety.

    Second to none temperature uniformity (+/-5.5˚C at 400˚C)

    Durable fan design withstanding high temperature.

  • Model SH-DO-90FS
    Air circulation type Forced convection
    Capacity 91 liters
    Temperature range Ambient +10°C (18°F) to 500°C (932°F)
    Temperature stability +/-0.1°C
    Temperature uniformity +/-5.5°C at 400°C
    Controller Digital PID controller * Temp & time control
    Shelves 2 included (can have up to 12 shelves)
    Heater 3.3kW
    Internal dimension/material 450x450x450mm (17.7×17.7×17.7in) / stainless steel
    External dimension/material 1196x700x925mm (47.1×27.6×36.4in) / steel plate with powder coated
    Weight 190kg
    Power supply 220V, 50/60Hz, 1p, 18A
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
