18.7MHV – 1500°C – SH Vacuum Muffle Furnace

Max Temp 1500℃ vacuum furnace

SH-FU-18.7MHV(18.7L chamber)

Also available in 4.5 liter capacity.
  • Creating non-oxidation atmosphere thanks to inert gas full saturation with vacuum. LOW NOISE vacuum pump is available as option.
  • Adding optional digital mass flow controller and back pressure regulator will produce the purest result with zero oxidation. SH Scientific’s unique innovative configuration!
  • Creating your multiple atmospheric environment (burning in air, purging air and pulling vacuum, flowing inert gas and sintering)
  • No limitation on materials sizes compared to the ones with tube furnace
  • Support hardening, annealing, tempering, brazing and sintering with or without vacuum
  • Vacuum heat treating and vacuum brazing
  • Recommended ideal running temperature is below 1350°C

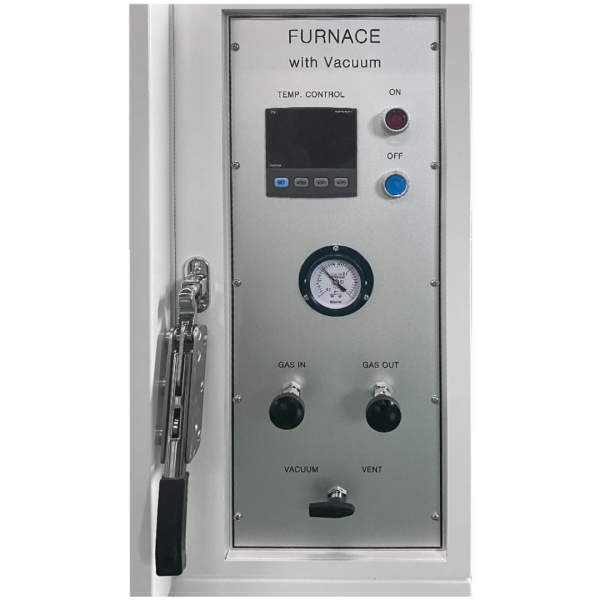

  • Vacuum close and vent valve
  • Gas inlet/outlet ports
  • Mass flow controller for 98 kinds of various gases including Argon, Nitrogen and Hydrogen. Option
  • Back pressure regulator. Option
  • Preventing the non-crossing streamlines phenomenon inside chamber

  • Specification

  • Documents

  • Inquiry

  • SH Scientific’s benchtop vacuum muffle furnace ensures an oxygen-free environment for thermal treatment. It also facilitates a carbon-free atmosphere for applications like battery anode material development, metal injection molding, metallization, and sintering.

    Unlike narrower tube furnaces, the muffle chamber design accommodates bulky samples for more efficient, cost-effective processing.

    Key Advantages

    Total environmental control: An optional digital mass flow controller and back pressure regulator ensure zero oxidation for material purity.
    Innovative design: Vacuum pump overcomes the non-crossing streamlines phenomenon for full inert gas saturation—even in the corners of the chamber.
    Versatile atmospheric control: Custom and pre-programmed settings allow multiple inert gas environments within a single treatment cycle (e.g., burning in air, purging air and pulling a vacuum, introducing inert gas, and then sintering).

    Product Series

    Each of these convenient benchtop models is built and rigorously tested in South Korea, then delivered and supported from the US.

    Low-noise vacuum pumps are also available for a quieter, more pleasant, and more focused working environment.

    Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.

  • Model SH-FU-4.5MHV SH-FU-18.7MHV
    Max temperature 1500°C 1500°C
    Continuous running temperature 1350°C 1350°C
    Chamber volume 4.5liters 18.7liters
    Controller SP590 programmable controller SP590 programmable controller
    Heater 3.3kW 10.0kW
    Sensor R type R type
    Heating element SIC SIC
    Insulation Ceramic board & wool (ceramic fiber) Ceramic board & wool (ceramic fiber)
    Chamber size 150x200x150mm 250x300x250mm
    External size 630x590x830mm 1050x900x940mm
    Option Digital vacuum meter Digital vacuum meter
    Mass flow controller Mass flow controller
    Back pressure regulator Back pressure regulator
    Power supply 220V, 50/60Hz, 1p, 15A 220V, 50/60Hz, 3p, 25A

    380V, 50/60Hz, 3p, 15A
