SH Fume Hood – 900UP

Fume Hood(3')

900x800x2350(mm)

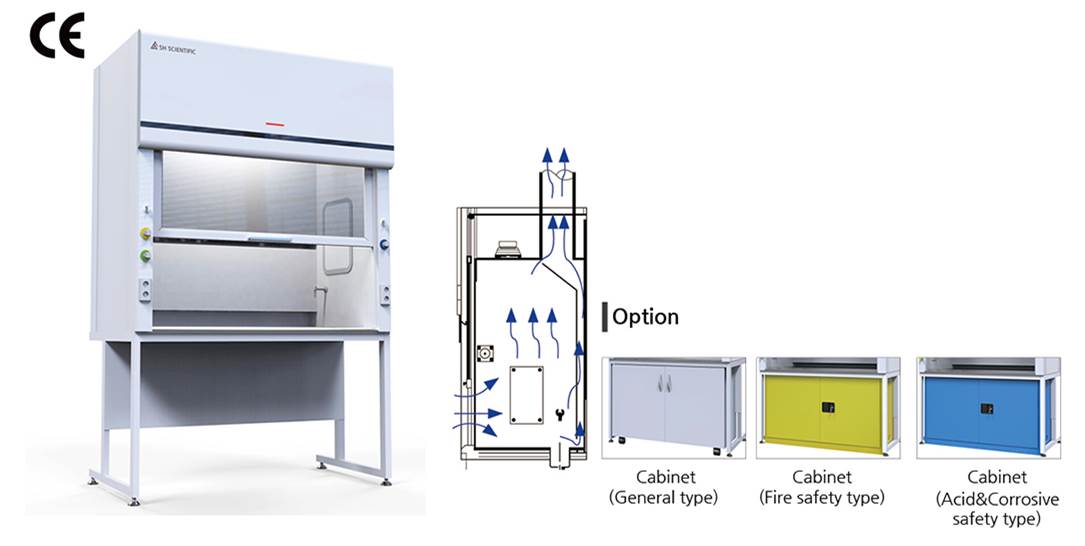

Fume hood is a type of local ventilation device that is designed to limit exposure to hazardous or toxic fumes, vapors or dusts. Fume hood is typically a large piece of equipment enclosing five sides of a work area, the bottom of which is most commonly located at a standing work height.

 * Convenient operations with valve and electric side arrangement

 * Dome-type duct design to eliminate swirl and residual conditions

 * Reduce Co2 emissions by 38%, reduce power consumption by 62% (performance certified)

 * Phenolic laminate inside, excellent chemical resistance

 * Easy fit removable inspection hole

 * Blog operations indicator lamp (green) and sound alarm




We recommend adding our add that product

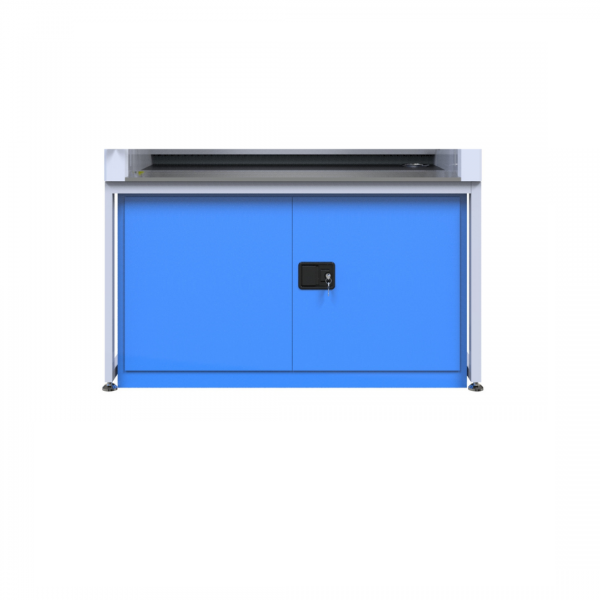

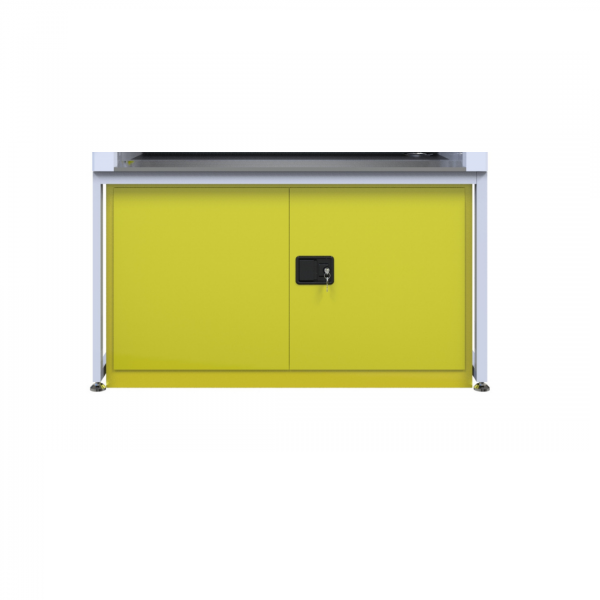

PRODUCT Option

  • Inquiry

  • ModelSH-HD-900UP
    TypeFume Hood Type
    Dimension External
    (WxDxH)
    900x800x2350mm
    35.43x31.50x92.52"

    Dimension Internal

    (WxDxH)

    724x676x1160mm
    28.50x26.64x45.67"
    StructureAL. Profile
    ExteriorPhenolic Laminate
    Interior / BafflePhenolic Laminate

    Work Top

    Phenolic Laminate, Epoxy, P.P / P.V.C, Stainless steel, Stoneware

    SashTempered Safety Glass 5.0T / Transparent clear
    UtilityAir / N2 / Water
    Cock & ValveP.P / Brass
    LampLED
    Lamp case Explosion proof / Vapor proof - Optional
    Electrical supplyExternal socket, 110V/220V. 60Hz
    ControllerLCD Touch controller - Optional
    Cat. No.120VHD900UP120
    Cat. No.230V HD900UP230
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
