Viscosity Measuring Digital Overhead Stirrer, SH-OSDV-25,SH-OSDV-25-Set

Max. 25(Liter)(H₂O)

70,000mPas



  • Can measure Torque during operation in real time.
  • Can be carried out immediately via a easy in use menu.
    The provided Impeller for precise work in torque and viscosity measurement.
  • You can set the target viscosity in SH-OSDV and then it will operate until reach target viscosity properly.
  • The wide display enable users a convenient checking on current range of set values for the operation of the product.
  • Over-Heat, Over-Load, Over Current Protection to secure the safety of products and sample
  • High Durable; Chrome-Plated "Anti-Rust Chuck", "Anti-Trembling" function for Impeller
  • Belt type gear system with powerful motor realize soft and powerful operation 3 ratio of gear applied products cover wide range of sample

Overhead Stirrer 디지털

  • Specification

  • Inquiry

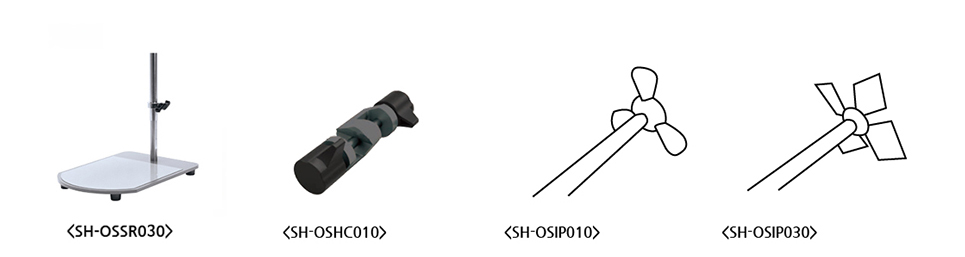

    • • Accessory
    Overhead Stirrer 디지털 악세서리


    Model Name Description

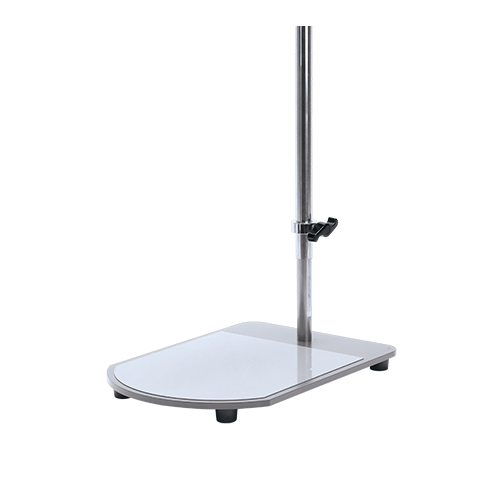

    SH-OSSR030 Telescopic Stand for Overhead Stirrer & Homogenizer.
    SH-OSHC010 Clamp for Overhead Stirrers and Homogenizers, up to Ø23mm Rod
    SH-OSIP010
    Propeller, 3 x bladed, Ø8 L500 mm rod, Ø50 mm blade, For SH-OSDV-25-Set
    SH-OSIP030
    Diamond, 4 x bladed, Ø8 L500 mm rod, Ø90 mm blade, For SH-OSDV-60-Set




    Stirring Tools with Exchangeable Blades for Overhead Stirrers


    Model Name Description
    SH-OSIP010 Propeller, 3 x bladed, Ø8 L500 mm rod, Ø50 mm blade
    SH-OSIP011
    Propeller, 3 x bladed, Ø8 L500 mm rod, Ø60 mm blade
    SH-OSIP012
    Propeller, 3 x bladed, Ø8 L500 mm rod, Ø80 mm blade
    SH-OSIP013
    Propeller, 3 x bladed, Ø8 L500 mm rod, Ø100 mm blade
    SH-OSIP020
    Propeller, 4 x bladed, Ø8 L500 mm rod, Ø70 mm blade
    SH-OSIP021
    Propeller, 4 x bladed, Ø8 L500 mm rod, Ø90 mm blade
    SH-OSIP022
    Propeller, 4 x bladed, Ø8 L500 mm rod, Ø110 mm blade
    SH-OSIP030
    Diamond, 4 x bladed, Ø8 L500 mm rod, Ø90 mm blade
    SH-OSIP031
    Diamond, 4 x bladed, Ø8 L500 mm rod, Ø110 mm blade
    SH-OSIP040
    Centrifugal, 2 x bladed, Ø8 L500 mm rod, Ø110 mm blade
    SH-OSIP050
    Centrifugal, Teflon-coated, 2 x bladed, Ø8 L500 mm rod, Ø90 mm blade
    SH-OSIP051
    Centrifugal, Teflon-coated, 2 x bladed, Ø8 L500 mm rod, Ø120 mm blade
    SH-OSIP060
    Anchor, 2 x bladed, Ø8 L500 mm rod, Ø70 mm blade
    SH-OSIP061
    Anchor, 2 x bladed, Ø8 L500 mm rod, Ø90 mm blade
    SH-OSIP111
    Propeller, 3 x bladed, Ø10 L650 mm rod, Ø60 mm blade
    SH-OSIP112
    Propeller, 3 x bladed, Ø10 L650 mm rod, Ø80 mm blade
    SH-OSIP113
    Propeller, 3 x bladed, Ø10 L650 mm rod, Ø100 mm blade
    SH-OSIP121
    Propeller, 4 x bladed, Ø10 L650 mm rod, Ø90 mm blade
    SH-OSIP122
    Propeller, 4 x bladed, Ø10 L650 mm rod, Ø110 mm blade
    SH-OSIP131
    Diamond, 4 x bladed, Ø10 L650 mm rod, Ø110 mm blade
    SH-OSIP161
    Anchor, 2 x bladed, Ø10 L650 mm rod, Ø90 mm blade
    SH-OSIP162
    Anchor, 2 x bladed, Ø10 L650 mm rod, Ø140 mm blade
  • Model SH-OSDV-25 SH-OSDV-25-Set
    Stirring Capacity
    Max.25 Lit.(H2O)
    Maximum Viscosity 70,000 mPas
    Maximum Torque 130Ncm
    Gear Rate
    2.0:1
    Speed Range
    30 to 2,000rpm
    Motor Rating (Input/Output)
    200W / 160W
    Timer
    99hr 59min
    Display
    Touch Color LCD
    Controller
    Digital PID Feedback Control
    High Performance MCU
    Viscosity Measurement Range
    10,000 to 100,000 mPas (15% Deviation)
    Max. Impeller Shaft Diameter
    10 mm
    Others - Special function
    Torque Measuring Function in real time
    Viscosity Calculation
    Target Viscosity Operation
    Real Time Monitoring by USB port
    Permissible Temp. & Humidity
    0~40℃, 80%
    Safety Device
    Overload & Heat Protector for Motor
    Error Code Display
    Material
    ABS and Aluminum
    Power Consumption
    280W
    Dimensions(wxdxh)
    80x194x245mm
    Net Weight
    3.95Kg
    Packing Size(wxdxh)
    310x365x135mm
    Gross Weight
    4.57Kg
    Power Supply
    AC 120V, 60Hz or 230V, 50/60Hz, 1 Phase
    Accessories
    - SH-OSSR030, SH-OSHC010, SH-OSIP010
