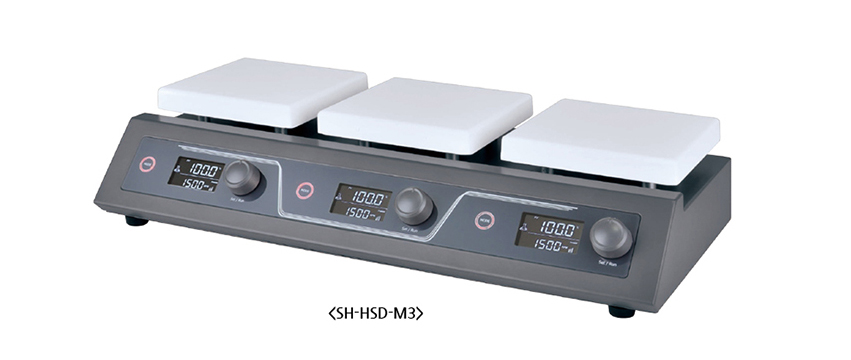

Multi Hotplate Stirrer(Digital Model, 3 Place)SH-HSD-M3, SH-HSD-M3-Set

Max. 80 to 1,500rpm

Max. 350℃

멀티 가열 자력교반기, Multi Hotplate Stirrer 디지털 (Digital Model)

  • Specification

  • Inquiry

    • • Accessory
    • (Only in SH-HSD-M3-Set model)

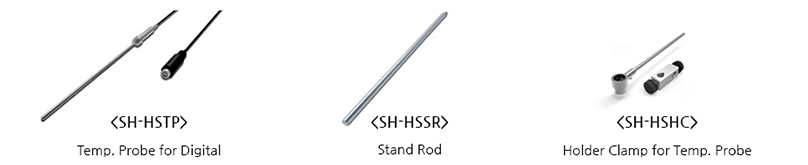

    Temp. Probe for Digital, Stand Rod, Holder Clamp for Temp. Probe
  • Model SH-HSD-M3
    SH-HSD-M3-Set
    Stirrer Speed Range
    80 to 1,500rpm
    Speed control resolution
    5 rpm
    Maximum Stirring Volume(H2O)
    20Lit.
    Plate Dimension
     140 x 140mm x 3 Place
    Heating Temperature
    Max. 350℃
    Temp Accuracy
    ±0.3℃
    Temp Resolution
    Display
    0.1℃
    Control
    0.1℃
    Controller
    Digital Fuzzy Controller with Touch Button & Jog Dial
    Timer
    99hr 59min
    Display
    Full Digital LCD Display with Back-Light Function
    Heating Output
    400W x3
    Motor Type
    Brushless DC Motor
    Power Consumption
    1,300W
    Permissible Temp. & Humidity
    5℃~40℃, <80%
    Safety Devices
    Over Temp Protection
    Material
    Plate
    Ceramic Coated Aluminum
    Body
    Powder Coated Steel
    Dimensions(wxdxh)
    500x240x110mm
    Net Weight
    7.3kg
    Packing Size(wxdxh)
    590x310x150mm
    Gross Weight
    8.1kg
    Power Supply
    230V, 50/60 Hz, 1Phase
    Accessories
    - SH-HSTP, SH-HSSR, SH-HSHC
