Class B AUTOCLAVE SH-AC-18B

Class B AUTOCLAVE

SH-AC-18B

SKUSH-AC-18B

CategoriesAutoclave, Tabletop Autoclave




  • Specification

  • Inquiry

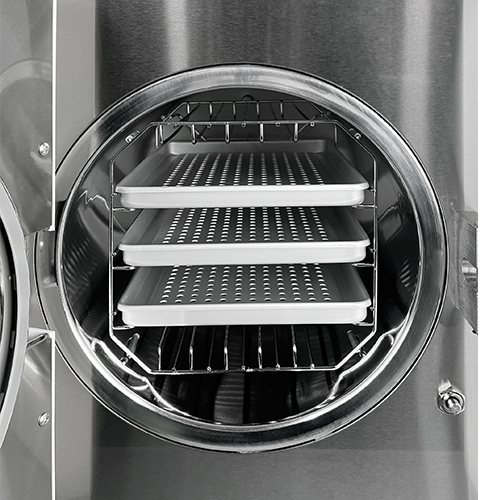

  • Trays

     Model

     Quantity

    Materia

     Dimensions(WxD)

     SH-AC-18B

     Standard 3pcs, Max 5pcs

    Aluminum

     192x285mm

     SH-AC-23B

     Standard 3pcs, Max 5pcs

    Aluminum

     192x380mm

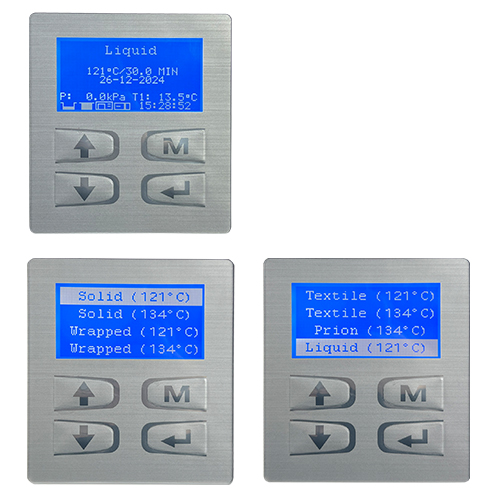

    Pre-programmed cycles

    Program Temp(℃) Pressure(kPa) Sterilization
    Time(min)
    Program
    SH-AC18B SH-AC23B
    SOLID 134 210 4 14-30 25-45
    121 110 20 30-40
    30-60
    WRAPPED
    134 210 10 30-45
    35-60
    121 110 30 45-60
    35-65
    TEXTILE
    134 210 4 35-50
    45-65
    121 110 20 55-70
    50-75
    PRION 134 210 18 45-60
    50-75
    DRYING
    (optional)
    -
    -
    -
    1-20
    1-20
    B & D TEST
    134
    210
    3.5
    15-30 28-35
    HELIX TEST
    134 210 3.5 15-30
    28-35
    VACUUM TEST
    -
    -
    -
    19-22
    20-25

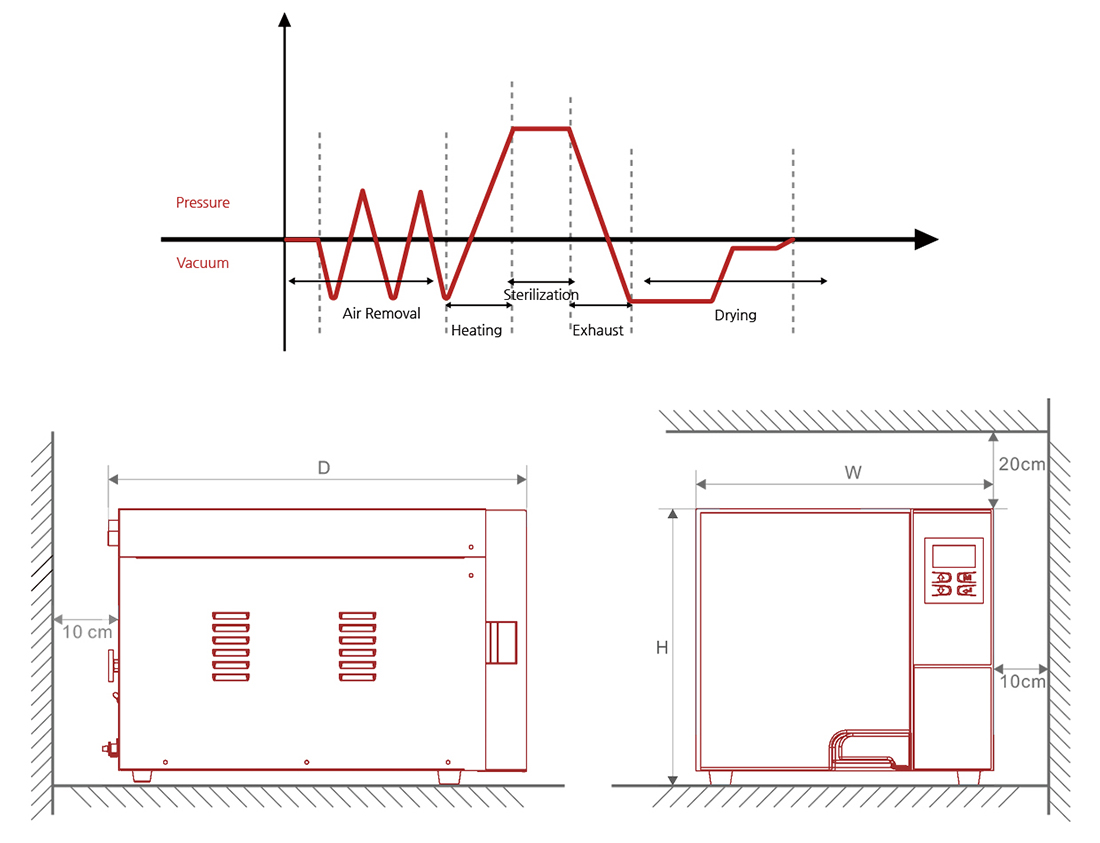

    Graphic of working cycle

    __________________________________________________________________________________________________________________________

    • Class B (pre & post vacuum)
  • Model SH-AC-18B
    Temp RangeMax 138℃  (280.4℉)
    Volume18L
    Using Press76 to 106 kPa (0.8 to 1.1 kg/㎠)
    Temp ControllerLCD Controller
    Material InternalStainless Steel
    Tray3pcs
    Chamber size∅247x350mm
    Dimension External (WxDxH)490x600x455(mm) / 19.29x23.62x17.91(inch)
    USB port and USB stickStandard
    PrinterOption
    Net weight47 Kg
    Power1750 W/220V
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
