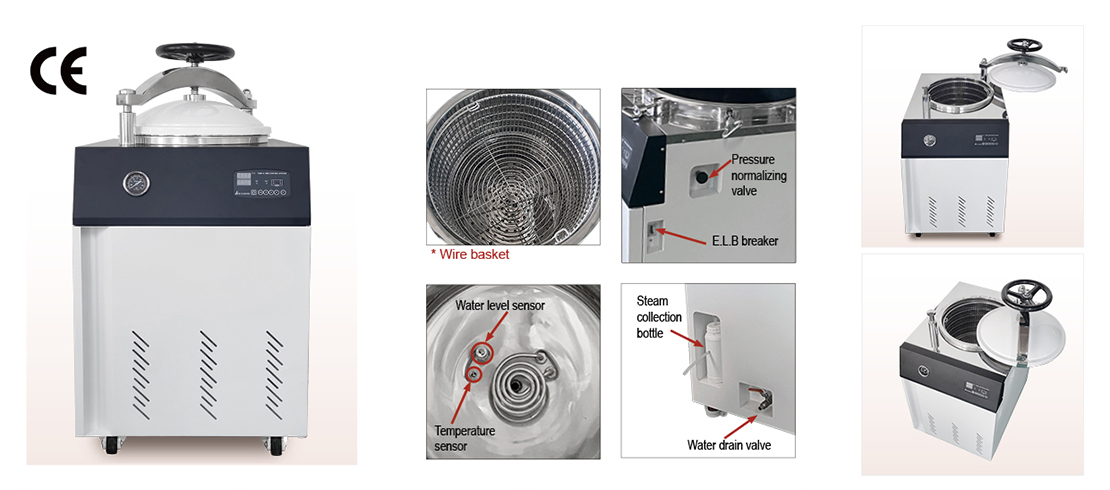

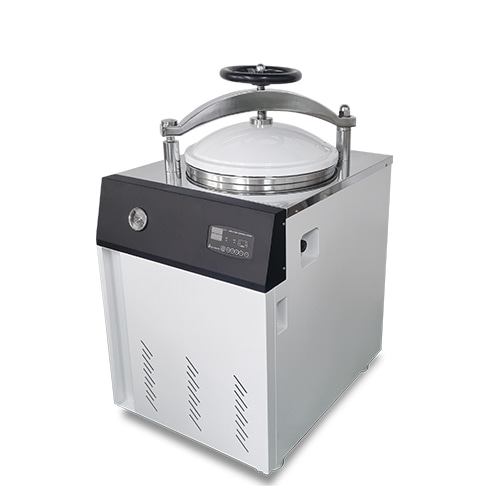

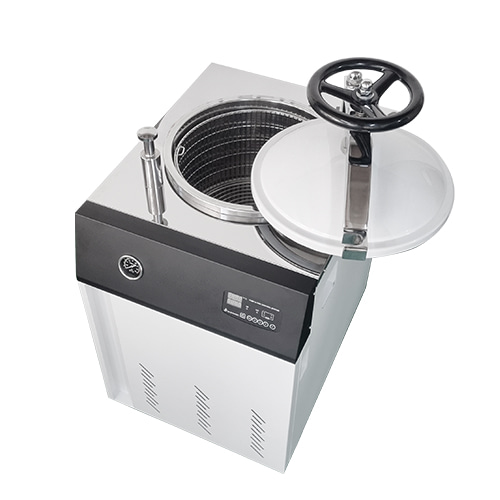

Vertical Autoclave (Steam Sterilizer) SH-AC-60M

Vertical Autoclave (Steam Sterilizer)

SH-AC-60M

SKUSH-AC-60M

CategoriesAutoclave, Vertical Autoclave

- Safety door opening mechanism assures user's safety as the door remains locked as long as there is excess residual pressure in the chamber

- Automatic safety relief valve is installed for over pressure protection

- Excellent temperature uniformity and accuracy

- Stainless steel inner chamber with baskets

- Arm Handle type door lock for convenient operation & plastic cover door cover for safety

- Safety assurance with C.E conformity


  • Specification

  • Inquiry

  •  * Accessory                                        * Option                                    * Safety Device
      - Wire basket x 2EA                             - RS-485 interface                     - Automatic reset function incoming power cut
                                                                   - RS-232C interface                  - Buzzer on when set time arrived
                                                                                                                     - Electric leakage circuit breaker
                                                                                                                     - Over temperature protection device
                                                                                                                     - Safety relief valve
                                                                                                                     - Safety Door opening mechanism
                                                                                                                     - Water level sensor (water shortage alarm)

    Vertical Autoclave (Steam sterilizer) has been used by various application where efficiency, ease-of-use and affordable budget are pursued. In this pandemic period, this large scale vertical autoclave lessen the labors and risks at customers’ sites.

    Vertical autoclaves (or steam sterilizer) have been widely used in biomedical research such as microbiology and mycology as well as medical and chemical sterilization. Typical loads include laboratory glassware, other equipment and waste, surgical instruments and medical waste and subject them to pressurized saturated steam at 121°C (250°F).

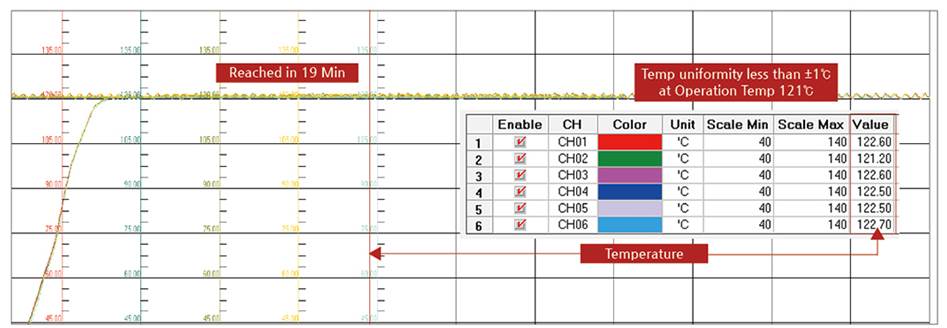

    Uniformity sheet

    __________________________________________________________________________________________________________________________________________________

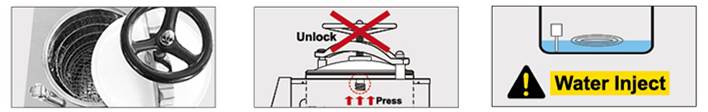

     Feature

    __________________________________________________________________________________________________________________________________________________

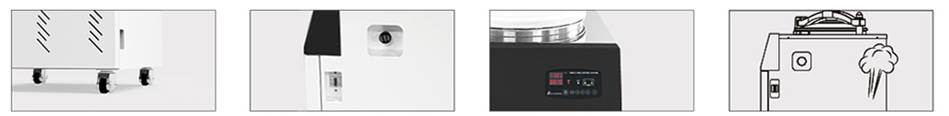

       Stainless steel with Plastic Cover Door               Safety Door Opening Mechanism                             Water level sensor




                     Leveling caster                                            E.L.B & Manual vent valve                                Digital PID controller                           Automatic over-pressure protection function

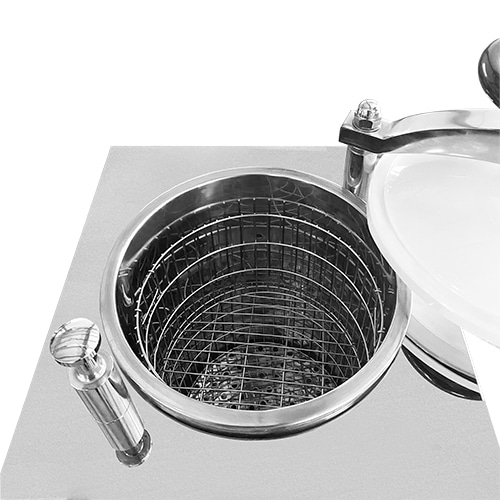

    Basket detail

    __________________________________________________________________________________________________________________________________________________







    Catalog No. Type Dimension(ΦxH) Qty Weight Material Applicable Model
    AC60WB WIRE BASKET Φ330x268
    2EA
    1Kg
    Stainless steel
    SH-AC-60M
    AC80WB WIRE BASKET Φ385x261 1.3Kg SH-AC-80M
    AC100WB WIRE BASKET Φ423x260 1.5Kg SH-AC-100M






    Here is the proud supply reference of SH Scientific Autoclave from customers and industries in US and Canana.

    ● University lab who sterilizes glass bioreactors and glass bottles.
     Testing lab who sterilizes the culture media, reagents, and equipment as well as for decontaminating biohazardous waste materials.
     Several mid-scale mushroom farmers who sterilizes bulk substrate for mushroom cultivation
     Several startup farmers who prepare grain spawn and sterilize glassware and fungal growth equipment.
     Several mushroom stores who distribute ready to use sterilized grains and substrate.
     Food ingredient company who utilizes fungi-based food-processing platforms.
     medical device surface solution company who develops a nano-scale antimicrobial coating through a vacuum deposition process.
    Bioengineering company who does genome engineering.
     Clinic who sterilizes medical wastes.
     Braided cords manufacturer who heat-set the nylon braided cords to meet the requirements of US military specification properties.
     Cannery who sterilizes glassware.
     Distillery who sterilizes yeast growth media.
     Biopharmaceutical company who sterilizes labware.
     Chemical and environmental engineering dept in university who focuses on bacteria and yeast genetic engineering. Sterilization of bottles, growth media, pipette tips, etc is the use.
     Biomedical and pharmaceutical science dept in university who needs to kill microorganisms and decontaminate certain biological waste and sterilize media, pipette tips and other lab ware       like beaker and large flasks.
    Nano engineering dept in university who sterilize glassware.
    Bioprocessing company who sterilizes fermenter vessels.

  • Model SH-AC-60M
    Temp Range Max 130℃  (266℉)

    Temp&Pressure

    *It may vary depending on the surrounding environment.


    121℃(249.8℉) / 20psig (0.14MPa)
    125℃(257℉) / 24psig (0.16MPa)
     130℃(266℉) / 30psig (0.2MPa)
    Time Controller Microprocessor Digital PID Controller
    Sterling Time 00.00 to 99HR 59MIN (MIN SEC) selectable
    Pressure Gauge Mechanical type 0 to 0.4 MPa
    Sensor PT-100
    Capa 60L
    Dimension Internal Φ344x650(H)mm / Φ13.54"x25.59"
    Dimension External (WxDxH) 550x680x1090mm / 21.65"x26.77"x42.91"
    Net Weight
    110Kg
    Material Internal Stainless Steel
    Material External Steel Plate with Powder Heating Coated
    Heater 3KW
    Electrical Requirements
    120V, 50/60Hz, 1Φ
    25.0A
    Cat.No. AC60M120
    Electrical Requirements
    230V, 50/60Hz, 1Φ
    13.0A
    Cat. No. AC60M230
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
