Class N AUTOCLAVE SH-AC-18N

Class N AUTOCLAVE

SH-AC-18N

SKUSH-AC-18N

CategoriesAutoclave, Tabletop Autoclave


  • Specification

  • Inquiry

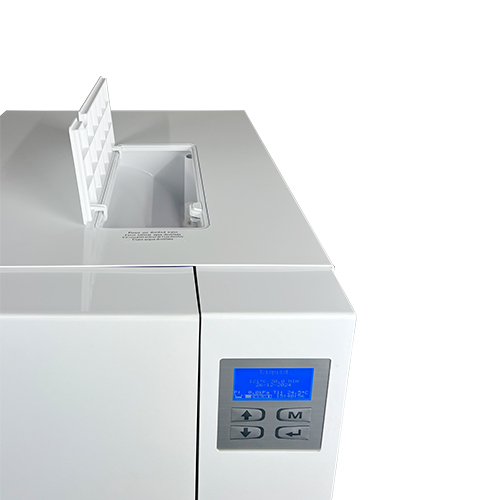

  •                                         Water tank                                                                                  Vacuum pump                                                                   Independent steam generator

                       -Convenient & accessible Water tank                                          -Rapid post sterilization vacuum drying.                                 -In built independent rapid steam generator

                                                                                                                                                (Class B only)                                                                  ensures quick sterilization cycles.

                                           LCD displaying                                                                      Double locking device                                                         Stainless steel chamber and trays














    - Fully automatic benchtop autoclave with pre set programs.

    - LCD screen displaying time, temperature and pressure, process alert and instrument conditions. Liquid sterilization program

    - Alarm function: Insufficient water supply or when the door is locked







    - European standard EN 13060 (Class B only)

    - Automatically output the result of sterilization by external printer installation











                                               *Option                                                          * Safety Device















                -Double door protection system

                -Safety relief valve

                -Electric leakage circuit breaker

                -Automatic water supply system

                -Automatic reset function incoming power cut

                -Over temperature protection device













    Graphic of working cycle

    _________________________________________________________________________________________________________________________________________________



























  • Model SH-AC-18N
    Temp RangeMax 138℃  (280.4℉)
    Volume18L
    Using Press76 to 106 kPa (0.8 to 1.1 kg/㎠)
    Temp ControllerLCD Controller
    Material InternalStainless Steel
    Tray3 EA
    Chamber sizeΦ247x350mm
    Dimension External (WxDxH)480x700x450mm / 18.89"x27.56"x17.71"
    USB port and USB stickStandard
    PrinterOption
    Net weight45kg
    Power1600W



    Pre-programmed cycles

    Program Temp(℃) Pressure(kPa) Sterilization
    Time(min)
    Program
    SH-AC18N SH-AC23N
    SOLID 134 210 4 17-27
    17-30
    121 110 20 27-37
    30-40
    WRAPPED
    134 210 4
    22-32
    20-30
    121 110 20
    32-42
    30-35
    TEXTILE
    134 210 8
    26-36
    24-34
    121 110 30 42-52
    40-45
    PRION 134 210 18 36-46
    34-44
    LIQUID
    (optional)
    121
    110
    30
    43-53
    45-55
    DRYING
    (optional)
    - - - 1-20 1-20
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
