Tabletop Autoclave SH-AC-33B

Tabletop Autoclave

SH-AC-33B

SKUSH-AC-33B

CategoriesAutoclave, Tabletop Autoclave




  • Specification

  • Inquiry

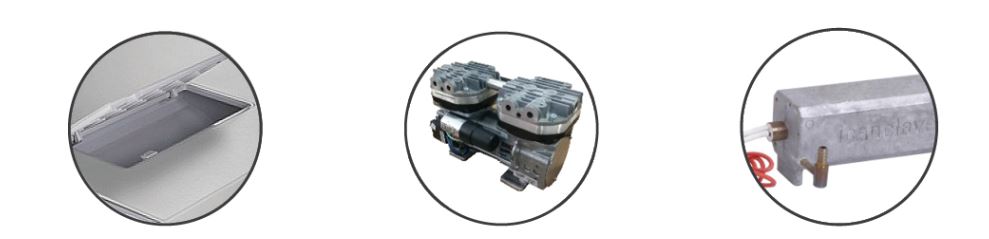

  •                                          Water tank                                                                                 Vacuum pump                                                                  Independent steam generator

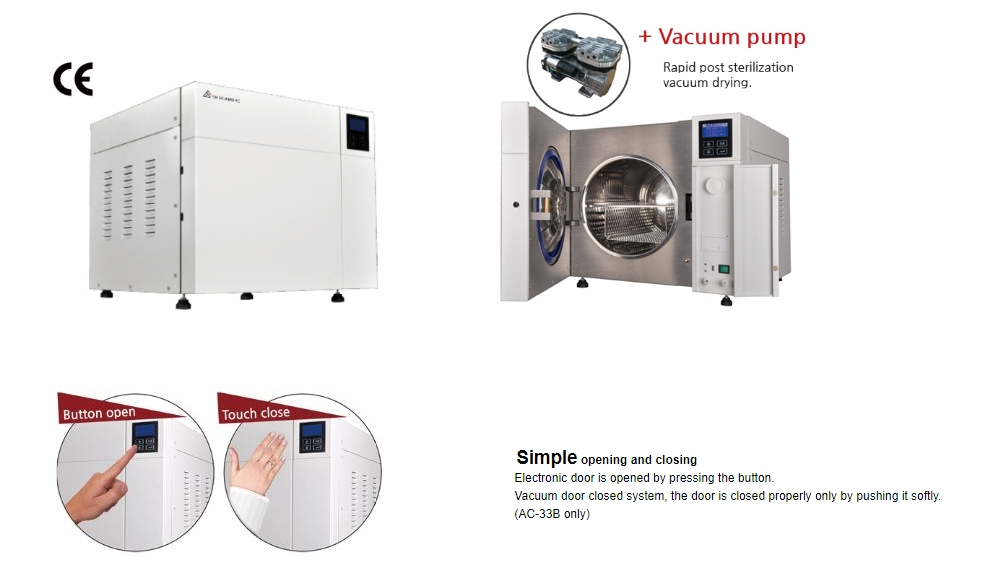

                       -Convenient & accessible Water tank                                         -Rapid post sterilization vacuum drying.                                     -In built independent rapid steam generator

                                                                                                                                                (Class B only)                                                                  ensures quick sterilization cycles.

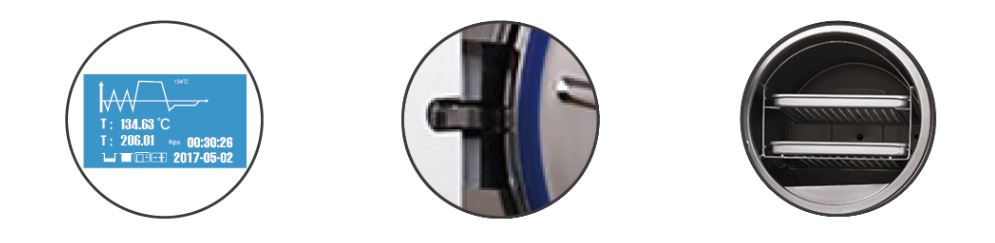

                                          LCD displaying                                                                        Double locking device                                                       Stainless steel chamber and trays











    - Fully automatic benchtop autoclave with pre set programs.

    - LCD screen displaying time, temperature and pressure, process alert and instrument conditions. Liquid sterilization program

    - Alarm function: Insufficient water supply or when the door is locked







    - European standard EN 13060 (Class B only)

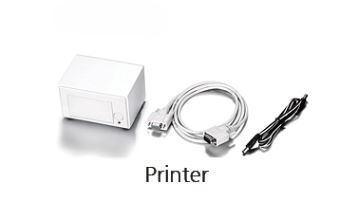

    - Automatically output the result of sterilization by external printer installation











                                                 * Option                                                        * Safety Device

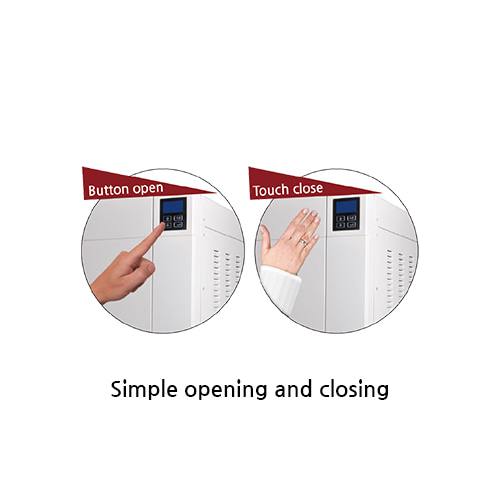

                -Double door protection system

                -Safety relief valve

                -Electric leakage circuit breaker

                -Automatic water supply system

                -Automatic reset function incoming power cut

                -Over temperature protection device

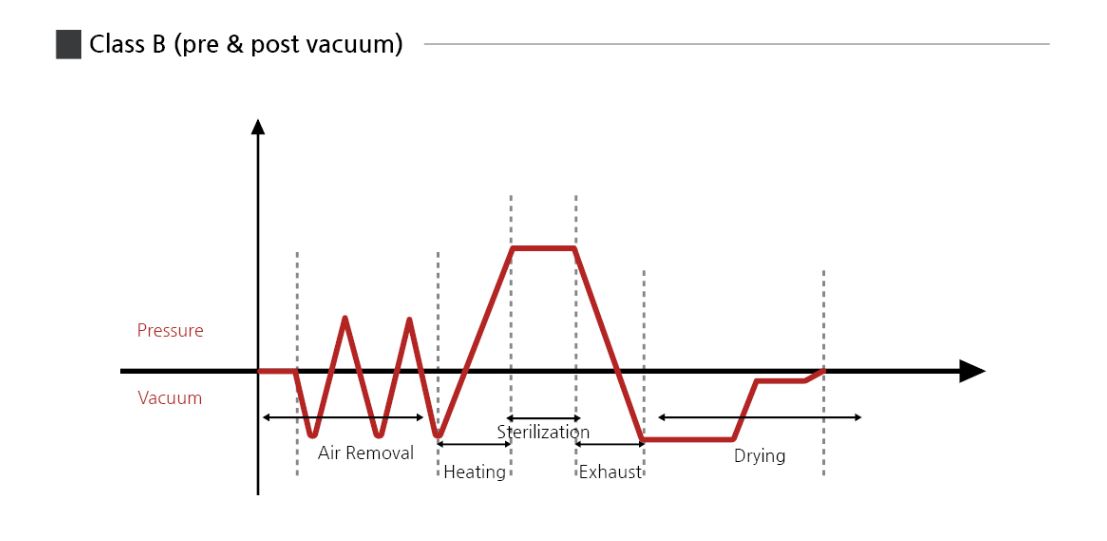

    Graphic of working cycle

    __________________________________________________________________________________________________________________________________________________



























  • Model SH-AC-33B
    Temp RangeMax 138℃  (280.4℉)
    Volume33L
    Using Press110 to 210 kPa (1.2 to 2.1 kg/cm2)
    Temp ControllerTouch Controller
    Material InternalStainless Steel

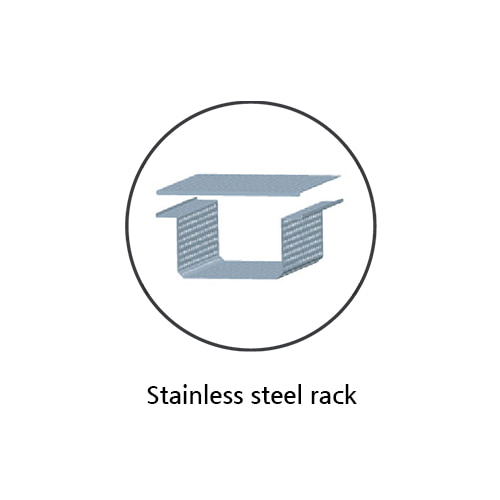

    TrayStainless Steel Rack
    Chamber sizeΦ319x417mm
    Dimension External (WxDxH)640x640x560mm / 25.2"x25.2"x22.0"
    USB port and USB stickStandard
    PrinterStandard(Built-in)
    Net weight95kg
    Power2300W

    Program

    Temp(℃) Pressure(kPa) Holding Time(min) Total Time(min) TypeMax. Load(kg) Max. Load per tray(kg)
    SOLID134210423-25

    Unwrapped solid material

    5.001.50
    LIQUID (Optional) 1211103050-70Liquid1.200.40

    WRAPPED
    &
    TEXTILE
    134210847-60 Unwrapped porous material1.250.40
    Single-wrapped porous material1.100.30

    121

    110

    30

    45-65
    Dual-wrapped porpus material0.750.25
    Single-wrapped porpus material4.001.25
    Dual-wrapped solid and hollow material2.000.60


    PRION


    134


    210


    18


    57-70
    Unwrapped porous material1.250.40
    Single-wrapped porous material1.100.30
    Dual-wrapped porous material0.750.25
    Single-wrapped hollow material4.001.25
    Dual-wrapped solid and hollow material2.000.60
    Drying (Optional)---1-20--1
    B & D TEST1342103.535-40---
    HELIX TEST1342103.535-40---
    VACUUM TEST---20-25---
