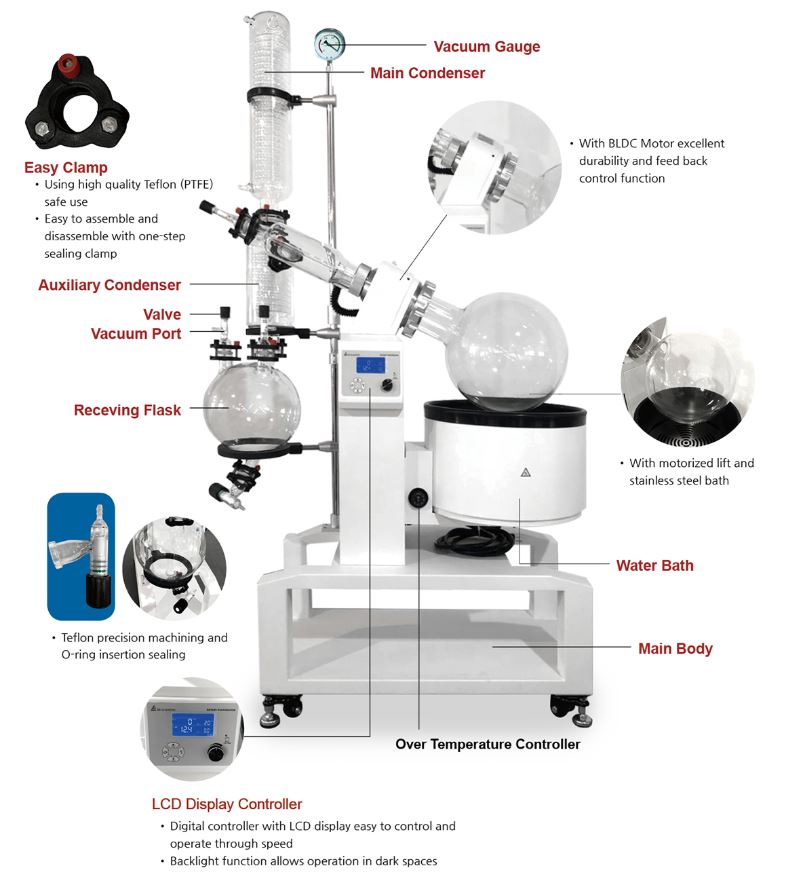

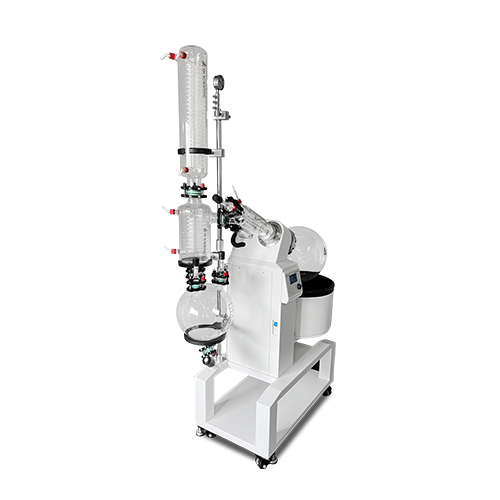

Rotary Evaporator SH-RE20L

Ambient ~99℃

20(Liter)


  • Specification

  • Inquiry

  • Rotary Evaporator can heat in constant-temperature and form film in negative pressure, simultaneously,

    it will evaporate hydrolytic enzymes to condense receiving.

    Specially is suitable for concentration, crystallization, separation, reclamation, etc, it is ideal device from biological pharmaceutical, chemical, food industry, etc.

  • Model SH-RE20ETL
    Operating Ambient Temperature 5~35
    Glass Material GG-17 High Borosilicate
    Main Motor DC brushless
    Rotation Motor DC brushless, 250W
    Lifting Motor DC brushless, 100W
    Power (V/Hz) 220V 60Hz Single Phase
    Speed Setting Knob setting +LCD controller
    Vacuum Seal PTFE + Teflon coating
    Temperature Control PID Controller
    Cooling Area (m2) 1.4
    Rotation Speed 30~130rpm
    Bath Temp. Control Range Ambient ~ 99℃
    Maximum Vacuum Pressure < 3 torrs
    Evaporating Flask Capacity 20L / 5.28 gallon
    Receiving Flask Capacity 10L / 2.64 gallon
    Condenser Style Main + Auxiliary Vertical Double Helix
    Water Bath Heating Method for Water Bath  Bulit-in heating
    Water Bath Material  Stainless steel corrosion resistant coating
     Water Bath Size 445x250mm / 17.5"x9.8"
     Lift Mode Auto lift
     Lifting Distance 210mm / 82.7"
    Heating Power 4300W
     Packing Dimensions (L) 43" x (W) 27" x (H) 56"
    Gross Weight 170kg / 375lbs
    Net Weight  130kg / 287lbs
    Vacuum Connection 18mm / 0.71" Barb
    Condenser Connection 18mm / 0.71" Barb
    Safety 1. Over current protection ; 2.Over temp. protection ; 3. Power interruption alarm ; 4. Anti-dry protection
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
