SH Rotary Evaporator Package 50L

50L Rotary Evaporator Turnkey System

Including -20℃ chiller, -40℃ cold trap bath and Welch diaphragm pump



  • 50L ETL certified rotary evaporator package
  • Ideal for production facility large batch of processing and run
  • Bundled with -20°C recirculating chiller, -40°C cold trap bath and Welch oil free diaphragm vacuum pump
  • Specification

  • Documents

  • Inquiry

  • This 5L rotary evaporator is ideal for small batch of processing and pilot run for your research and testing.

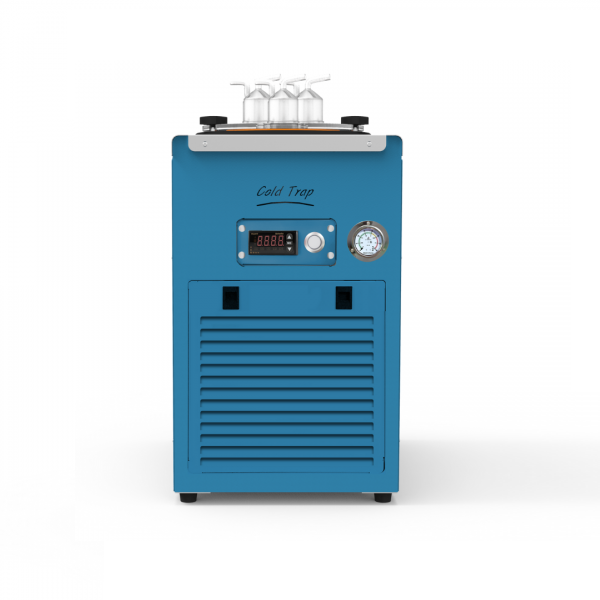

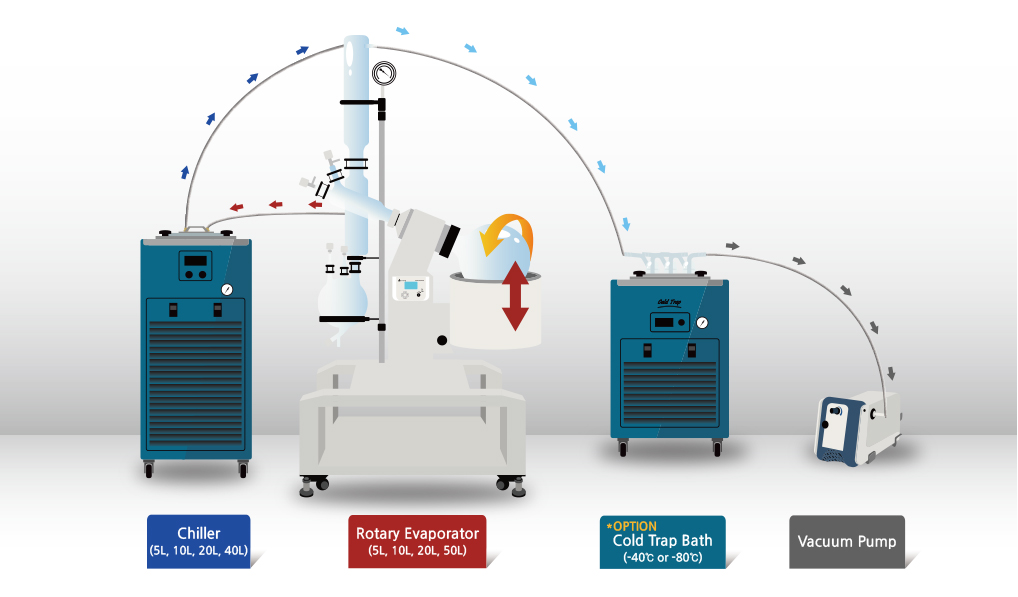

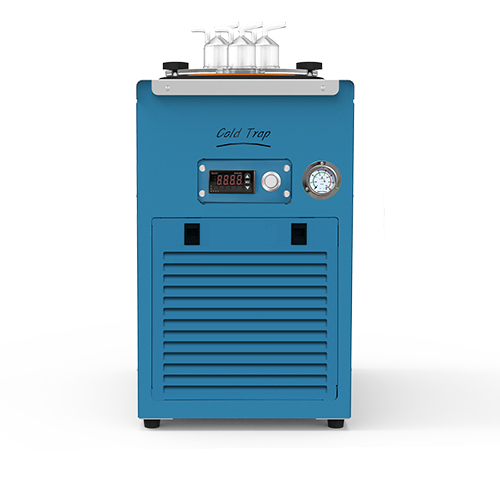

    This turnkey package consists of Welch oil-free diaphragm vacuum pump 2047B-01, SH-WB-40CDR -20°C recirculating chiller and SH-WB-5GDR(-40) -40°C mechanical cold trap bath.
    If you don’t need some of them, just exclude from option.
    Rotary evaporator (so called, rotovap) is widely used in chemical laboratories and extraction facilities for the efficient and gentle removal of solvents from liquid materials and samples by evaporation. Rotary evaporator is also used for the preparation of distillates prior to short path distillation, not to mention, concentration, crystallization, separation and reclamation in biological, pharmaceutical, chemical and food industry.

    SH Scientific rotary evaporators are all ETL certified conforming to NRTL requirement such as Electrical Equipment for Measurement, Control, and Laboratory Use; Part 1: General Requirements [UL 61010‐1], Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use Part 1: General Requirements [CSA C22.2#61010‐1‐12] and Laboratory Use ‐ Part 2010: Particular Requirements For Laboratory Equipment For The Heating Of Materials [UL 61010] and Laboratory Equipment For The Heating Of Materials [CSA C22.2#61010‐2‐010].

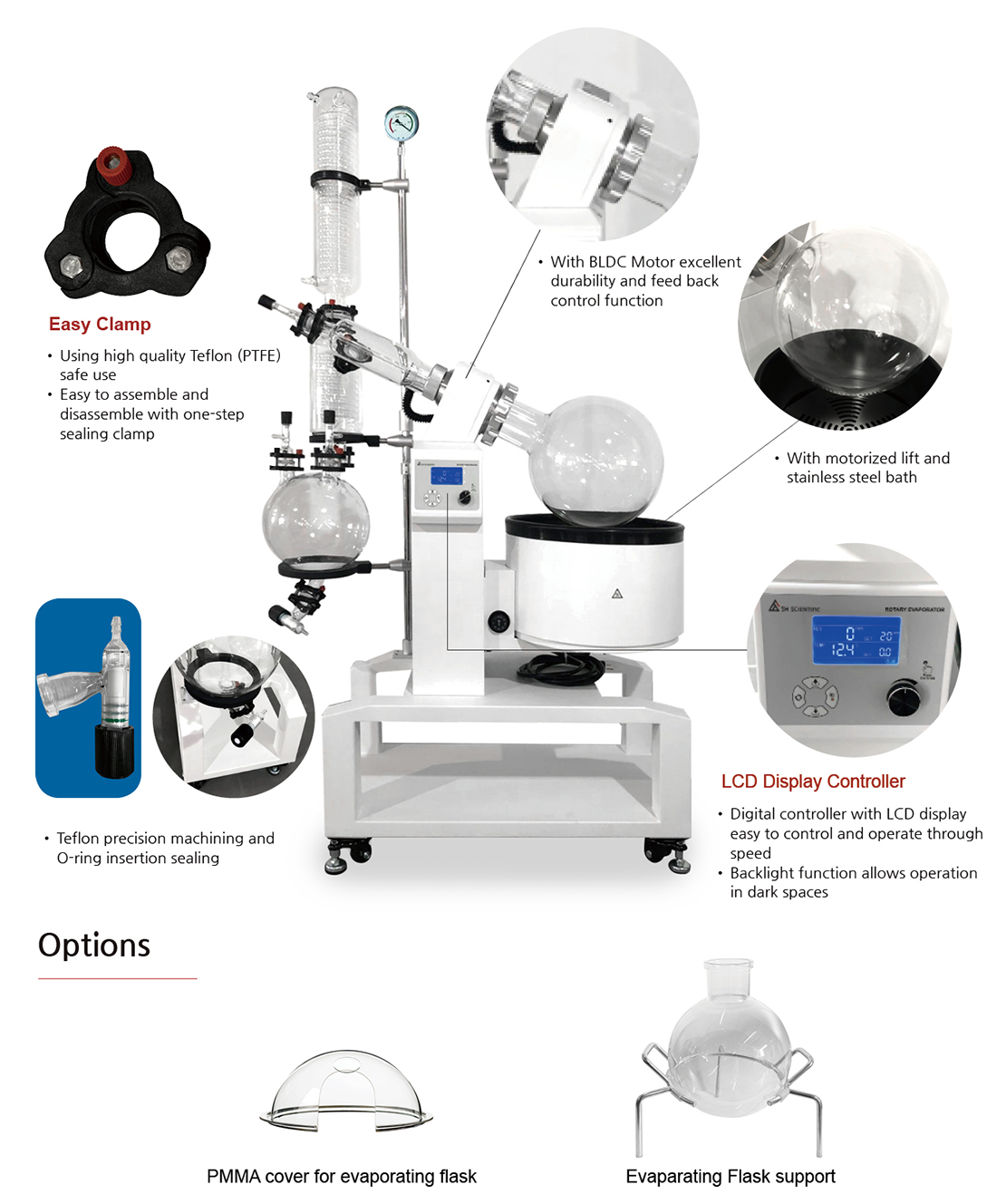

    We are proud of our own and unique vacuum sealing for all the joints of glassware to enhance the vacuum retainment.
    Save your budget with our ideally bundled package!

  •

    Model SH-RE50ETL
    Operating Ambient Temperature 5~35℃
    Glass Material GG-17 High Borosilicate
    Main Motor DC brushless
    Rotation Motor DC brushless, 250W
    Lifting Motor DC brushless, 100W
    Power (V/Hz) 220V 60HZ Single Phase
    Speed Setting Knob setting + LCD controller
    Vacuum Seal PTFE + Teflon coating
    Temperature Control PID Controller
    Cooling Area (m2) 1.75
    Rotation Speed 20~110rpm
    Bath Temp. Control Range Ambient ~ 85℃
    Maximum Vacuum Pressure < 3 torr
    Evaporating Flask Capacity 50L / 13.20 gallon
    Receiving Flask Capacity 20L /  5.28 gallon
    Condenser Style Main + Auxiliary Vertical Double Helix
    Water Bath Heating Method for Water Bath Built-in heating
    Water Bath Material Stainless steel corrosion resistant coating
     Water Bath Size 540x340mm / 21.3″x13.4″
     Lift Mode Auto lift
     Lifting Distance 250mm / 9.8″
    Heating Power 4300W
     Packing Dimensions (L) 49″ x (W) 28″ x (H) 64″
    Gross Weight 190kg / 419lbs
    Net Weight 140kg / 309lbs
    Vacuum Connection  18mm / 0.71″ Barb
    Condenser Connection  18mm / 0.71″ Barb
    Safety Over current protection, over temp. protection,
    power interruption alarm and anti-dry protection

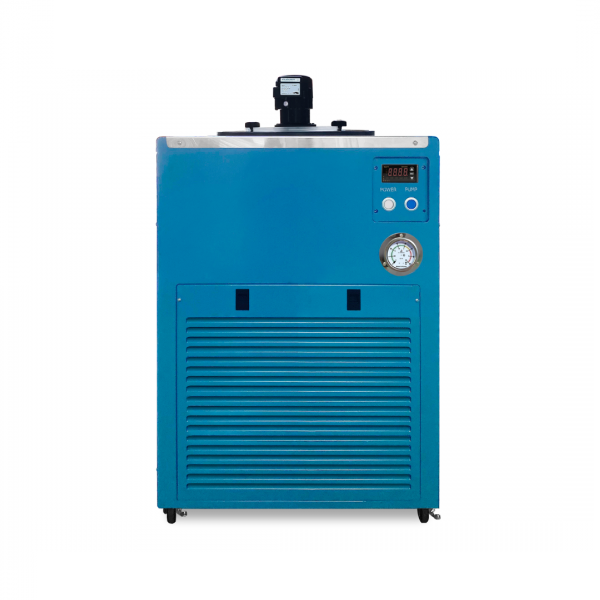

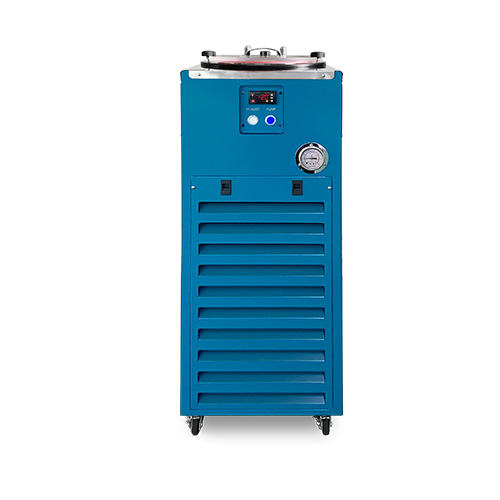

    Model SH-WB-40CDR
    Temperature Range -20℃ to ambient
    Reservoir 40L
    Max flow 18L/min
    Max Pressure 33psig
    Dimension External 540x670x1270
    Net Weight 140kg
    Material Internal Stainless steel
    Material External Steel Plate with Powder Heating Coated

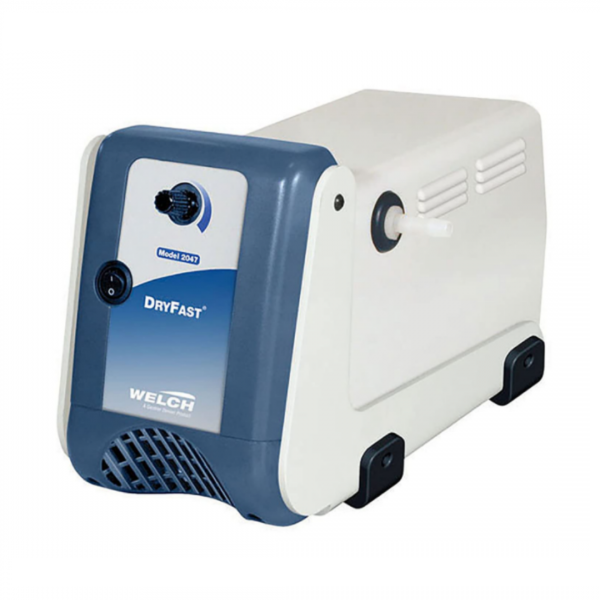

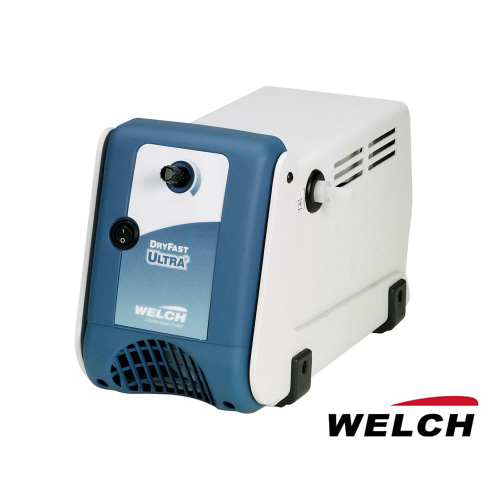

    Welch 2047B-01
    Head Configuration Dual Heads
    Wetted Parts PTFE, Kalrez®
    Free-Air Capacity (CFM) 2.5
    Free-Air Capacity (LPM) 70.8
    Free-Air Capacity (LPH) 4248
    Max Flow Rate (CFM) 2.45
    Max Flow Rate (Liters/min) 70
    Max Vacuum (in Hg) 28.5
    Max Vacuum (mbar) 48.1
    Max Vacuum (mm Hg) 36.1
    Max Vacuum (torr) 36.1
    Noise Level (dB) 53
    Port Size 1/4″ hose barb
    Max Temperature (° F) 104
    Max Temperature (° C) 40
    Duty Cycle Continuous
    Power (VAC) 115
    Power (amps) 2.65
    Power (Hz) 60
    Height (in) 8.875
    Length (in) 13.875
    Height (cm) 22.54
    Length (cm) 35.24
    Height (mm) 225.4
    Length (mm) 352.4
    Motor hp1/4
    Description Vacuum Pump, PTFE, High Flow, 70 L/min, 115V
