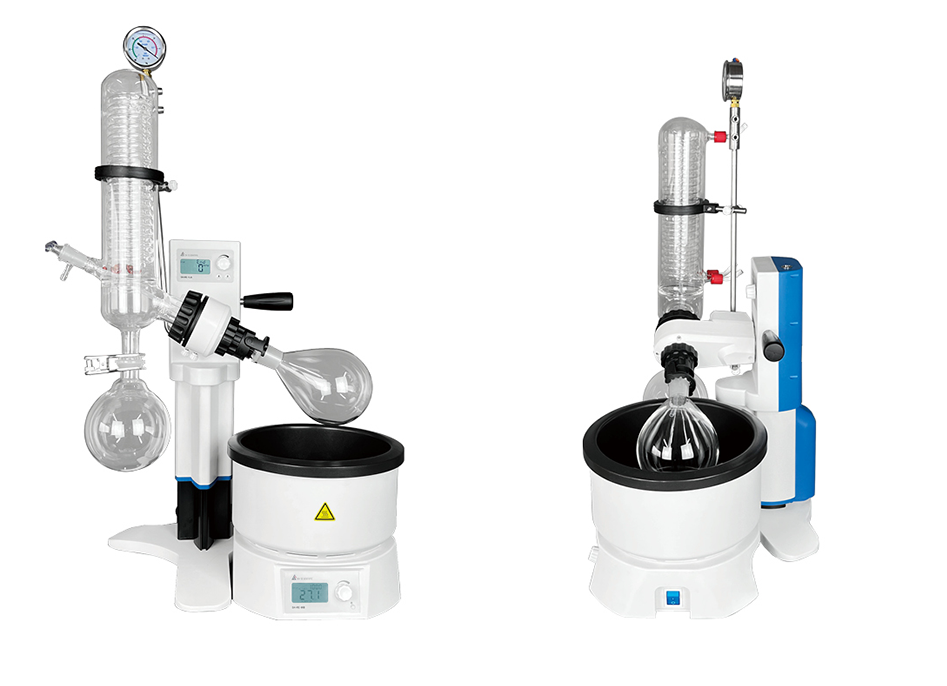

Rotary Evaporator SH-RE1LA (automatic lifting)

RT +5~99.9℃

1L

SKUSH-RE1LA (automatic lifting)

CategoriesRotary Evaporator , Rotary Evaporator

회전 농축 증발기, 농축기 Rotary Evaporator 1L
  • Specification

  • Inquiry

  • The outside

    농축기 외형도 Rotary Evaporator SH-RE-1L

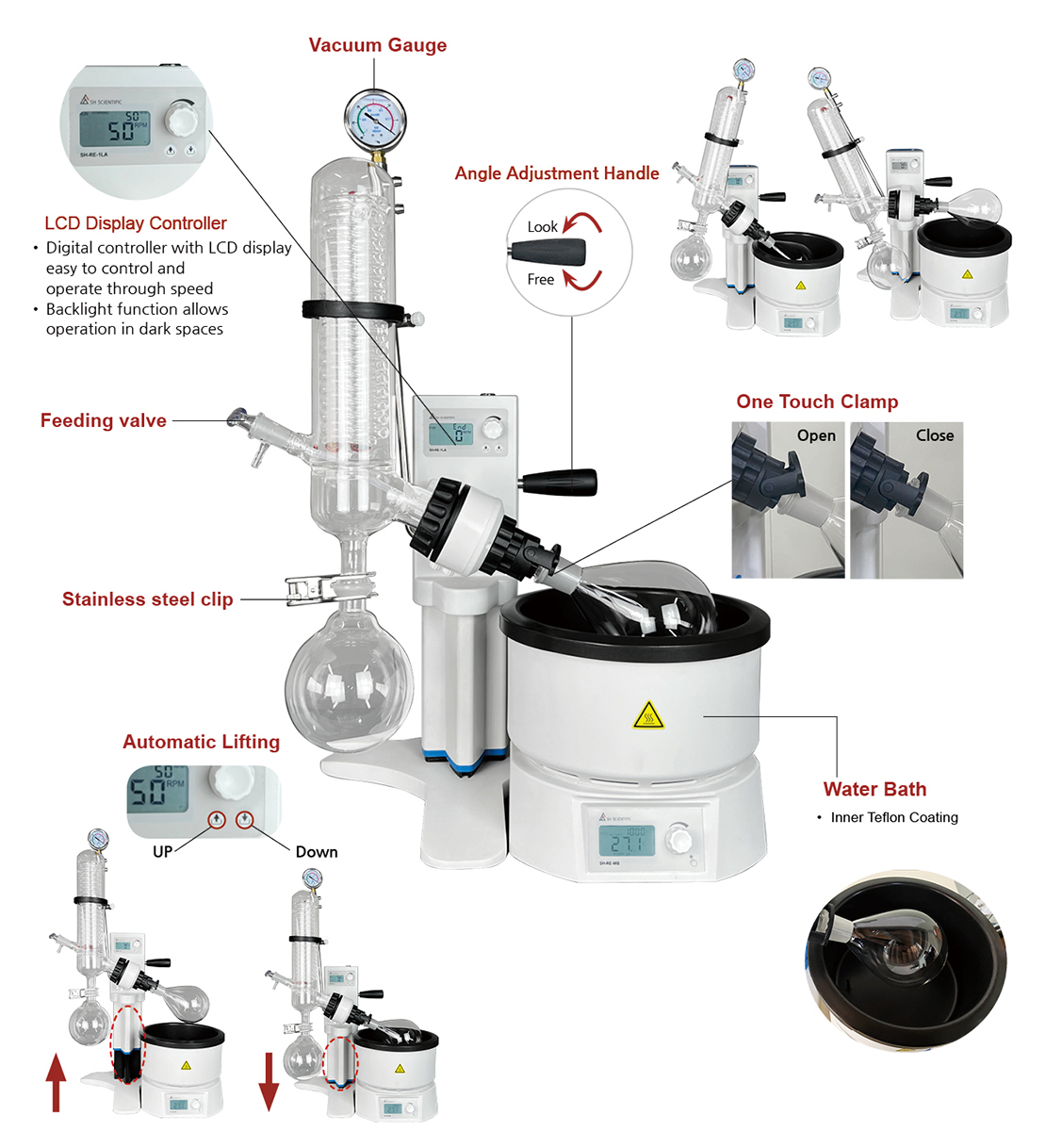

    The rotary evaporator is a fast and efficient concentrator using vacuum decompression, surface area, and the thin film evaporation.
    It's convenient as injecting raw materials with only one valve operation by the differential pressure input method.
    Low temperature (normally 40 degrees or less) evaporation using vacuum decompression can minimize the thermal deformation of the concentrate.
    The rotation of the concentration flask can maximize the evaporation by increasing the surface area and forming a thin film.
    It is suitable for separation, distillation, and concentration, and is widely used in various fields such as chemistry, biochemistry, biology, food, pharmaceutical and so on.
    Manufactured according to ANSI /UL STD.61010-1,61010-2-010.

    *The vacuum pump can be selected and used according to the purpose.

    Oil Rotary Pump :  It operates in a strong vacuum and has a large amount of evaporation,
                              which is advantageous for long-term operation.
                              Low noise operation.
                              Oil needs to be changed periodically, and the replacement cycle can be extended
                              when connected to SH-WB-5GDR(-20) COLD TRAP.
                               (Reduced by more than 4 times the normal extension period)
                               SH-VDC7 - When water evaporates
                               SH-CV20 - Used for evaporation of water and organic solvents

    Diaphragm Pump : Low vacuum road operation than oil rotary pump
                               No oil replacement required and suitable for long-term operation
                               Used for evaporation of water and organic solvents

    Water Jet Pumps : Operation on a vacuum road between the oil rotary and the diaphragm.
                              Periodic water change is required.
                              A separate chiller is required for long-term operation.
                              Recommended chiller is SH-WB-5GDR(-20) + Cooling Coil (optional)

    Pump Selection Guide
    회전 농축 증발기 Rotary Evaporator SH-RE-1L
  • Model SH-RE-1LA
    Rotation speed 20~300rpm
    Water bath temperature range RT +5~99.9℃
    Evaporating speed 22ml/min
    Ultimate vacuum 8mbar
    Speed setting LCD display with knob

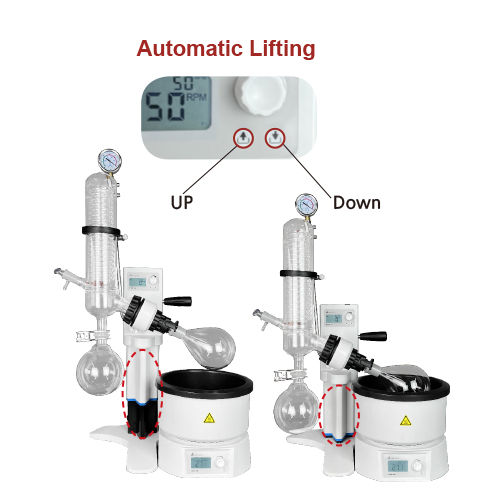

    Lifting mode Automatic
    Motor function DC brushless motor
    Main motor DC brushless DC brushless motor

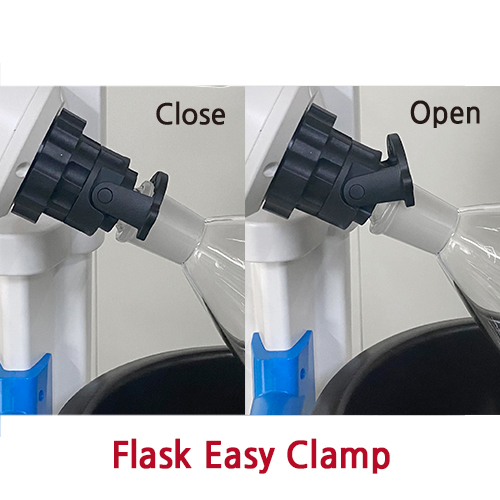

    Condenser Snake Condensate area 0.15㎡, 1L Rotary Bottle, 1L Collecting Bottle, TS29/38 Bottle Clamp, Ball Face S35/20
    Vacuum Seal PTFE and Teflon Coating
    Interior Water bath size(DxH) 230x130mm/9.05x5.12"
    Water bath material Stainless steel Corrosion resistant coating
    Heating power 220V 50/60HZ 1000W
    Temperature range 5~35℃
    Electrical input DC24V 2.5W
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
