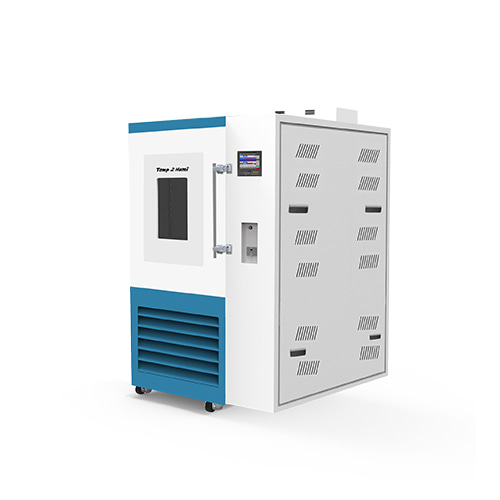

Temp Control Climate Chamber SH-CH-408U1

Temp Control Climate Chamber

(Temp range: ambient -25℃ ~ 120℃)

-  -20℃ Cool-Down

- Excellent temperature uniformity and accuracy
- Non-dew condensation observation window
- Powerful computer interface function
- Multiple computer interface for operation state
- SD Card installation allows real time recording
- Safety assurance with C.E conformity




  • Specification

  • Inquiry

  • A Climate Chamber (Temp Control Model) is used for testing material behaviors under constant temperature conditions. This unit has a powerful cooling system, interface functions. It also contains a non-dew observation window and
    an economic heating up function.



    - Excellent temperature uniformity and accuracy

    - Non-dew condensation observation window with LED lamp

    - Powerful computer interface function

    - Multiple display options for operate state

    - SD Card installation allows real-time recording

    - Leveling casters

    - Door sealing gasket

    - Port hole for data cable

    - Safety assurance with CE conformity

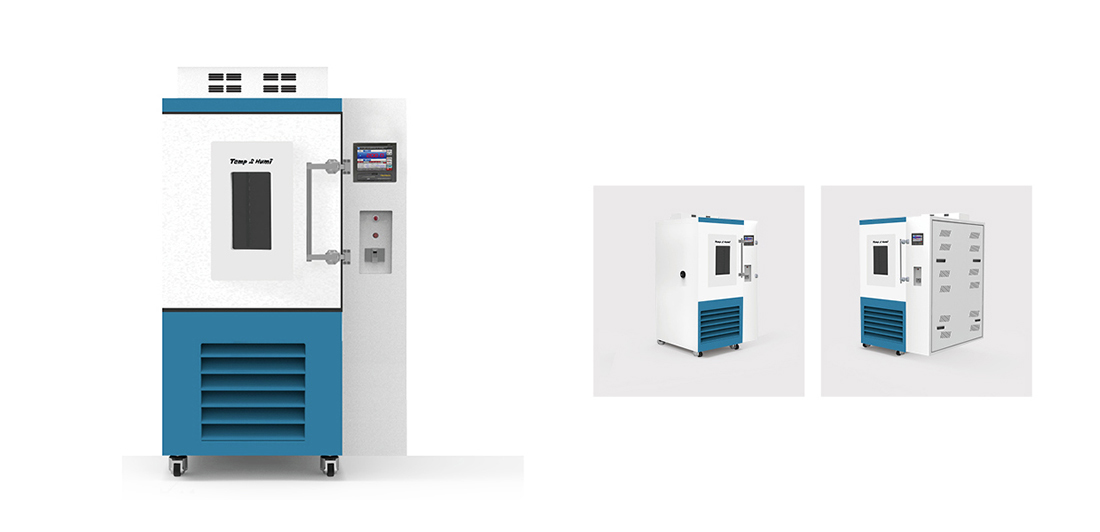

    Shelves details




  • ModelSH-CH-408U1
    Temp Range  Ambient -45℃ ~ 120℃ (Ambient -55℉ ~ 248℉) (Low limit -25℃)
    Dimension Internal
    (W×D×H)
    850x600x800mm
    33.46x23.62x31.50''
    Dimension External
    (W×D×H)
    1270x1095x1805mm
    50 .00x43.11x71.06''
    Weight410 Kg
    Capa408 L
    Hepa Capa4 KW
    Temp Accuracy & Stability±0.1
     Temp Uniformity±0.5
    Cool Down Time23℃ ~ -20℃ (73.4℉ ~ -4℉) About 40min
    Heating Up Time-20℃ ~ 100℃ (-4℉ ~ 212℉) About 40min
    Temp ControllerMicroprocessor Programmable Controller Touch Screen Type
    Material InternalStainless Steel
     Material ExternalSteel Plate with Powder Heating Coated
     Shelves2 Supplied (24 Maximum)

     Electric Requirements

    230V, 50/60Hz, 1Φ



    27.0 A

     Cat. No. 50Hz(60Hz)CH408U1230-50 (CH408U1230-60)

     Electrical Requirements

    230V, 50/60Hz, 3Φ

    16 A


      Cat. No. 50Hz(60Hz)CH408U1230-50-3 (CH408U1230-60-3)
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
