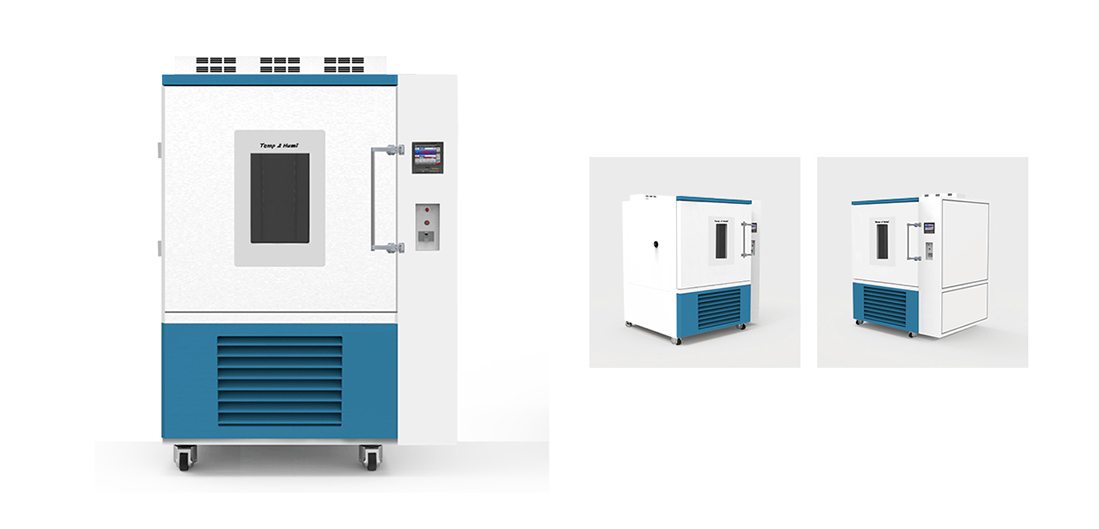

Temp Control Climate Chamber SH-CH-800U2

Temp Control Climate Chamber

(Temp range: ambient -70℃ ~ 120℃)

-  -40℃ Cool-Down

- Excellent temperature uniformity and accuracy
- Non-dew condensation observation window
- Powerful computer interface function
- Multiple computer interface for operation state
- SD Card installation allows real time recording
- Safety assurance with C.E conformity





  • Specification

  • Inquiry

  • A Climate Chamber (Temp Control Model) is used for testing material behaviors under constant temperature conditions. This unit has a powerful cooling system, interface functions. It also contains a non-dew observation window and
    an economic heating up function.

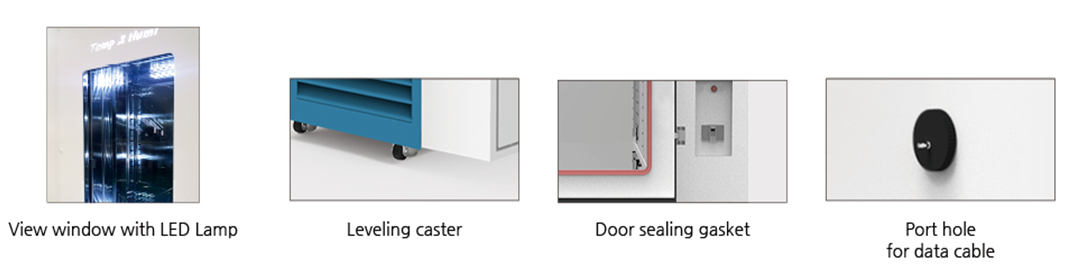

    - Excellent temperature uniformity and accuracy

    - Non-dew condensation observation window with LED lamp

    - Powerful computer interface function

    - Multiple display options for operate state

    - SD Card installation allows real-time recording

    - Leveling casters

    - Door sealing gasket

    - Port hole for data cable

    - Safety assurance with CE conformity

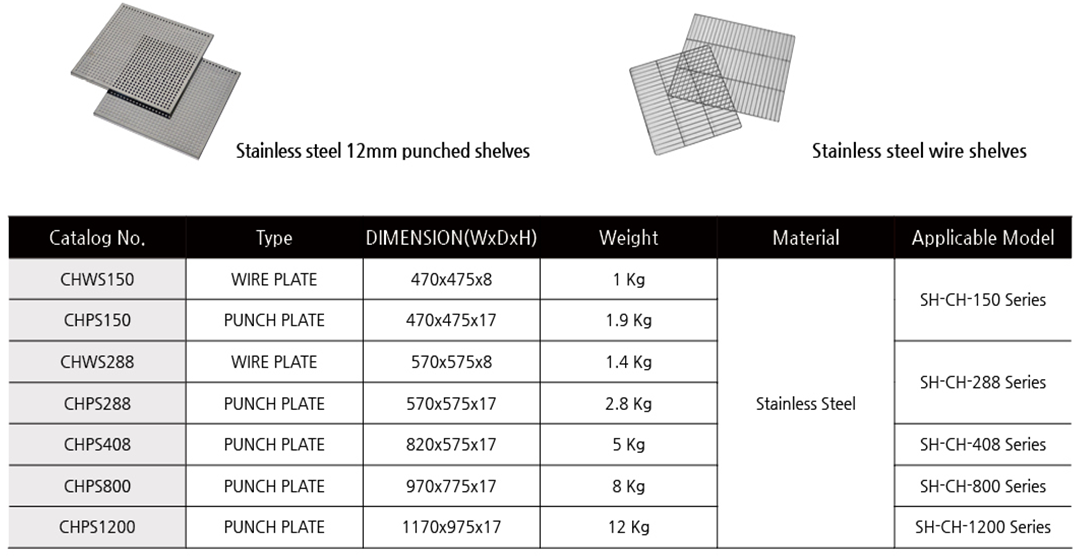

    Shelves details




  • ModelSH-CH-800U2
    Temp RangeAmbient -70℃ ~ 120℃(Ambient -10℉~248℉) (Low limit -50℃)
    Dimension Internal
    (W×D×H)
    1000x800x1000mm
    39.37x31.50x39.37''
    Dimension External
    (W×D×H)
    1590x1325x2100mm
    62.60x52.16x82.67''
    Weight540 Kg
    Capa800 L
    Hepa Capa8 KW
    Temp Accuracy & Stability±0.1
     Temp Uniformity±0.5
    Cool Down Time23℃ ~ -40℃ (73.4℉~-40℉) About 40min
    Heating Up Time-40℃ ~ 100℃ (-40℉~212℉) About 40min
    Temp ControllerMicroprocessor Programmable Controller Touch Screen Type
    Material InternalStainless Steel
     Material ExternalSteel Plate with Powder Heating Coated
     Shelves2 Supplied (31 Maximum)

     Electric Requirements

    230V, 50/60Hz, 1Φ



    33 A

     Cat. No. 50Hz(60Hz)CH800U2230-50-3 (CH800U2230-60-3)

     Electrical Requirements

    230V, 50/60Hz, 3Φ




    19.1 A



      Cat. No. 50Hz(60Hz) CH-800U2380-50-3 (CH-800U2380-60-3)
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer
