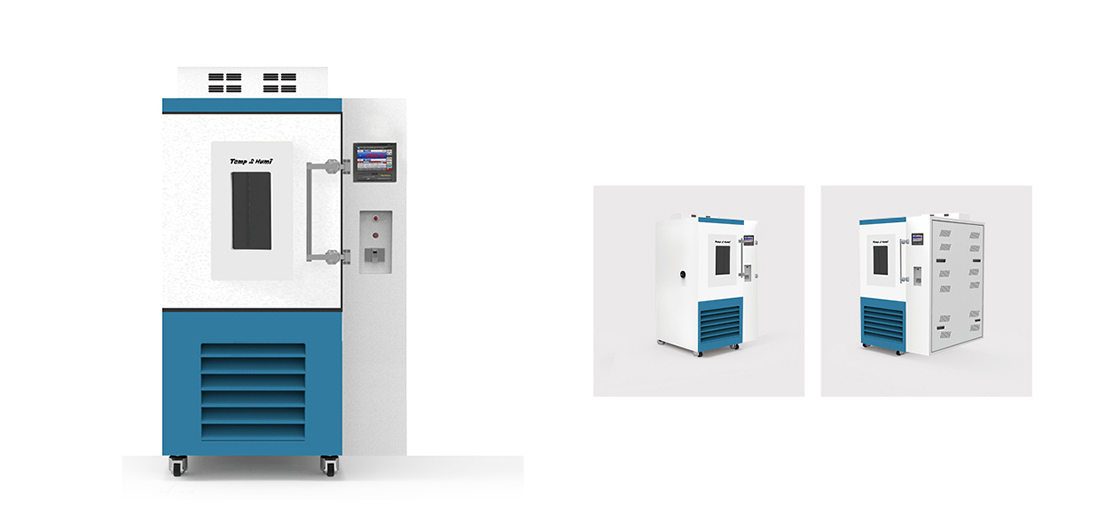

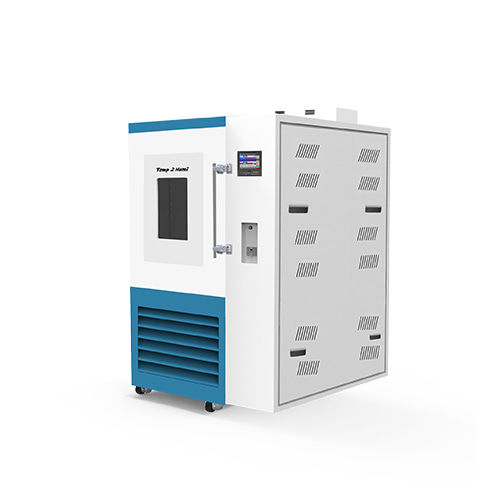

Temp Control Climate Chamber SH-CH-408U2

Temp Control Climate Chamber

(Temp range: ambient -70℃ ~ 120℃)

-  -40℃ Cool-Down

- Excellent temperature uniformity and accuracy
- Non-dew condensation observation window
- Powerful computer interface function
- Multiple computer interface for operation state
- SD Card installation allows real time recording
- Safety assurance with C.E conformity




  • Specification

  • Inquiry

  • A Climate Chamber (Temp Control Model) is used for testing material behaviors under constant temperature conditions. This unit has a powerful cooling system, interface functions. It also contains a non-dew observation window and
    an economic heating up function.



    - Excellent temperature uniformity and accuracy

    - Non-dew condensation observation window with LED lamp

    - Powerful computer interface function

    - Multiple display options for operate state

    - SD Card installation allows real-time recording

    - Leveling casters

    - Door sealing gasket

    - Port hole for data cable

    - Safety assurance with CE conformity





    Shelves details




  • ModelSH-CH-408U2
    Temp RangeAmbient -70℃ ~ 120℃(Ambient -10℉~248℉) (Low limit -50℃)
    Dimension Internal
    (W×D×H)
    850x600x800mm
    33.46x23.62x31.50''
    Dimension External
    (W×D×H)
    1270x1095x1845mm
    50.00x43.11x72.64''
    Weight430 Kg
    Capa408 L
    Hepa Capa5 KW
    Temp Accuracy & Stability±0.1
     Temp Uniformity±0.5
    Cool Down Time23℃ ~ -40℃ (73.4℉~-40℉) About 40min
    Heating Up Time-40℃ ~ 100℃ (-40℉~212℉) About 40min
    Temp ControllerMicroprocessor Programmable Controller Touch Screen Type
    Material InternalStainless Steel
     Material ExternalSteel Plate with Powder Heating Coated
     Shelves 2 Supplied (17 Maximum)

     Electric Requirements

    230V, 50/60Hz, 1Φ



    36.0 A

     Cat. No. 50Hz(60Hz)CH408U2230-50 (CH408U2230-60)

     Electrical Requirements

    230V, 50/60Hz, 3Φ



    21.0 A

      Cat. No. 50Hz(60Hz)CH408U2230-50-3 (CH408U2230-60-3)
