Product List

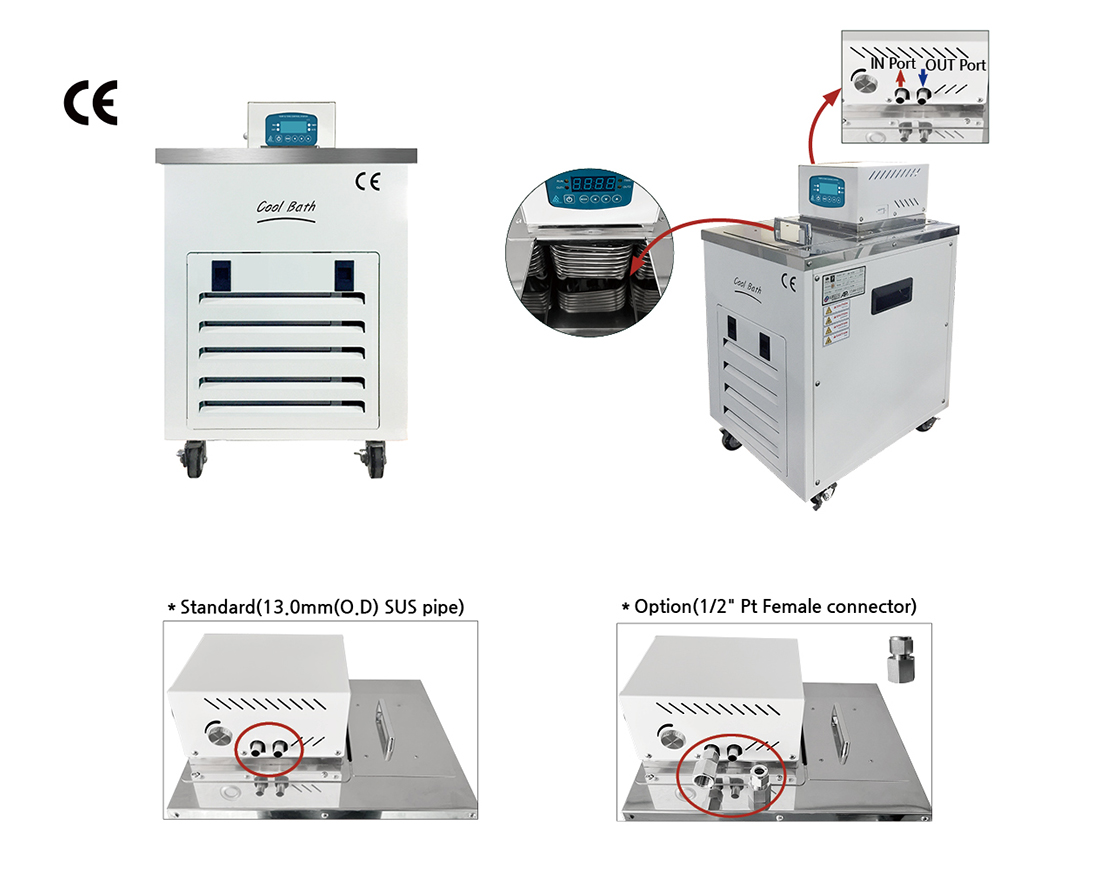

Refrigerated Circulating Bath SH-WB-13CDR

-20℃~150℃

13(Liter)

저온순환항온수조 6.8L
  • Specification

  • Inquiry

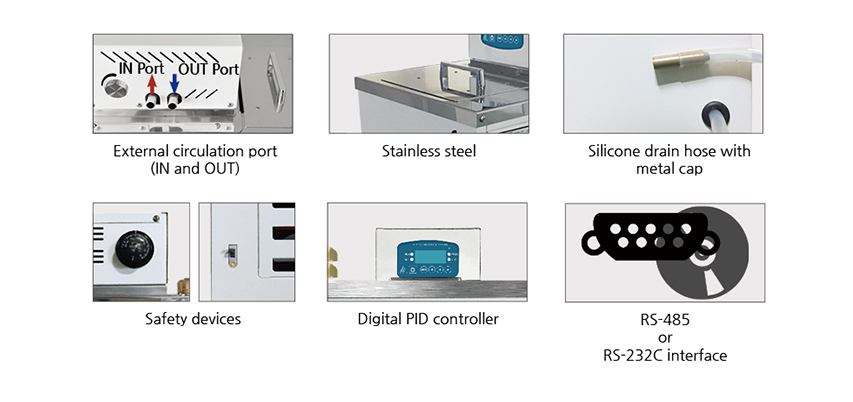

    • • Accessory
    • -Bath Lid
      • Option
    • -RS-485 interface
    • -RS-232C interface
    • -1/2" Pt Female connector
      • Safety Device
    • -Automatic reset function incoming power cut
    • -Buzzer on when set time arrived
    • -Electric leakage circuit breaker
    • -Over temperature alarm
    • -Refrigerator over load protection
    • -High temp limit controller

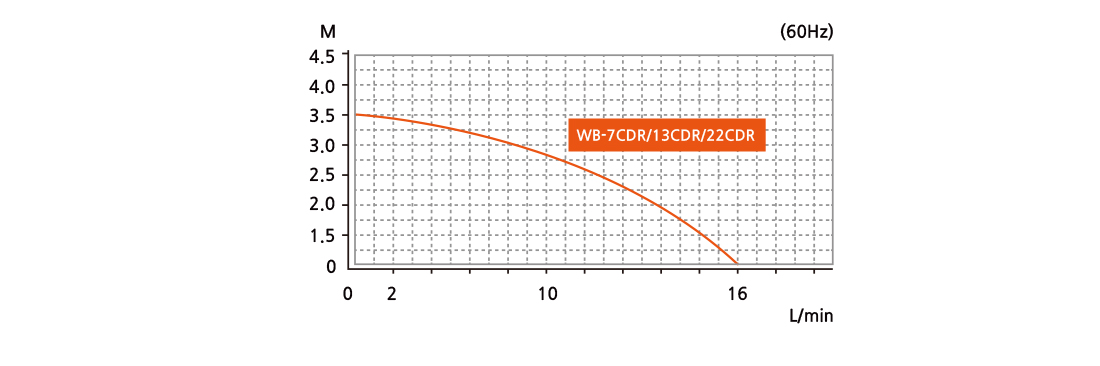

    Recirculating pump curve
  • Model SH-WB-13CDR
    Temp Range Ambient   -    40℃ to 150℃ (Low Limit -20℃) (Cooling and Heating)
    Ambient -64℉ to 302℉
    Temp Controller Microprocessor membrane Digital PID Controller
    Time Range 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter
    Capa 13 L
    Recirculating
    Pump
    Flow Control 2 ~16 L/min (tested with clean water at 20℃)
    Max Head
    3.5 meter (tested with clean water at 20℃)
    Max pressure 5.1 psig (tested with clean water at 20℃)

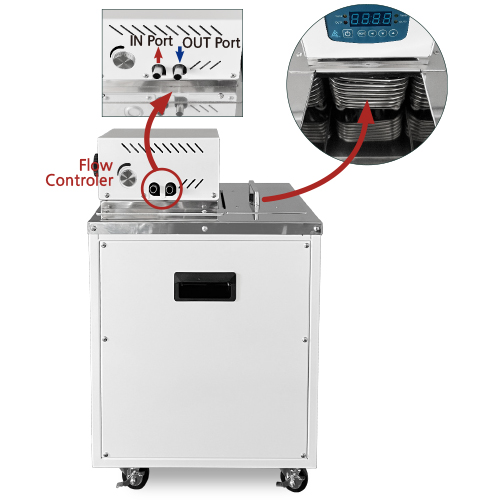

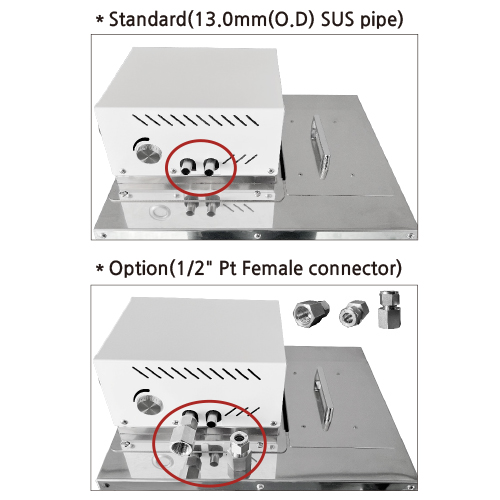

    In/out port 13.0 mm (O.D) / Stainless Steel pipe or 1/2" Pt Female connector (*option)
    Heater Capa 1.8 KW
    Dimension Internal
    (W×D×H )
    250x350x150mm
    9.84x13.78x5.90''
    Dimension External
    (W×D×H )
    440x455x645mm
    17.32x17.91x25.39''
    Top Open
    (W×D)
    250x165mm
    9.84x6.50''
    Net weight 53 Kg
    Material Internal Stainless Steel
    Material External Steel Plate With Powder Heating Coated
    Noise (dB)
    43
    Electrical Requirements
    230V ,50Hz, 1Φ
    7.8 A
    Cat. No. WB13CDR230-50
    Electrical Requirements
    230V ,60Hz, 1Φ
    7.8 A
    Cat. No. WB13CDR230-60
  • SH Scientific is an Advanced Laboratory Equipment Manufacturer

    If you have any questionsAsk me anything.
