Product List

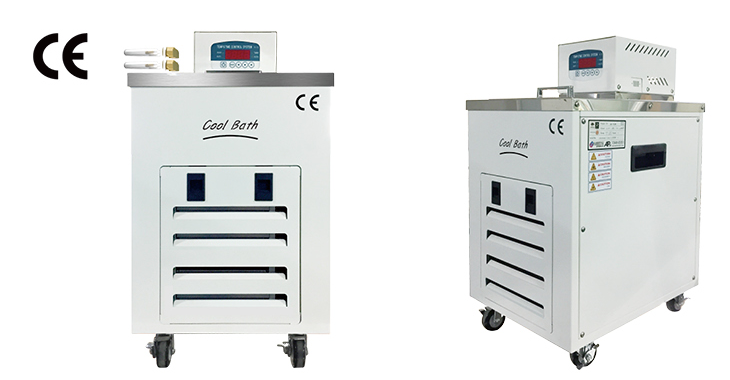

Refrigerated Circulating Bath SH-WB-48CDR

Refrigerated Circulating Bath

SH-WB-48CDR

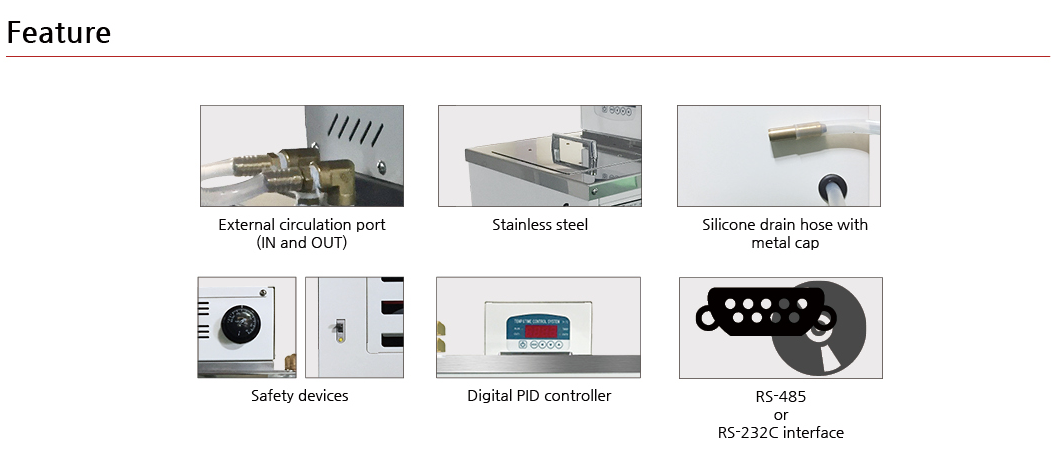

- Excellent temperature accuracy by Digital Control

- Circulation Motor allows excellent temperature distribution

- External circulation port (possible to connect with an external device)

- Stainless Steel internal bath

- Safety assurance with C.E. conformity

  • Specification

  • Inquiry

  • • Accessory



    - Bath Lid




    • Option
    - RS-485 interface

    - RS-232C interface

    - 40℃ Cool Down System


    • Safety Device

    - Automatic reset function incoming power cut
    - Buzzer on when set time arrived
    - Electric leakage circuit breaker

    - Over temperature protection

    - Refrigerator over load protection


    A Refrigerated Circulating Bath is a version of the General Purpose Water Bath that comes with a cooling function.

    It is used in keeping materials cooled over a certain set period. This application can be actualized in cooking, scientific researches and other
    related industries.

  • Model

    SH-WB-48CDR
    Temp Range

    Ambient -40℃ to 65℃ (Low Limit -20℃)

    Ambient -64℉ to 149℉

    Temp Controller
    Microprocessor membrane Digital PID Controller
     Time Range00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter
    Capa48L

    Recirculating Pump

    (Max flow)

    20 L / Min


     Heater Capa3.2 KW

    Dimension External

    (W×D×H )

    600x400x200mm

    23.62x15.67x17.91''

    Dimension External

    (W×D×H )

    725x755x965mm

    28.54x29.72x38''

     Top Open

    (WxD)

    600x400mm

    23.62x15.75''

    Net Weight115 Kg
    Material InternalStainless Steel
    Material ExternalSteel Plate with Powder Heating Coated
     Electrical Requirements
    230v ,50Hz, 1Φ

    13.9 A

    Cat No.

    WB48CDR230-50

     Electrical Requirements
    230v ,50/60Hz, 1Φ

    13.9 A
    Cat No.

    WB48CDR230-60
